Nokia N9 Service Manual

Nokia N9 (RM-696)
L1L2 Service Manual
9
Co nf id e nt ial | Cop yright © 2011 Nokia | A ll rights reserved
V e rs io n 5 .0

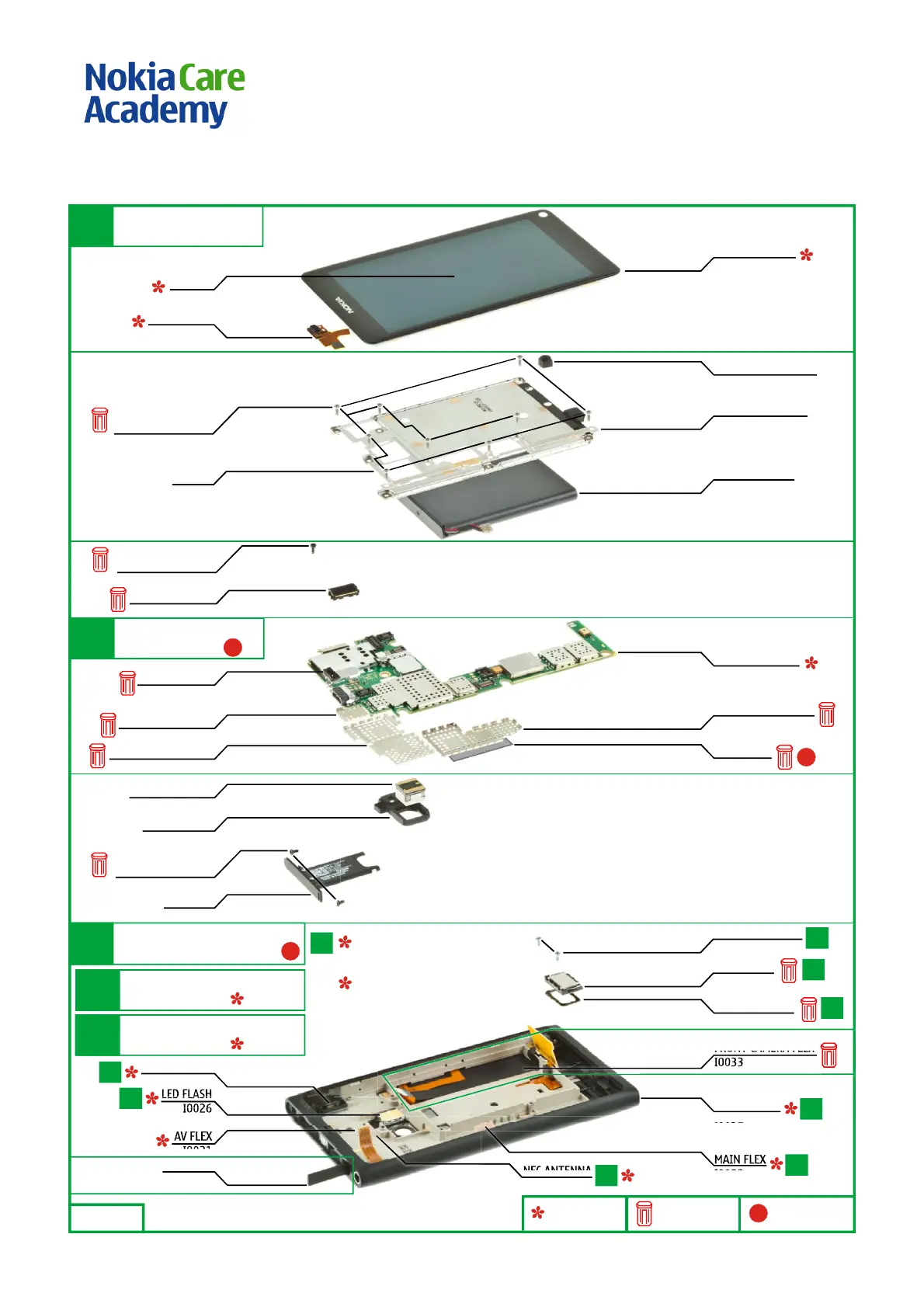

6. EXPLODED VIEW
Ver. 4.0
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
L3
L3
L3
LIGHT SWAP PACKAGE
(I0011 - I0016)
A2
BOTTOM FRAME ASSEMBLY
(I0023 - I0027)
A4
MAIN ANTENNA ASSEMBLY
(I0028 - I0031)
A5
L3
WINDOW FRAME
I0005
DISPLAY
I0004
SENSOR FLEX
I0032
SCREW TORX+ SIZE 4
M1.4 X 3.8
I0006
CHASSIS SIDE HOOK
I0008
BV-5JW BATTERY
I0010
FRONT CAMERA BOOT
I0007
CHASSIS
I0009
SCREW TORX+ SIZE 5
M1.2 X 3.2
I0019
EARPIECE + MESH
I0017
EARPIECE BOOT
I0012
NFC SHIELDING LID
I0014
OMAP SHIELDING LID
I0015
RAPU SHIELDING LID
I0013
TYPE LABEL
I0016
LIGHT SWAP PWB
I0011
CAMERA MODULE
I0018
CAMERA BOOT
I0020
SIM DOOR
I0002
SCREW TORX+ SIZE 4
M1.4 X 3.6
I0003
SCREW M1.2 X 3.1
I0027
PLASTIC BODY
I0031
IHF SPEAKER
I0029
SPEAKER GASKET
I0030
FRONT CAMERA FLEX
I0033
AV FLEX
I0021
LED FLASH
I0026
USB DOOR
I0001
MAIN FLEX
I0023
WLAN/BLUETOOTH
ANTENNA FLEX
I0022
MAIN ANTENNA FLEX
I0028
NFC ANTENNA
I0024
GPS ANTENNA
I0025
A5
A5
PLASTIC BODY ASSEMBLY
(I0021 - I0022 , A4 , A5)
A3
DISPLAY ASSEMBLY
(I0004, I0005, I0032)
A1
A4
A4
A5
A5
A4
A4
A4
