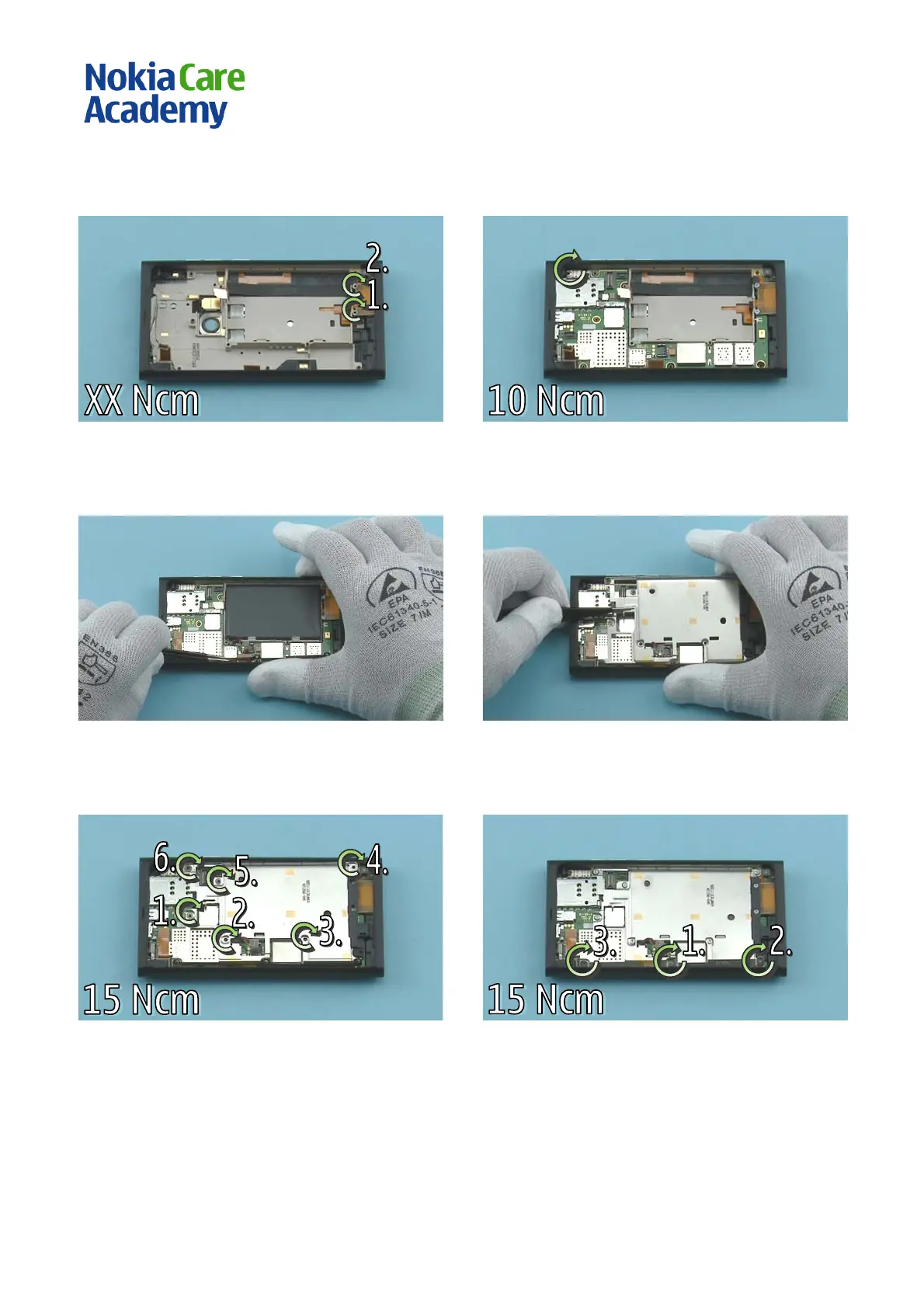

10. ASSEMBLY HINTS
1) Tighten the two Phillips size 00 screws to the
torque of XX Ncm. Torque information not available.
Will be updated later.
2) Tighten the TORX+ size 5 screw to the torque of 10
Ncm.
3) Insert the CHASSI S SI DE H OOK to its place with the
tweezers but leave it open.
4) Insert the CHASSI S to its place under the CHASSIS
SIDE HOOK with the tweezers.
5) Tighten the six TORX+ size 4 screws to the torque
of 15 Ncm.
6) Tighten the three TORX+ size 4 screws to the
torque of 15 Ncm.
