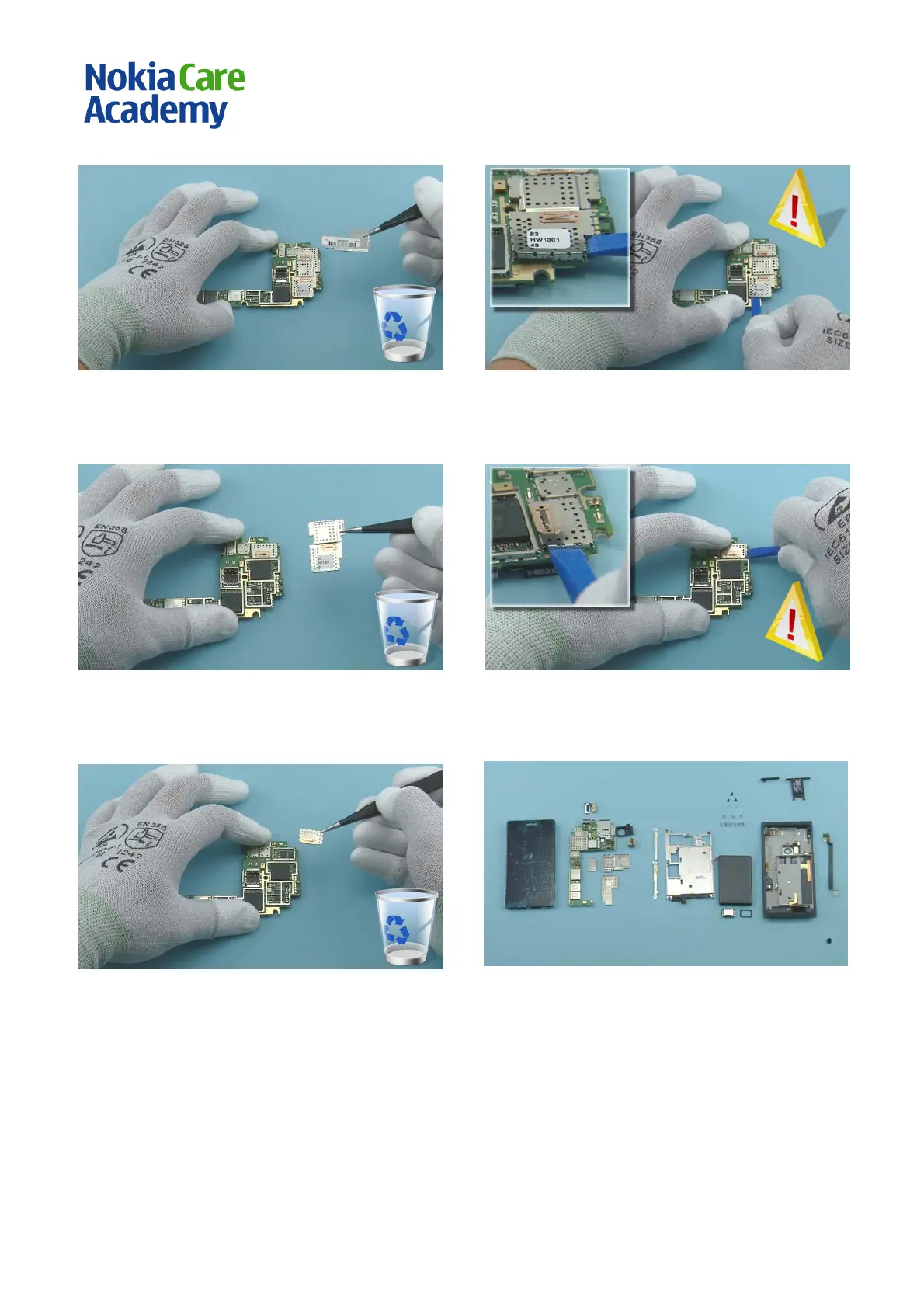

49) Remove the RAPU SHIELDING LID with the
tweezers. Do not use it again. Discard it.
50) Lever out the OMAP SHIELDING LID with the SS-93.
Be careful not to damage any nearby components.
51) Remove the OMAP SHIELDING LID with the
tweezers. Do not use it again. Discard it.
52) Lever out the NFC SHI ELDING LID with the SS-93.
Be careful not to damage any nearby components.
53) Remove the NFC SHIELDING LID with the
tweezers. Do not use it again. Discard it.
54) The Nokia N9 disassembly is now complete.
-END OF DISASSEMBLY-
