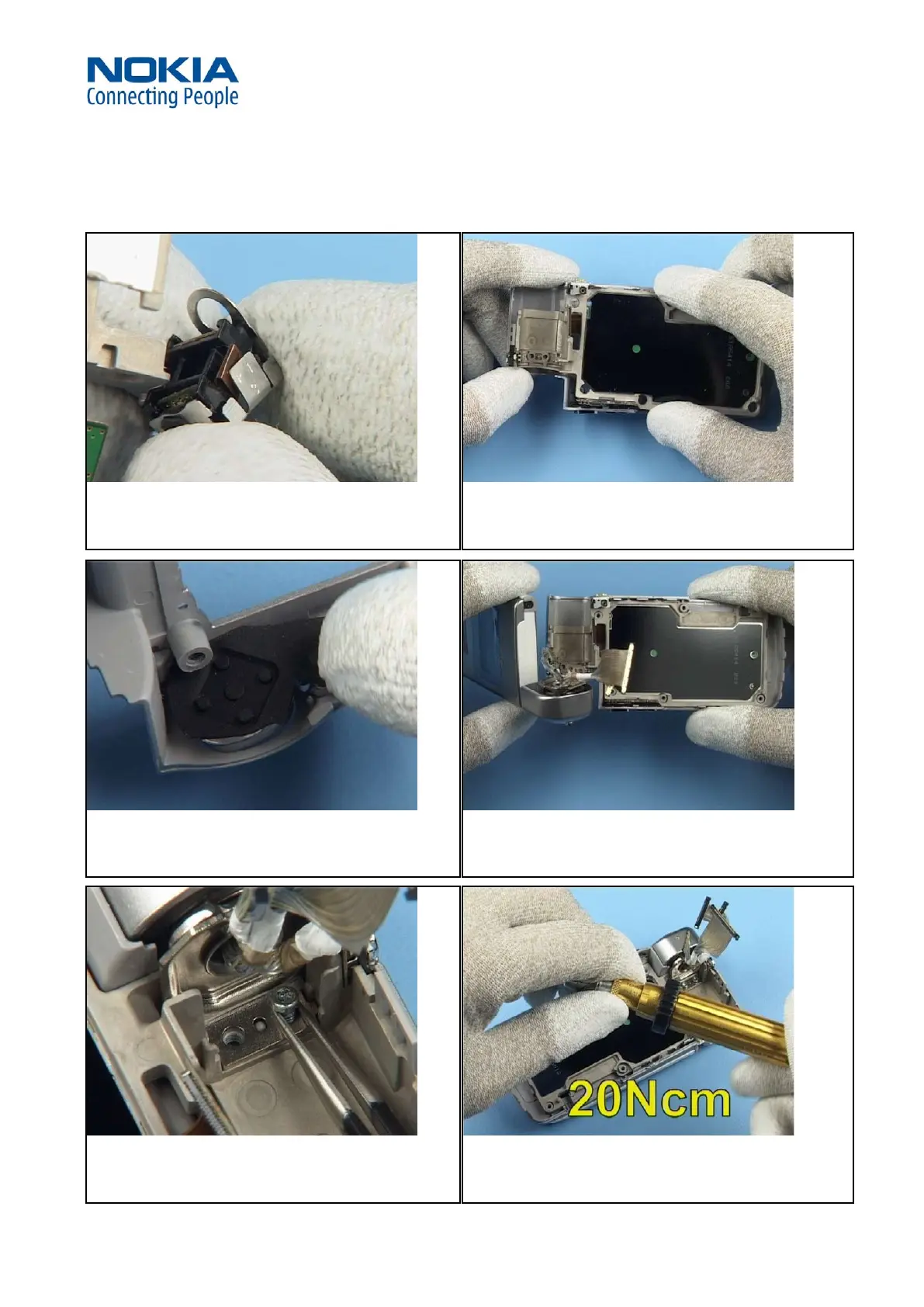

LOWER BLOCK - ASSEMBLY10.
1. Place the Mic Clip, do not touch the microphones.
2. Insert the Side Keymat.
3. Place the UI Frame into the Grip A-Cover.
4. Bring the parts in position shown.
5. Insert the new torx size 6 screws.
6. Set the correct torque.
