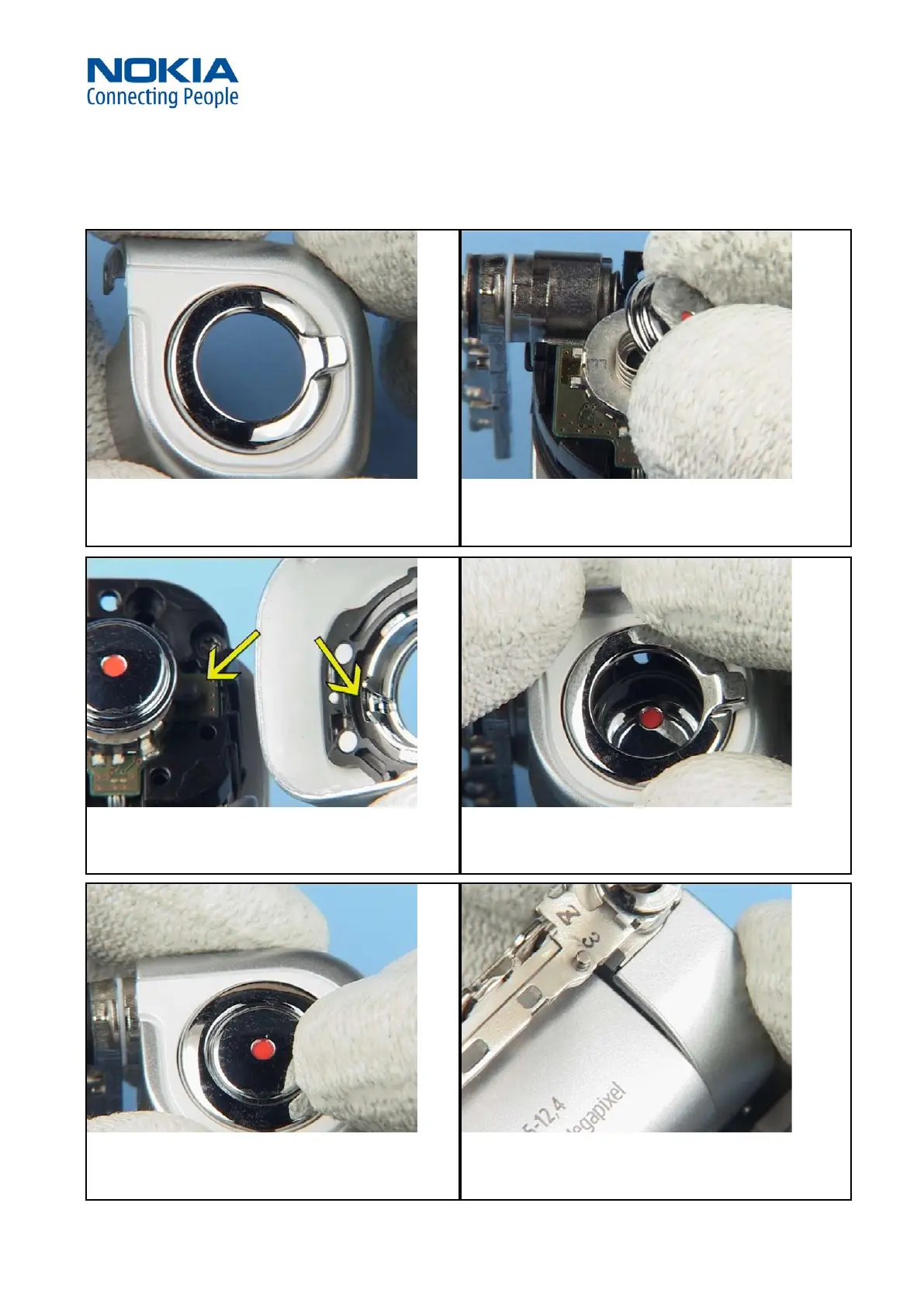

1. Align the Zoom Key Lever into the Capture Key Cover Module
as shown.
2. Place the spring and the Capture Key Button.
3. Set the recess of the Zoom Key Lever in position shown.
4. Position the Capture Key Cover Module and press it down
quickly.
5. Check the functionality of the Zoom Key Lever before
continue.
6. Now push the cover into the correct position.
UPPER BLOCK - ASSEMBLY8.

Nokia N93 Specifications

General

Zoom capability	3x
Front camera type	Single camera
Rear camera resolution	2048 x 1536 pixels
Video capture resolution (max)	640 x 480 pixels
2G standards	EDGE, GPRS
Ringer type	Polyphonic
Panel type	TFT
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Display number of colors	262144 colors
Internal memory	50 MB
Compatible memory cards	miniSD
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Bundled software	Adobe Premiere Elements 2.0
Talk time (2G)	5.1 h
Battery capacity	1100 mAh
Standby time (2G)	240 h
Product color	Black

Weight and Dimensions

Depth	28.2 mm
Width	55.5 mm
Height	118.2 mm
Weight	180 g
