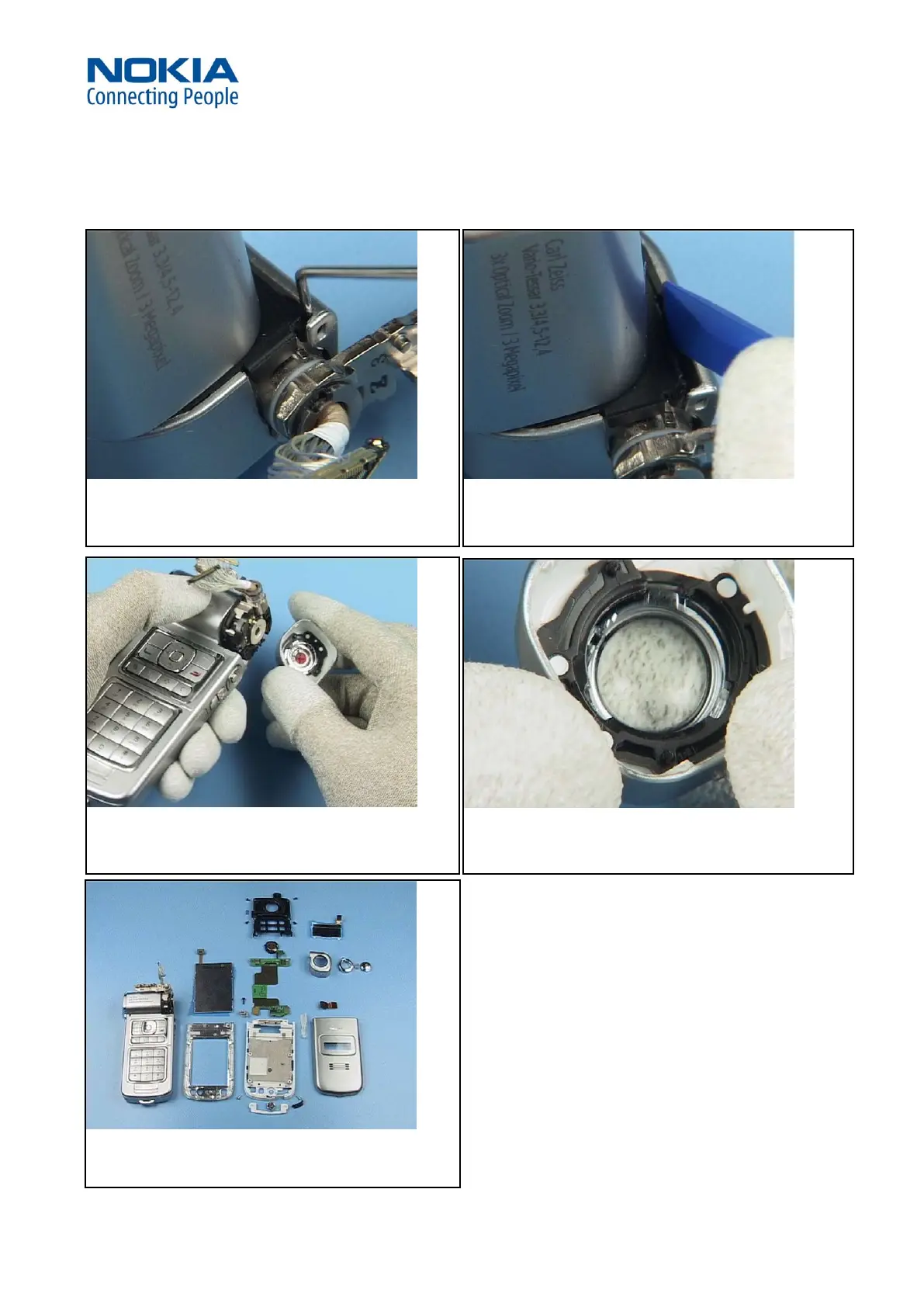

37. Release the latches of the Capture Key Cover Module.
38. Use the SS-93 to unlock all snaps.
39. Now the Capture Key Cover Module can be removed easily.
40. Remove the Capture Key Button, Spring and the Zoom Key
Lever.
41. Now the disassembly procedure is complete.
