Nokia N93 Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
05.Nov.2007
10
Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 7.0
MGR
Page (50)

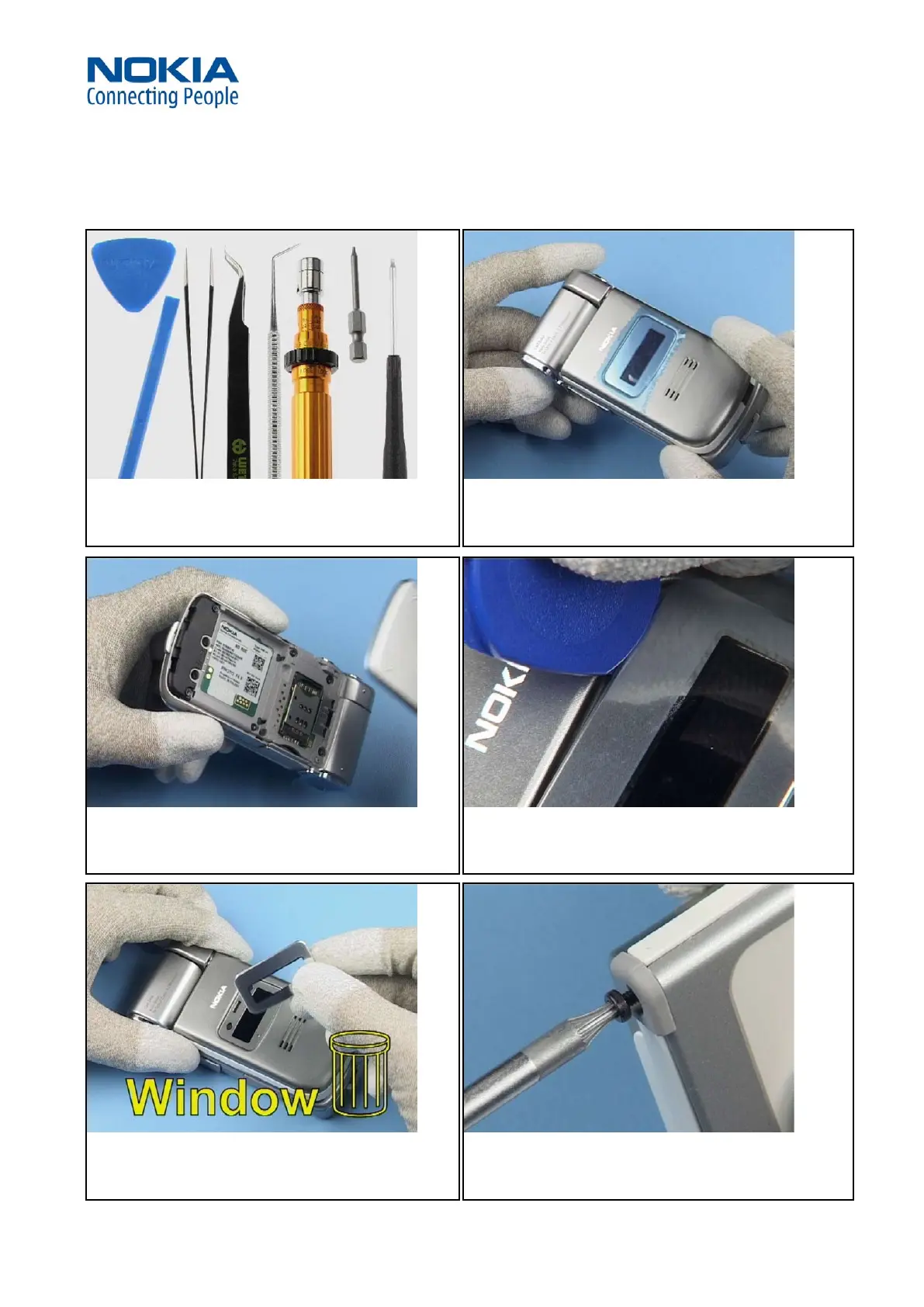

UPPER BLOCK - DISASSEMBLY7.
1. Needed tools: The SRT-6, the SS-93, metal tweezers, angled
tweezers, a dental pic, a torx driver with a torx plus size 6 bit,
and a torx plus driver size 6.
2. Cover all windows with a plastic lm.
3. Ensure that no battery is inserted before going on.
4. Pry open the Sub Display Window with the SRT-6.
5. Do not use it again.
6. Undo the screw and remove it.
