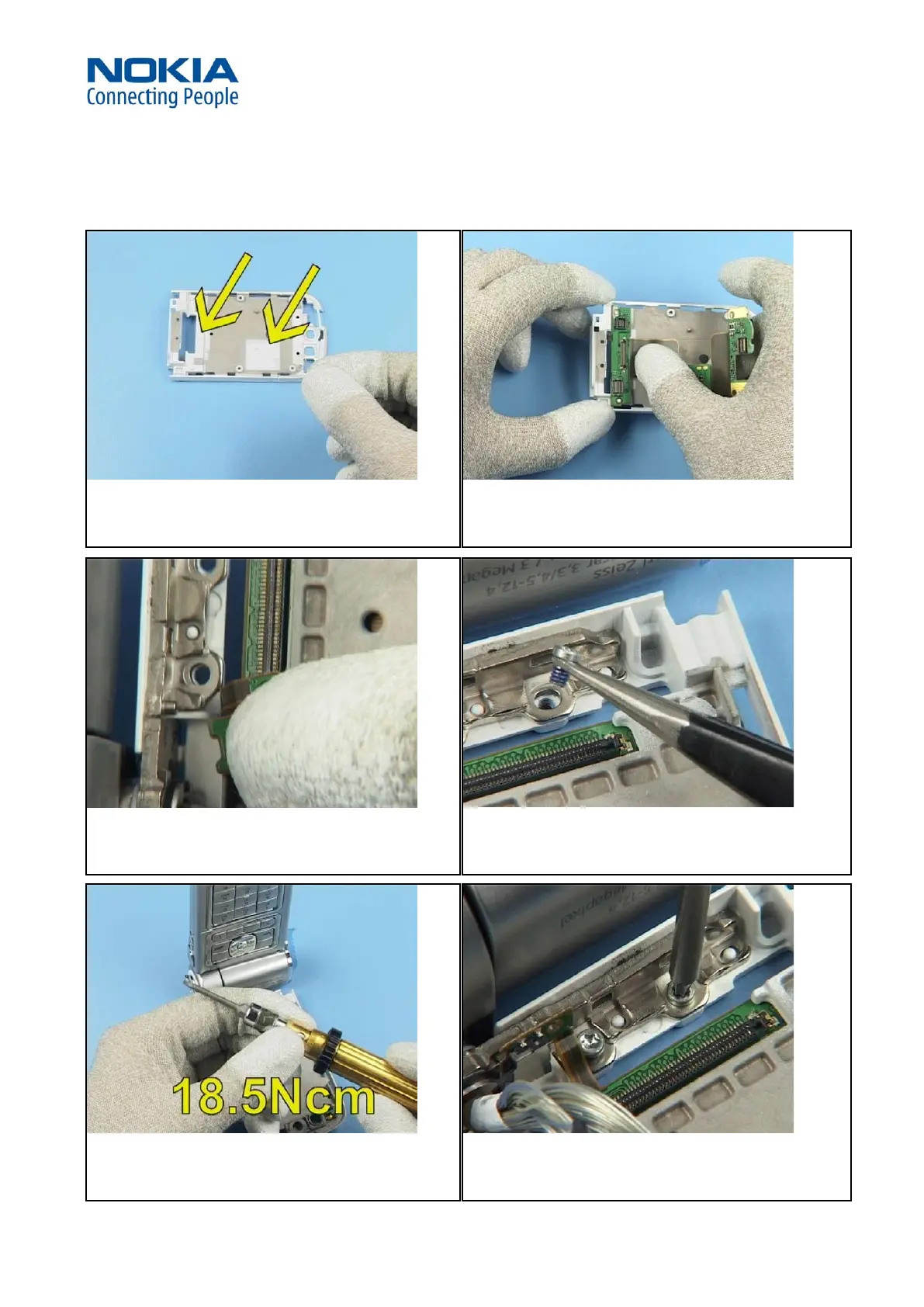

7. Use new adhesives before placing the Flip PWB Module.
8. Align the Flip PWB Module to the guides and smooth it down
evenly.
9. Hold the switch in position shown and align the hinge over
the Flip B-Cover.
10. Insert two new screws.
11. Fit the torx size 6 bit and set the correct torque.
12. Apply the torque to both screws.
