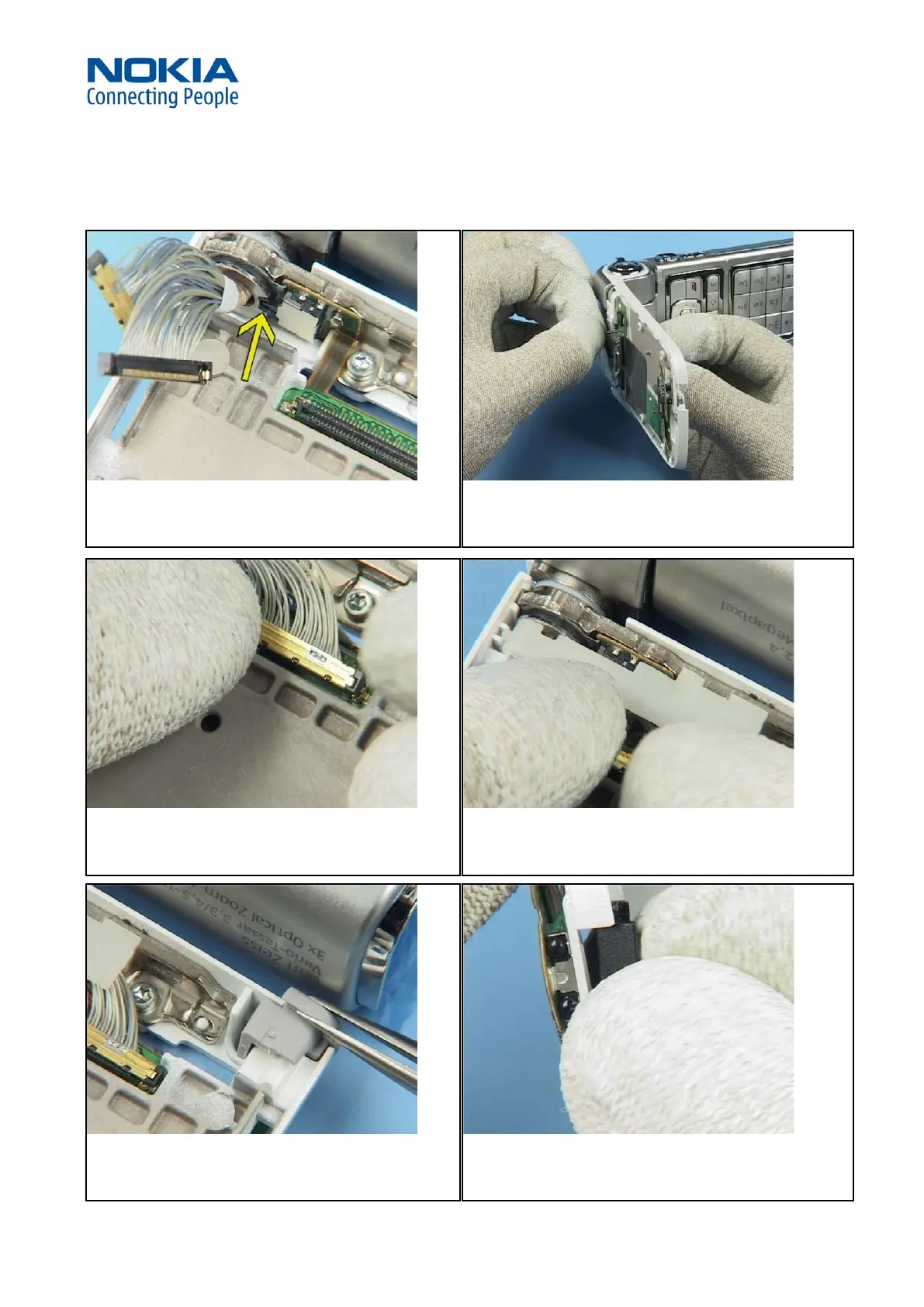

13. Place the switch in position shown.
14. Slot the smaller connector through the Flip B-Cover.
15. Close the connector while pushing from behind the Flip
PWB Module.
16. Place the Detector holder.
17. Insert the Flip Corner Bumper.
18. And the IR Window.
