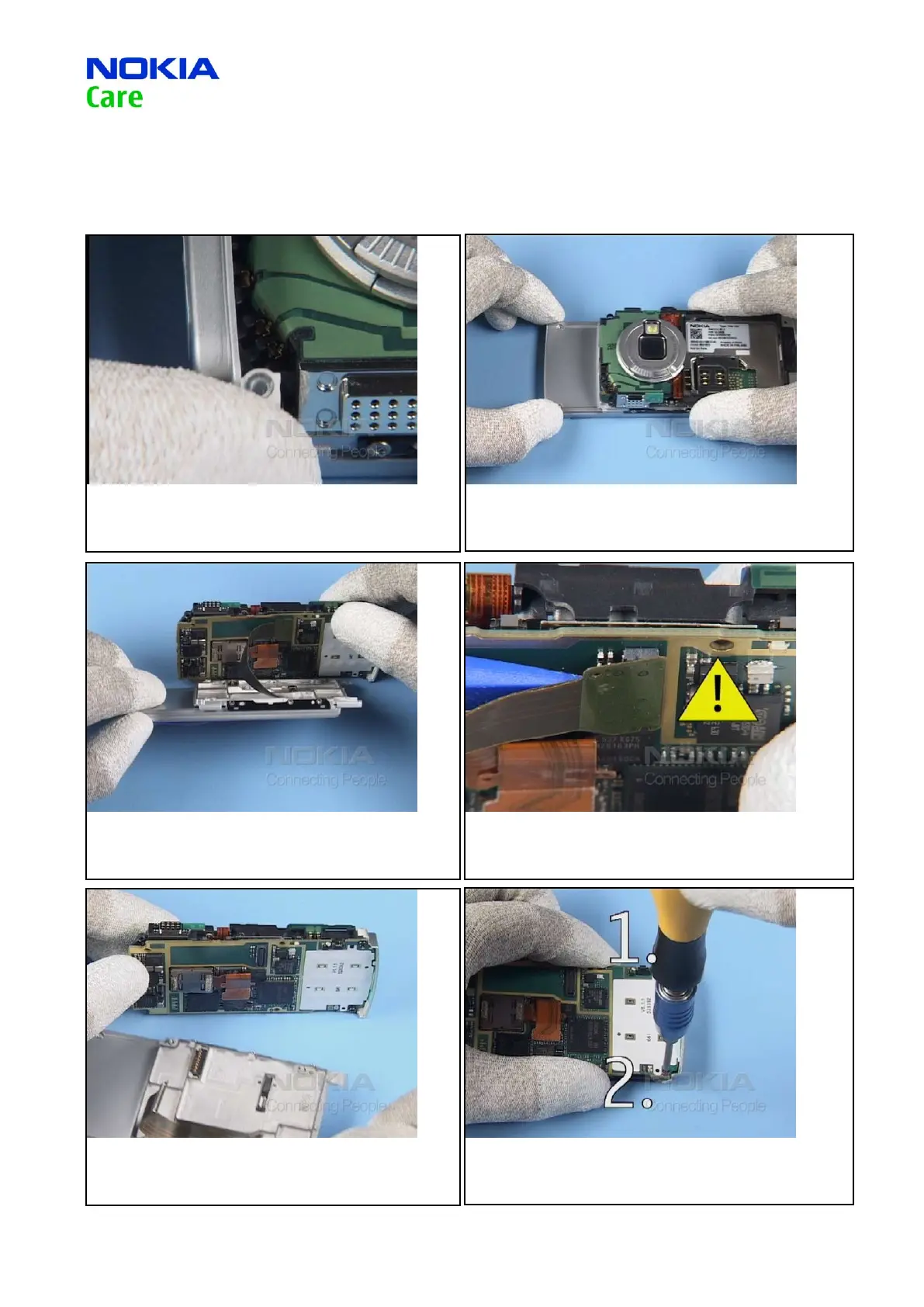

13. Lift up the TOP COVER ASSY rst, then remove it.
14. Shift out the assembly in order to gain the maximum ex foil
length.
15. Separate the assemblies, keep in mind that the ex foil is
still connected.
16. Be double careful while opening this connector. Do not
destroy the hidden components underneath.
17. Now the parts can be separated.
18. Unscrew both screws in the order shown and remove them.
