Nokia RM-394 User Manual

10
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.
1680classic RM-394/RM-395 1681c RH-118
Page
(XX)
ISSUE 2
Service Manual Level 1&2

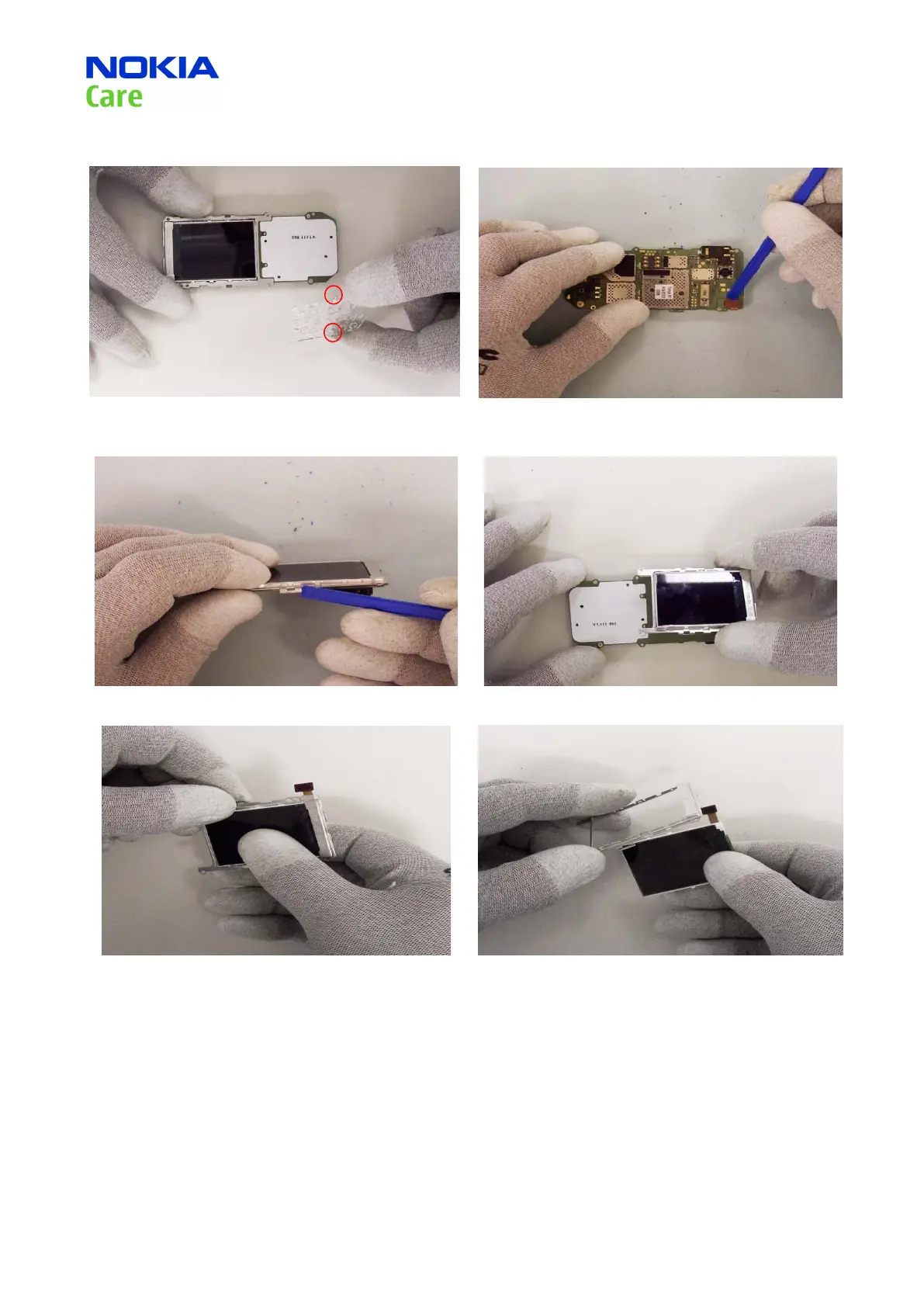

7) Gently release tabs with fingers and remove Keymat
Light Guide.
8) Use SS-93 Tool to release LCD Connector.
9) Use SS-93 Tool to release LCD tabs 10) Remove UI Shielding and LCD Module.
11) Gently pull UI Shielding and push LCD to release. 12) Remove the UI Shielding.
