6
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.
1680classic RM-394/RM-395 1681c RH-118
Page
(XX)
ISSUE 2
Service Manual Level 1&2
See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.
EXPLODED VIEW7.
= only available as
assembly
Ver. 3.0
= These parts can
not be reused
after removal.

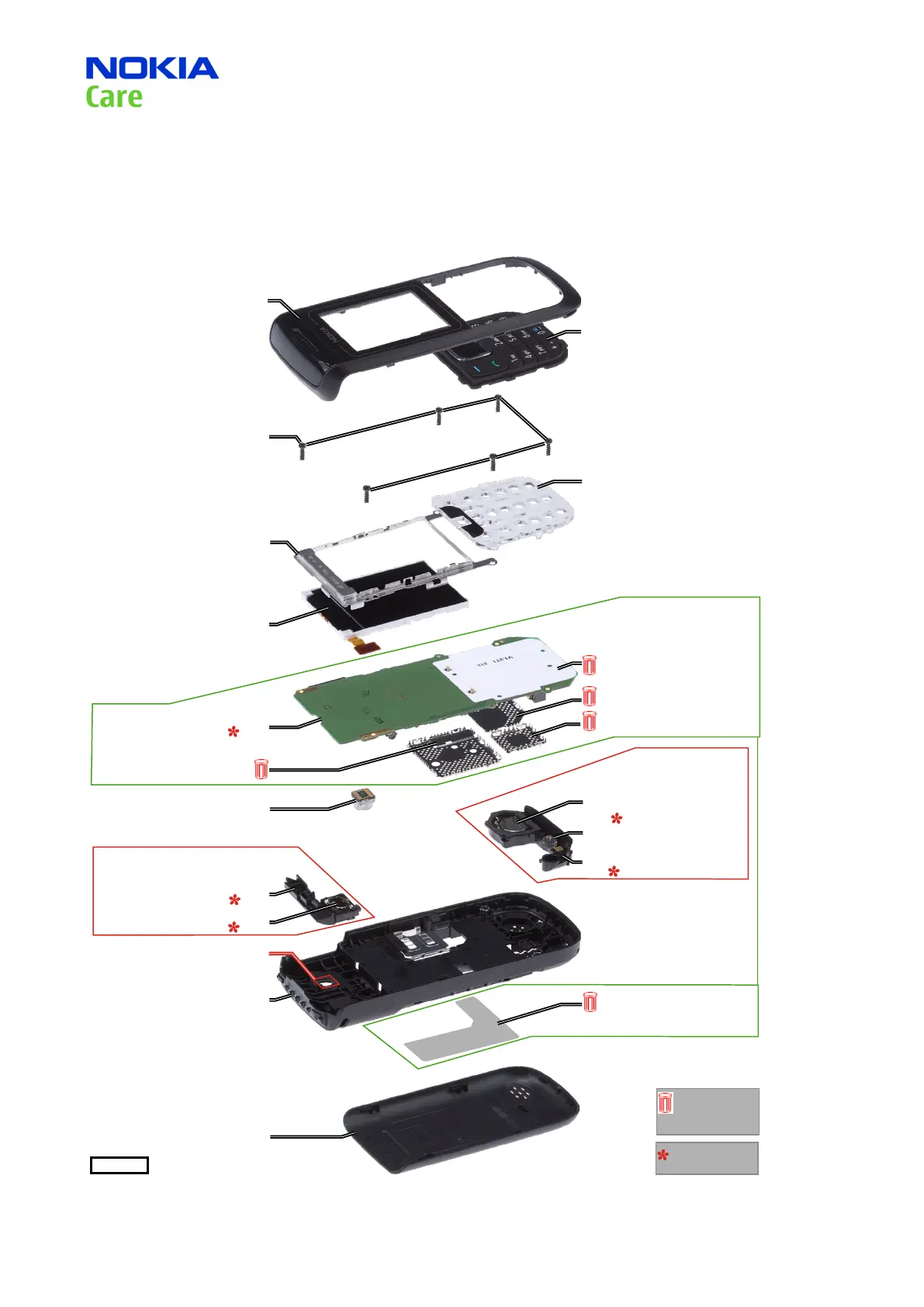

1680classic RM-394 / RM-395 & 1681c RH-118 EXPLODED VIEW
A3=IHF ANTENNA
MODULE EU
(I0016-I0018)
A2=EARPIECE MODULE
(I0014-I0015)
A1=LIGHT SWAP PWB
(I0007-I0012)
(LEVEL 3&4 ONLY)
A-COVER ASSY
I0001
KEY-MAT ASSY
I0002
KEYMAT LIGHT GUIDE ASSY
I0006
LIGHT SWAP PWB (A1)
I0008
IHF SPEAKER (A3)
I0017
MICROPHONE STAR (A3)
I0016
TYPE LABEL BLANK (A1)
(LEVEL 3&4 ONLY)
I0012
BB SHIELDING LID ASSY (A1)
I0010
FEM SHIELDING LID (A1)
I0011
DOME SHEET ASSY (A1)
I0007
RF-ASIC SHIELDING LID ASSY (A1)
I0009
6xTORX SCREW
I0003
UI SHIELDING
I0004
LCD TPO LCD
I0005
CAMERA MOD CMOS SMIA65
VGA-SE 640x480
(ONLY RM-394/RM395)
I0013
B-COVER ASSEMBLY BLACK
I0020
EARPIECE (A2)
I0014
ACOUSTIC CHAMBER (A2)
I0015
ANTENNA (A3)
I0018
D-COVER ASSEMBLY BLACK
(LEVEL 3&4 ONLY)
I0019
Hole in RH-118 not visible
