Nokia RM-394 - Disassembly Instruction

9
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.
1680classic RM-394/RM-395 1681c RH-118
Page
(XX)
ISSUE 2
Service Manual Level 1&2
DISASSEMBLY INSTRUCTION10.

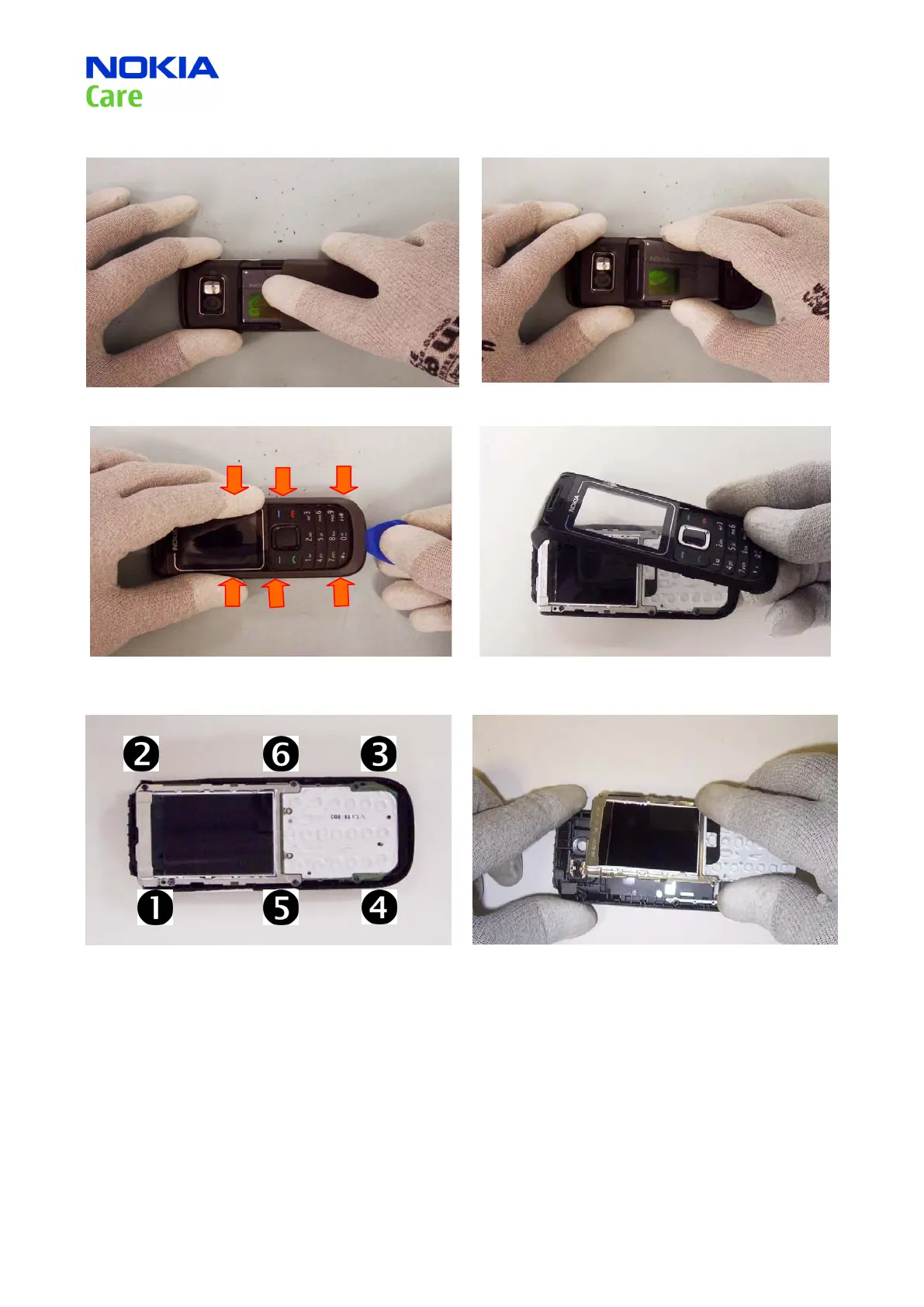

1) Unlock and remove the BATTERY COVER. 2) Remove the battery if not already done.
3) Insert SRT-6 from bottom and slide along sides to
release 3 tabs one side and then 3 tabs another side.
4) Lift and remove A-Cover and Keymat.
5) Undo the TORX Plus size 4 screws in the order shown. 6) Lift and remove Engine Module Assembly
