E52 RM-469, RM-481
Service Manual Level 1&2
16 CONFIDENTIAL
8.4 9

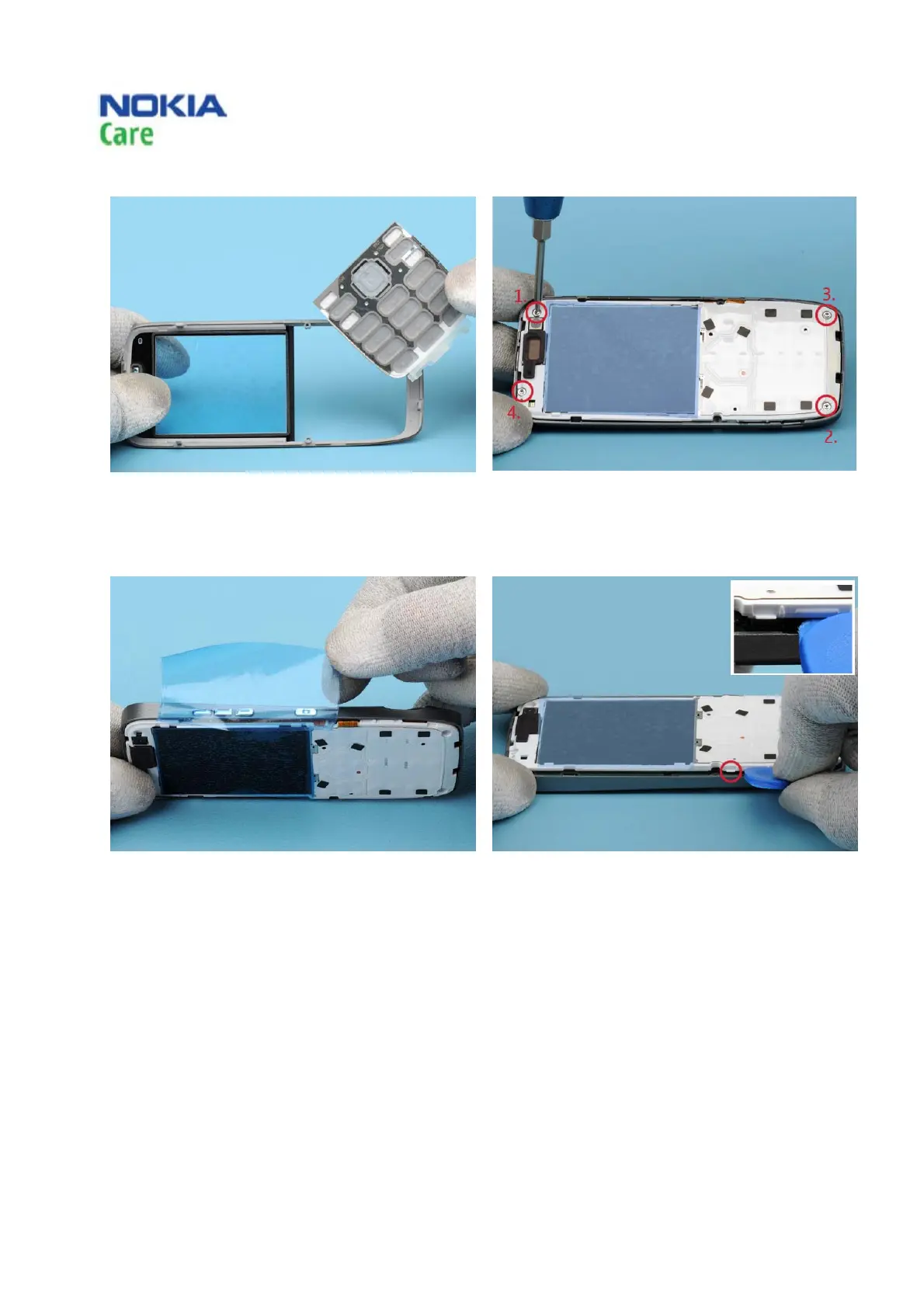

Remove the KEYMAT. Unscrew the 4 Torx 6 plus screws.
Protect the LCD with a protection foil to avoid
scratches.
10
11
Use protection foil for fixing the keys in the B-
COVER.
Release the FRAME ASSY using a SRT-6 tool…
