Nokia RM-469 - Page 17

E52 RM-469, RM-481
Service Manual Level 1&2
17 CONFIDENTIAL
12
13

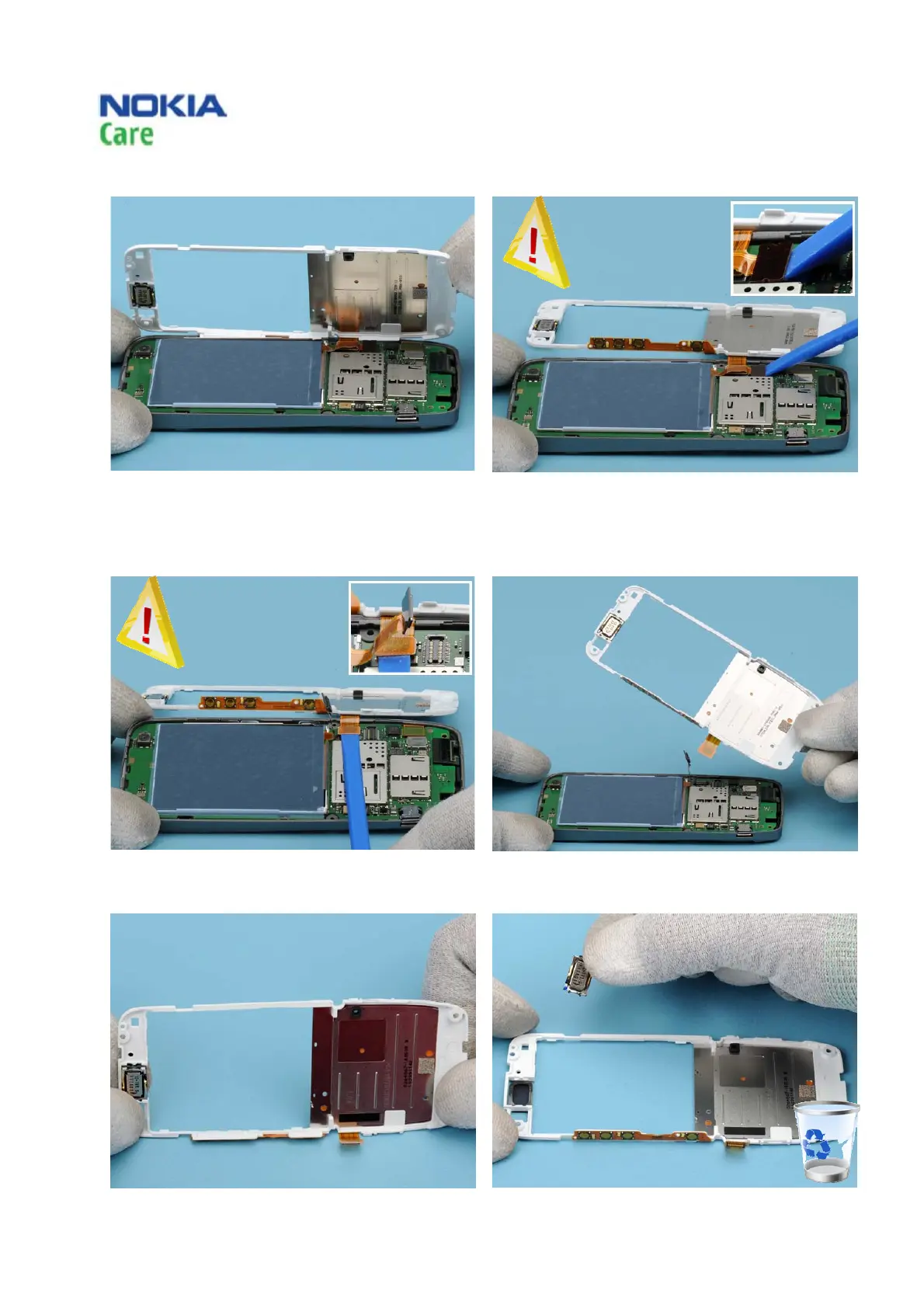

… and flap it as shown in the picture. Release the LCD Connector with an SS-93 tool. Be
careful with the mechanical sensitive ASIPS close
to the connector.
14
15
Do the same with the Connector in the KEYBOARD
MODULE.
Remove the FRAME ASSY.
16.1
16.2
Remove the EARPIECE.
