E52 RM-469, RM-481
Service Manual Level 1&2
21 CONFIDENTIAL
29
30

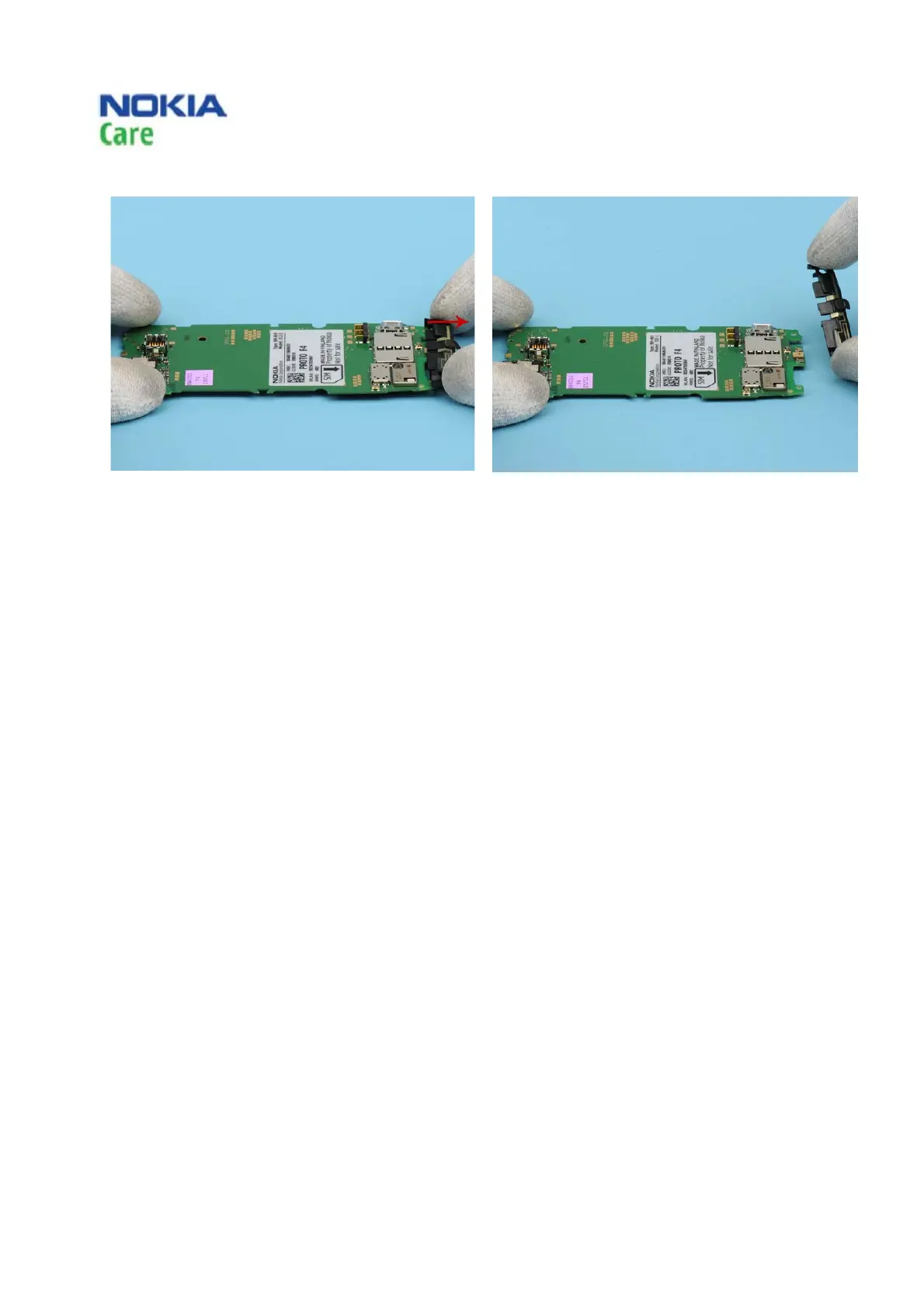

Pull the ANTENNA MODULE into the direction
shown in the picture.
Remove the ANTENNA MODULE.
Check that the MIC GASKET in the ANTENNA
MODULE is intact. If the MIC GASKET is, for
example, loose the whole ANTENNA MODULE
needs to be replaced with a new one.
End of disassembly
