Nokia RM-519 - Assembly Hints

Nokia 2720 fold
RM-519 / RM-520
Service Manual Level 1&2
19
Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1

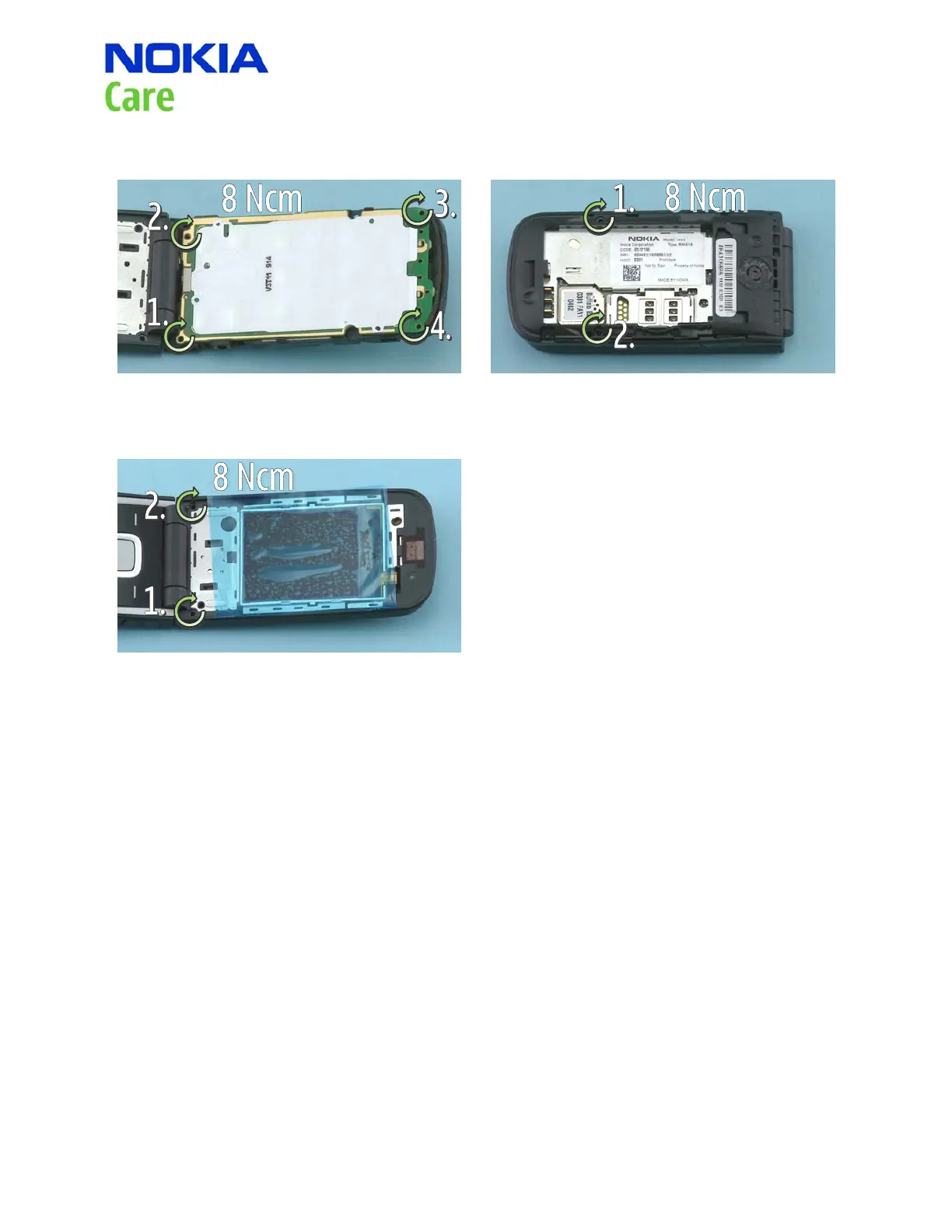

11. ASSEMBLY HINTS
1) Tighten the four TORX + size 4 screws to the
torque of 8 Ncm in the order shown.
2) Tighten the two TORX + size 4 screws to the
torque of 8 Ncm in the order shown.
3) Tighten the two TORX + size 4 screws to the
torque of 8 Ncm in the order shown.
