Nokia RM-519 User Manual

Nokia 2720 fold
RM-519 / RM-520
Service Manual Level 1&2
9
Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1

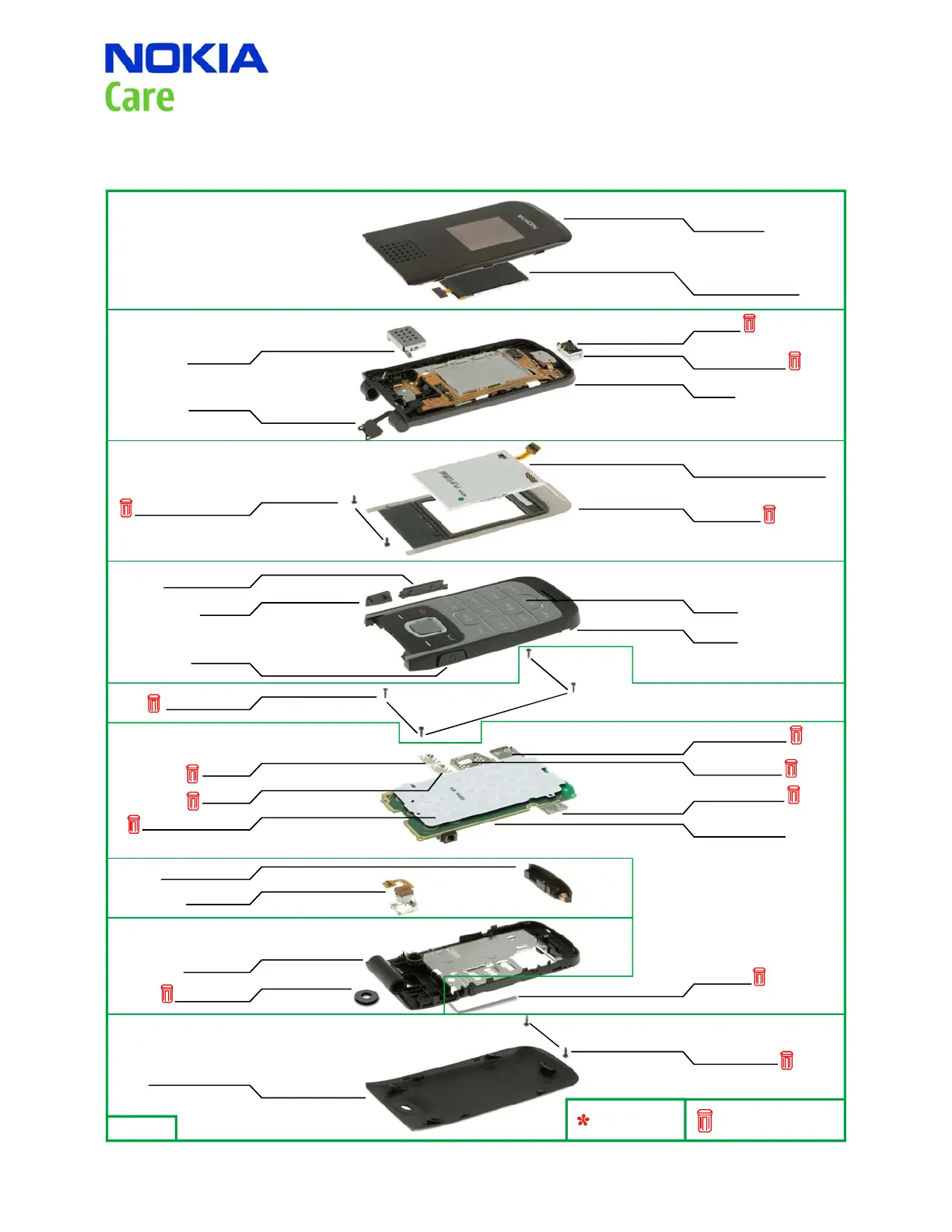

7. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0
A2=B-COVER ASSY
(I0005 - I0008, I0101)
A4=LIGHT SWAP PACKAGE
(I0209 - I0216, I9998)
A1=B-/D-COVER ASSY
(A2, I0201 - I0202)
A3=C-COVER ASSY
(I0203 - I0207
SCREW SCREW RF1.4X3.0
I0003
IHF SPEAKER
I0005
UI FLEX ASSY
I0101
D-COVER ASSY
I0201
CAMERA GASKET
I0202
AV JACK CAP
I0205
SLIDE VOLUME KEY
I0206
EF III CAP
I0207
LIGHT SWAP PWB
I0209
BT LID
I0213
HWA LID
I0212
CAMERA ASSY
I0217
ANTENNA MODULE
I0218
BATTERY COVER ASSY
I0220
IMD WINDOW
I0001
A-COVER ASSY
I0004
EARPIECE
I0006
EARPIECE Adhesive
I0007
B-COVER
I0008
LCD AM TFT a-Si
128x160 COG Catalina
I0009
C-COVER
I0203
KEYMAT
I0204
SCREW RF1.4X4.0
I0208
BB SHIELDING LID
I0214
FEM SHIELDING LID
I0211
DOME SHEET & LG ASSY
I0215
RF SHIELDING LID
I0210
TYPE LABEL
I0216
SCREW RF1.4X4.0
I0219
LCD AM 128x160 COG Baffin
I0002
