Nokia RM-519 - Disassembly Instructions

Nokia 2720 fold
RM-519 / RM-520
Service Manual Level 1&2
12
Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
10. DISASSEMBLY INSTRUCTIONS

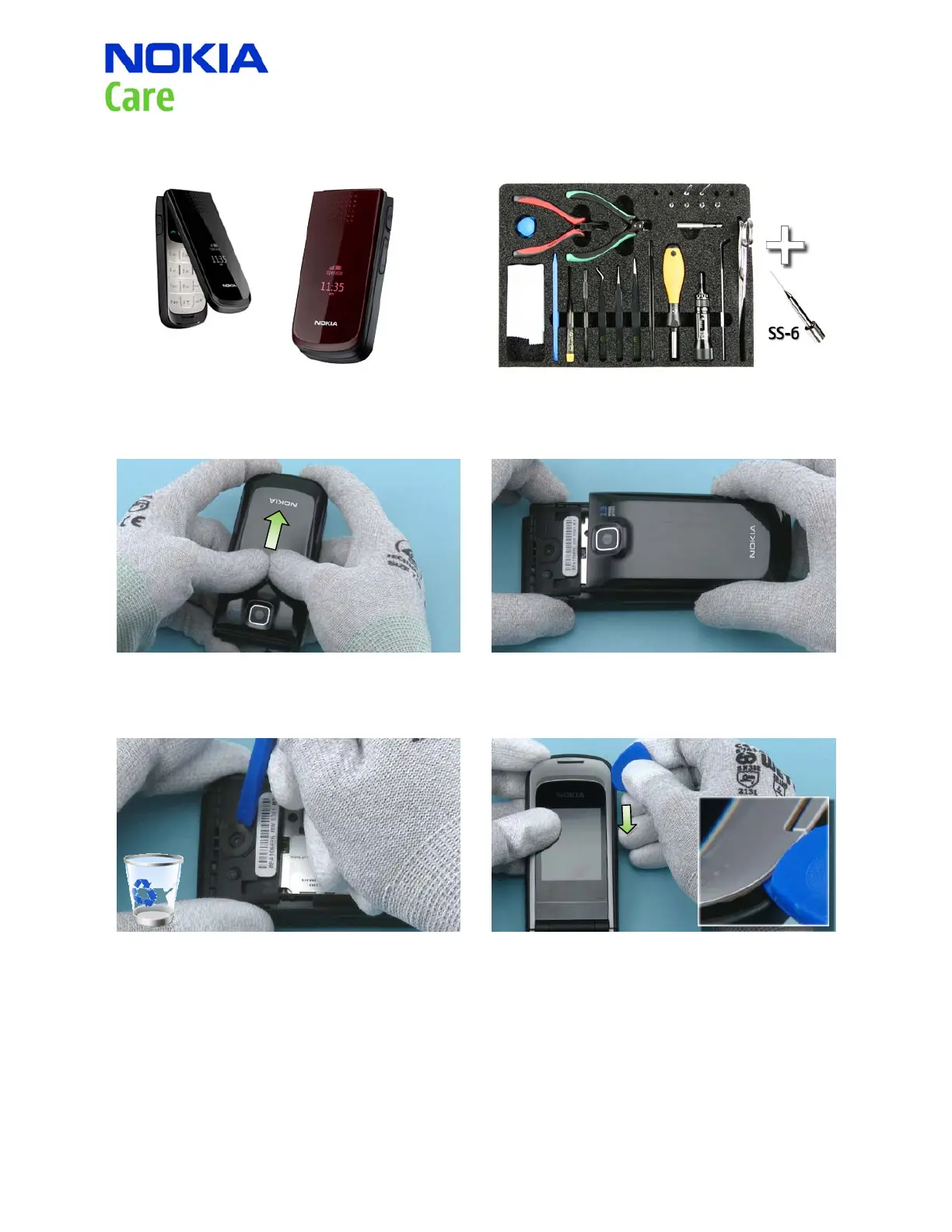

1) Nokia 2720fold disassembly. 2) You must use the Nokia Standard Toolkit version
2. You will also need the SS-6.
3) To remove the BATTERY COVER, press and push it
into the direction shown.
4) Remove the BATTERY COVER. If there is a battery
inserted, remove it also.
4) Use the SS-93 to release the CAMERA GASKET and
remove it with the tweezers. The CAMERA GASKET
cannot be used again.
6) Open the phone and insert the SRT-6 between
the IMD WINDOW and the B-COVER. Slide the SRT-6
along the window edges to loosen the adhesive.
