BB5 Basic RF&BB Tune Concept with MJ-248

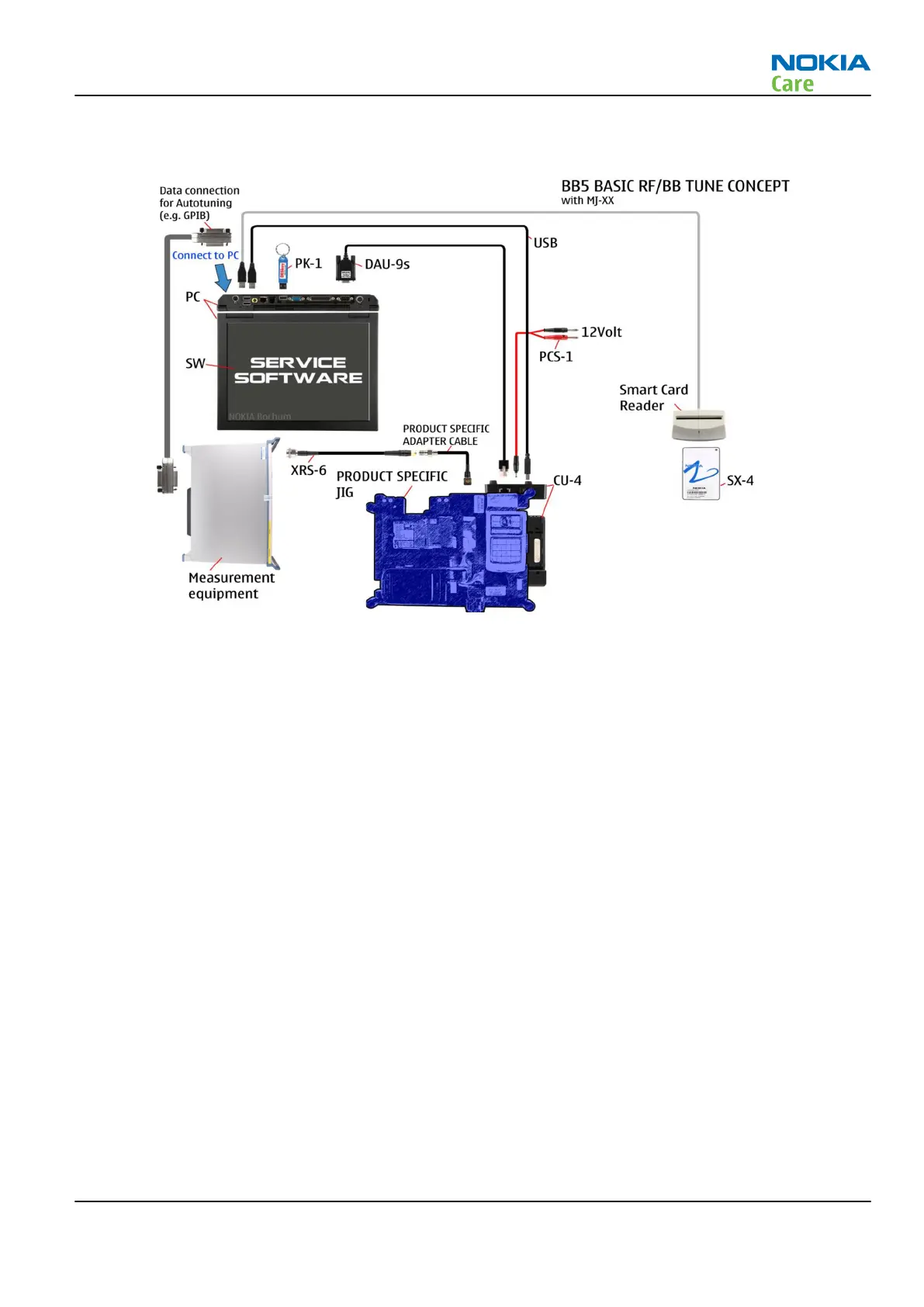

Figure 10 BB5 Basic RF&BB Tune Concept with MJ-248
RM-561
Service Devices and Service Concepts
Issue 1 COMPANY CONFIDENTIAL Page 2 –23
Copyright © 2009 Nokia. All rights reserved.
