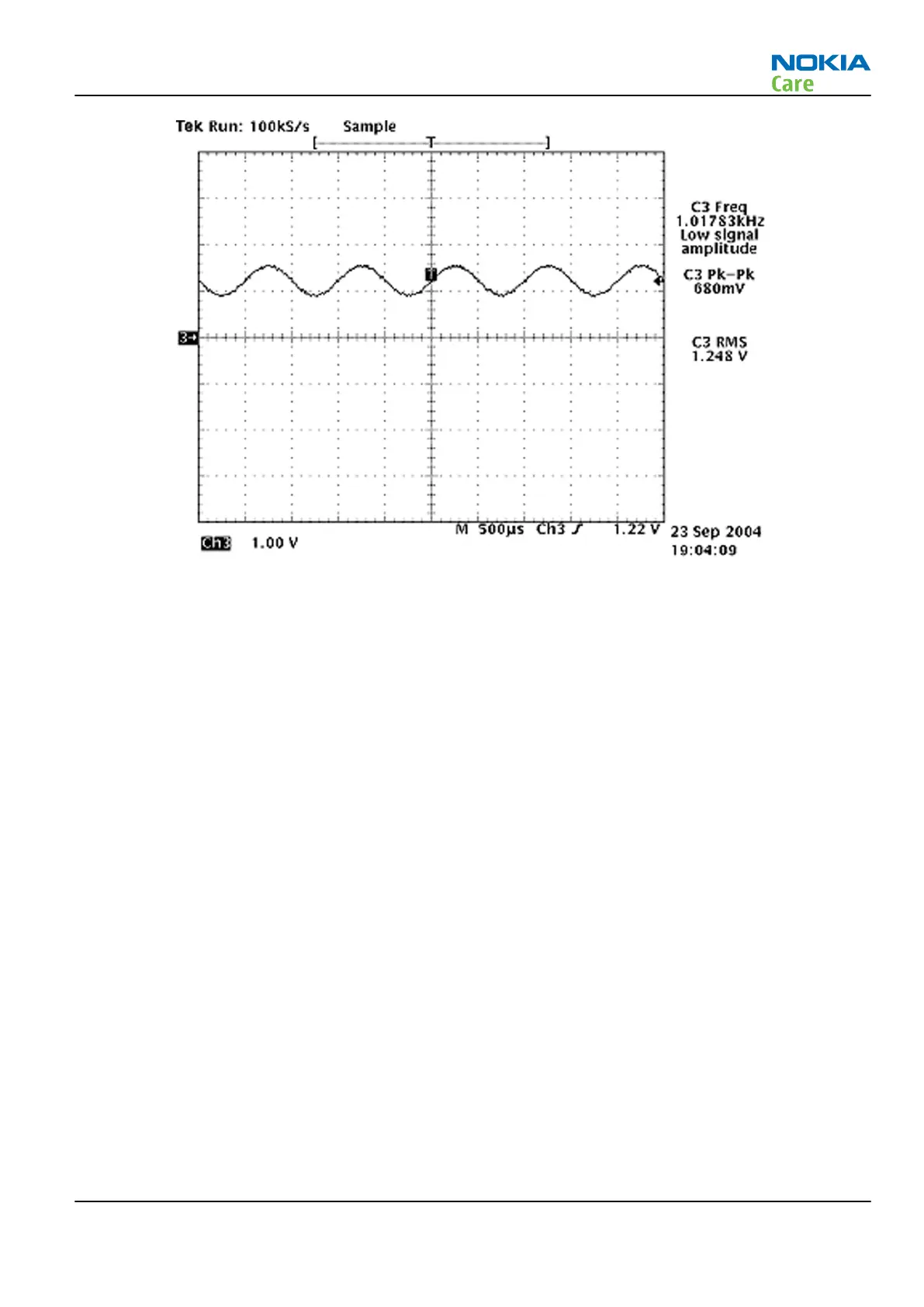

Figure 15 Single-ended output waveform of the HP_in_Ext_out loop when microphone is connected.
RM-561
BB Troubleshooting and Manual Tuning Guide
Issue 1 COMPANY CONFIDENTIAL Page 3 –29
Copyright © 2009 Nokia. All rights reserved.
