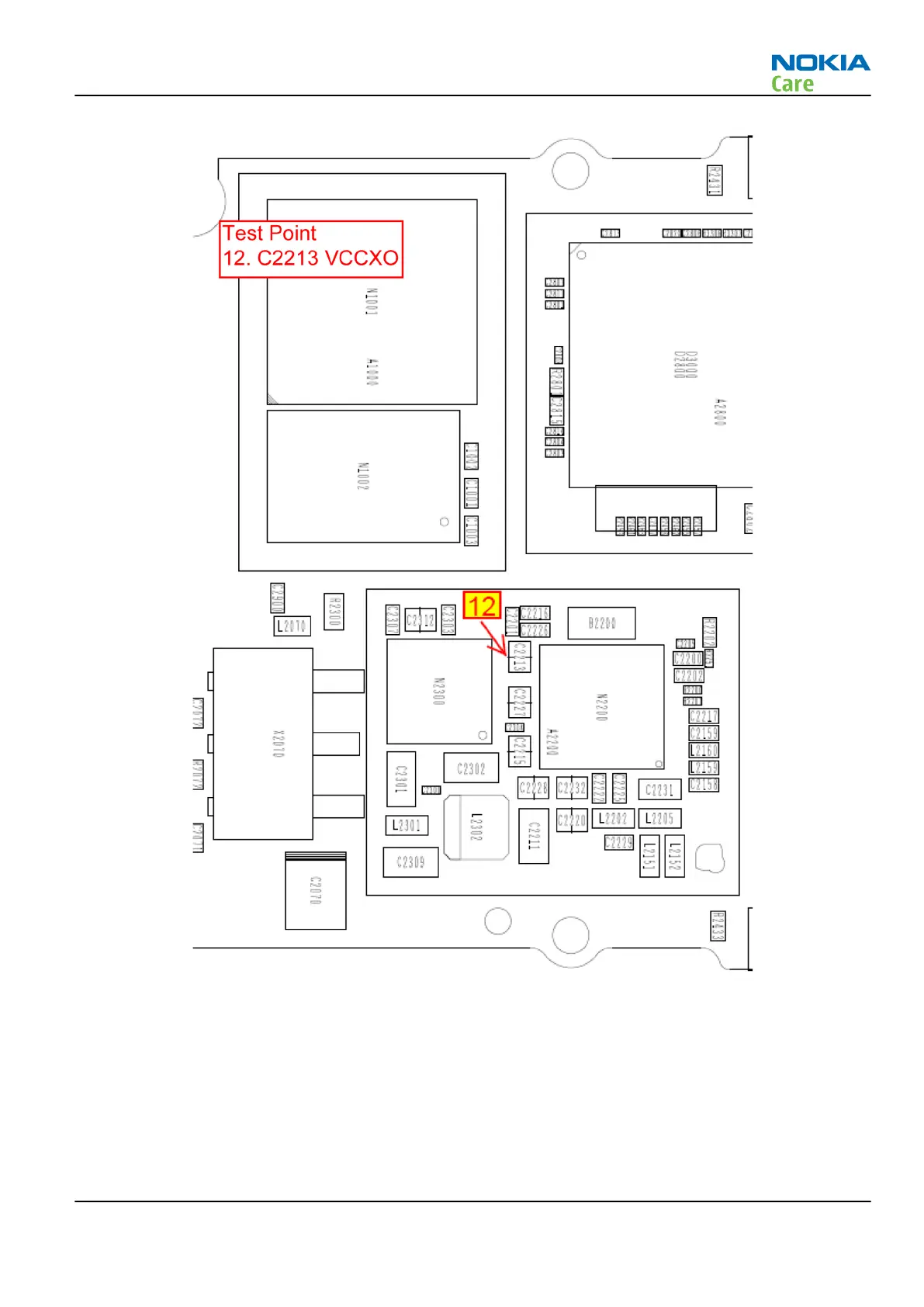

Figure 19 Testpoints used after fatal self tests
ST_CDSP_RF_BB_IF_TEST is fatal
This test is checking the communication between baseband and RF. It will show in what part the problem is
located.
RM-561
RF troubleshooting
Issue 1 COMPANY CONFIDENTIAL Page 4 –11
Copyright © 2009 Nokia. All rights reserved.
