Nokia RM-761 - Power and Clocking System Issues

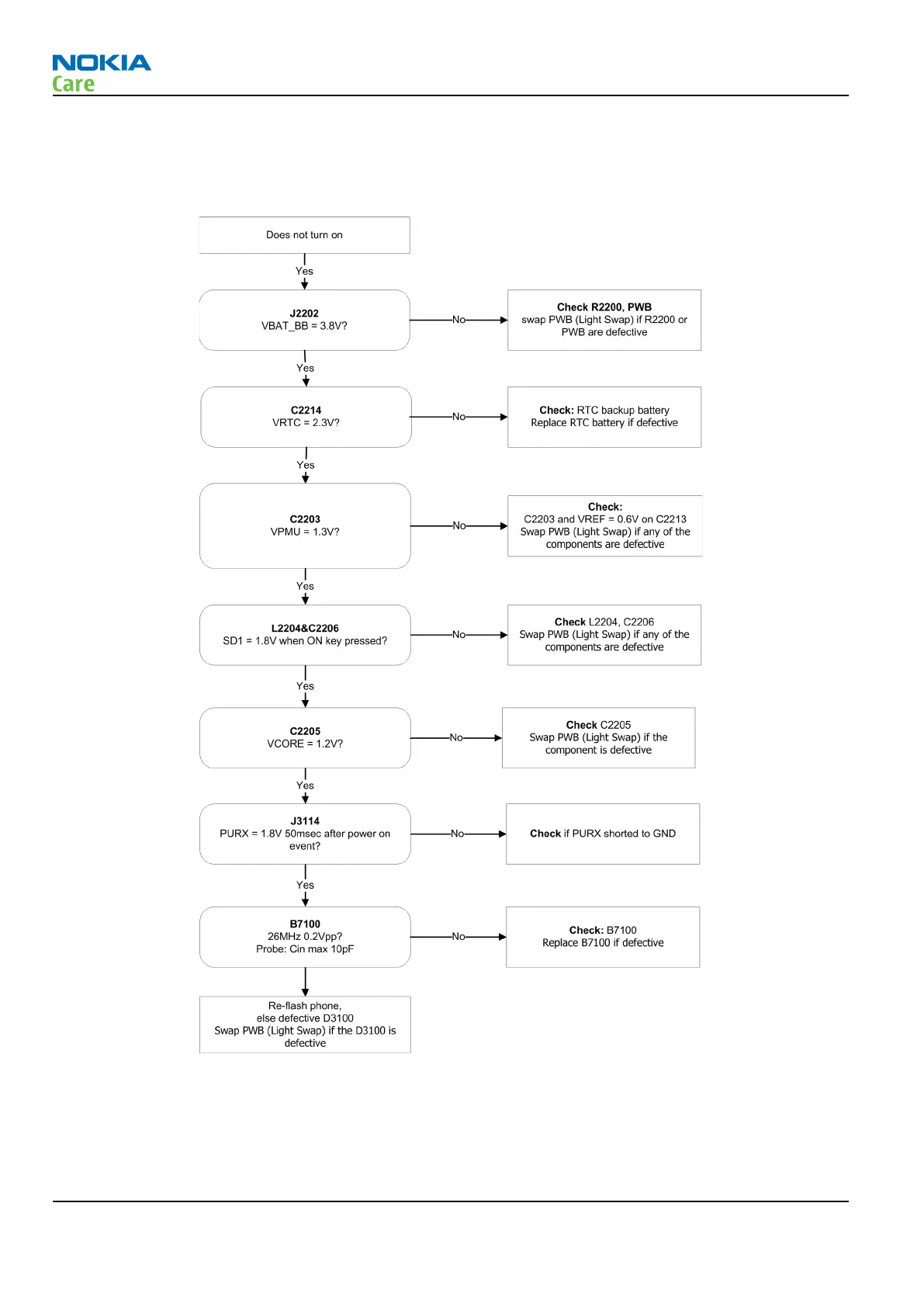

Phone does not power on
Troubleshooting flow
Power supply troubleshooting
High current
If the phone draws excessively high current upon power on or insertion of battery, it means that VBAT or a
LDO output is shorted.
RM-761; RM-799; RM-800
BB Troubleshooting and Manual Tuning Guide
Page 3 – 6 COMPANY CONFIDENTIAL Issue 1
