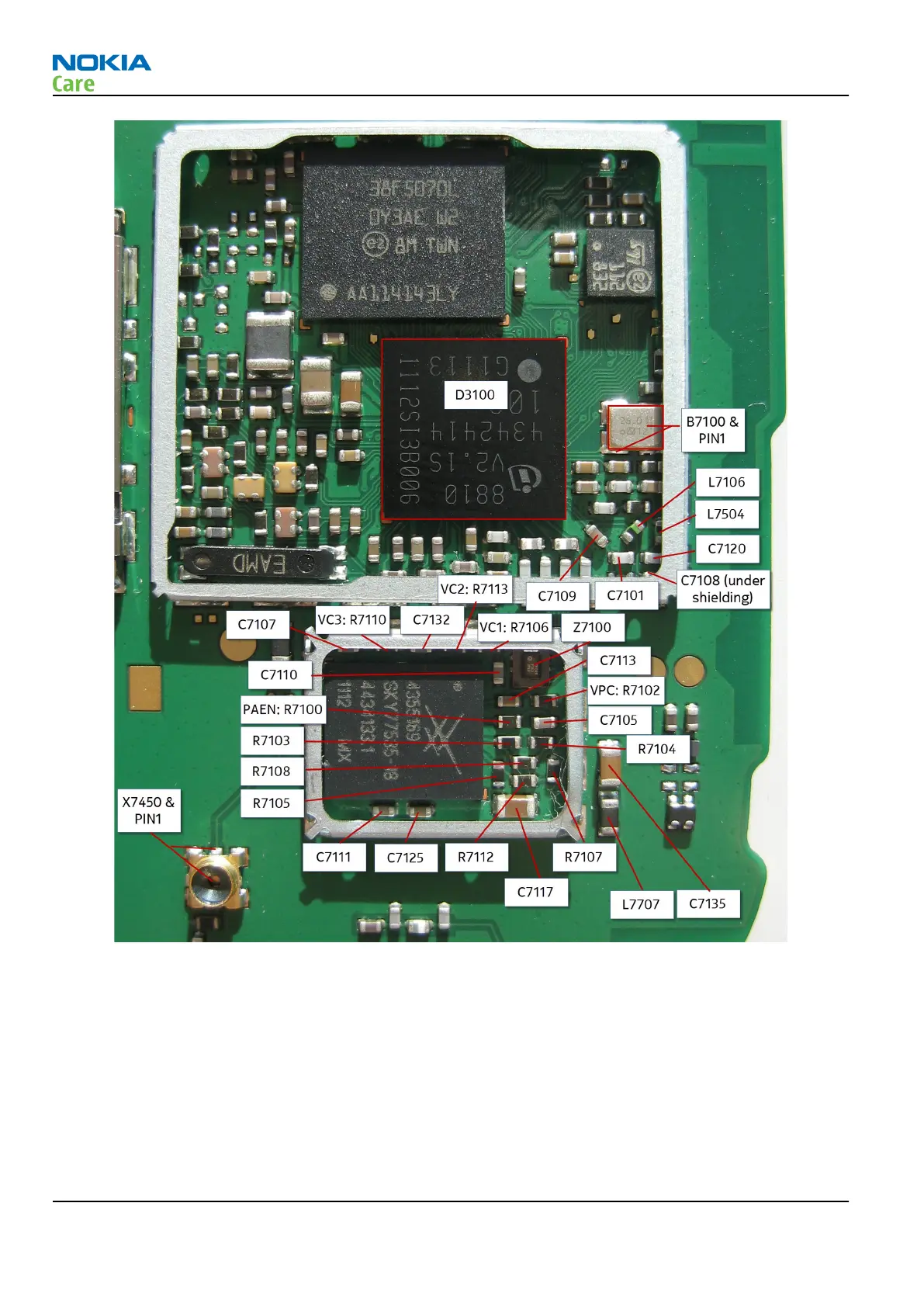

Figure 40 TX checkpoints and component overview (measurement point marked with blue)
RM-761; RM-799; RM-800
RF Troubleshooting
Page 4 – 20 COMPANY CONFIDENTIAL Issue 1
Copyright © 2011 Nokia. All rights reserved.
