Nokia TA-1157 Manual

Nokia 4.2 Manual del usuario
9. Volume keys
10. Power/Lock key
11. USB connector
12. Microphone
13. Loudspeaker
Some of the accessories mentioned in this user guide, such as charger, headset, or data cable,
may be sold separately.
*Google Assistant is available in selected markets and languages. Where not available Google
Assistant is replaced by Google Search.
Parts and connectors, magnetism
Do not connect to products that create an output signal, as this may damage the device. Do
not connect any voltage source to the audio connector. If you connect an external device
or headset, other than those approved for use with this device, to the audio connector, pay
special attention to volume levels.
Parts of the device are magnetic. Metallic materials may be attracted to the device. Do not
place credit cards or other magnetic stripe cards near the device for extended periods of time,
since the cards may be damaged.

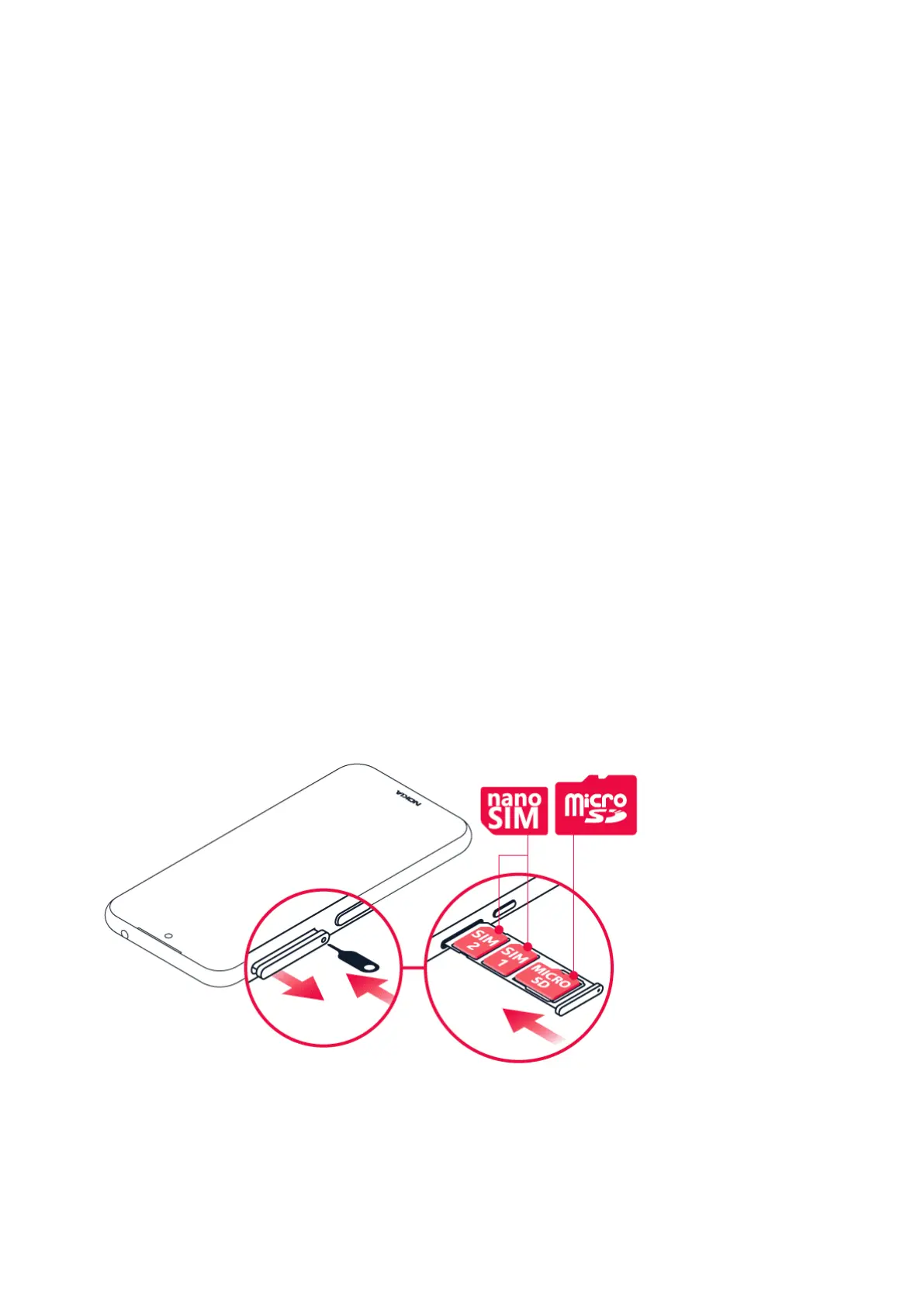

INSERT THE SIM AND MEMORY CARDS
Insert the cards
1. Open the SIM and memory card tray: push the tray opener pin in the tray hole and slide the
tray out.
© 2023 HMD Global Oy. Todos los derechos reservados. 7

Nokia TA-1157 Specifications

General

Front Camera	5 MP
Battery Capacity	3000 mAh
Network Technology	GSM / HSPA / LTE
Build	Glass front, plastic back, plastic frame
SIM	Single SIM (Nano-SIM) or Dual SIM (Nano-SIM, dual stand-by)
Type	IPS LCD
Card slot	microSDXC (dedicated slot)
Loudspeaker	Yes
3.5mm jack	Yes
WLAN	Wi-Fi 802.11 b/g/n, hotspot
Bluetooth	4.2, A2DP, LE
NFC	No
Radio	FM radio
USB	microUSB 2.0
Sensors	Accelerometer, proximity
RAM	2 GB
Internal Storage	16 GB
Operating System	Android 9.0 (Pie)
Status	Available
Pixel Density	295 ppi
Main Camera Features	LED flash, HDR
GPS	Yes, with A-GPS
Charging	5W
