Nokia X2-01 - Page 15

Nokia X2-
01
RM-709/RM-717
Service Manual Level 1&2
15 Confidential | Copyright © 2010 Nokia | All rights reserved Version 2.0

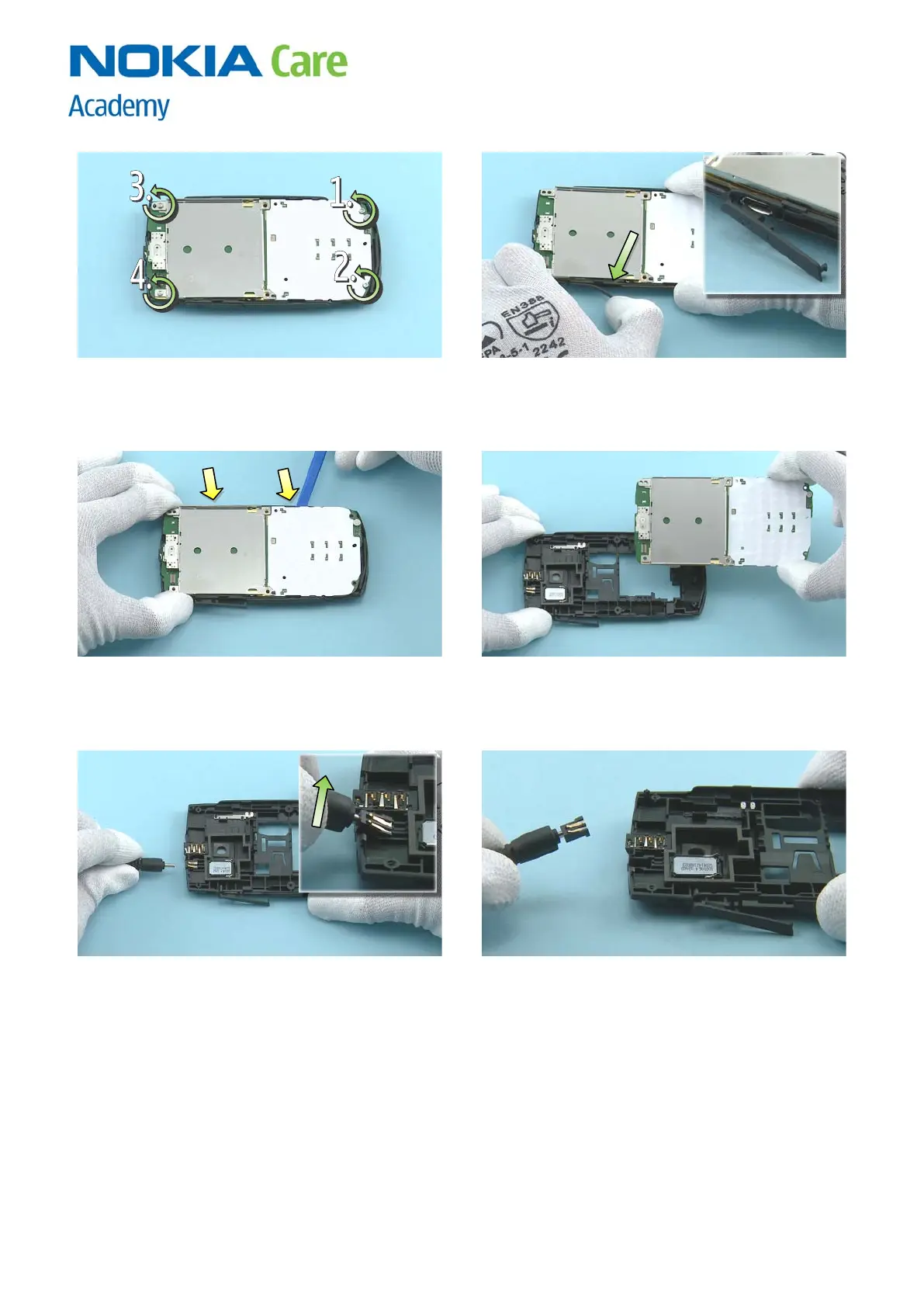

19) Unscrew the four TORX+ size 6 screws in the
order shown.
20) Open the USB/SD door as shown.
21) Use the SS-93 to lever up the ENGINE BOARD from
the shown places.
22) Lift up and remove the ENGINE BOARD.
23) Use the DC plug to lever up the DC JACK. 24) Remove the DC JACK.
