Nokia X2-01 - Your Device; Device Hardware Overview

Nokia X2-
01
RM-709/RM-717
Service Manual Level 1&2
16 Confidential | Copyright © 2010 Nokia | All rights reserved Version 2.0

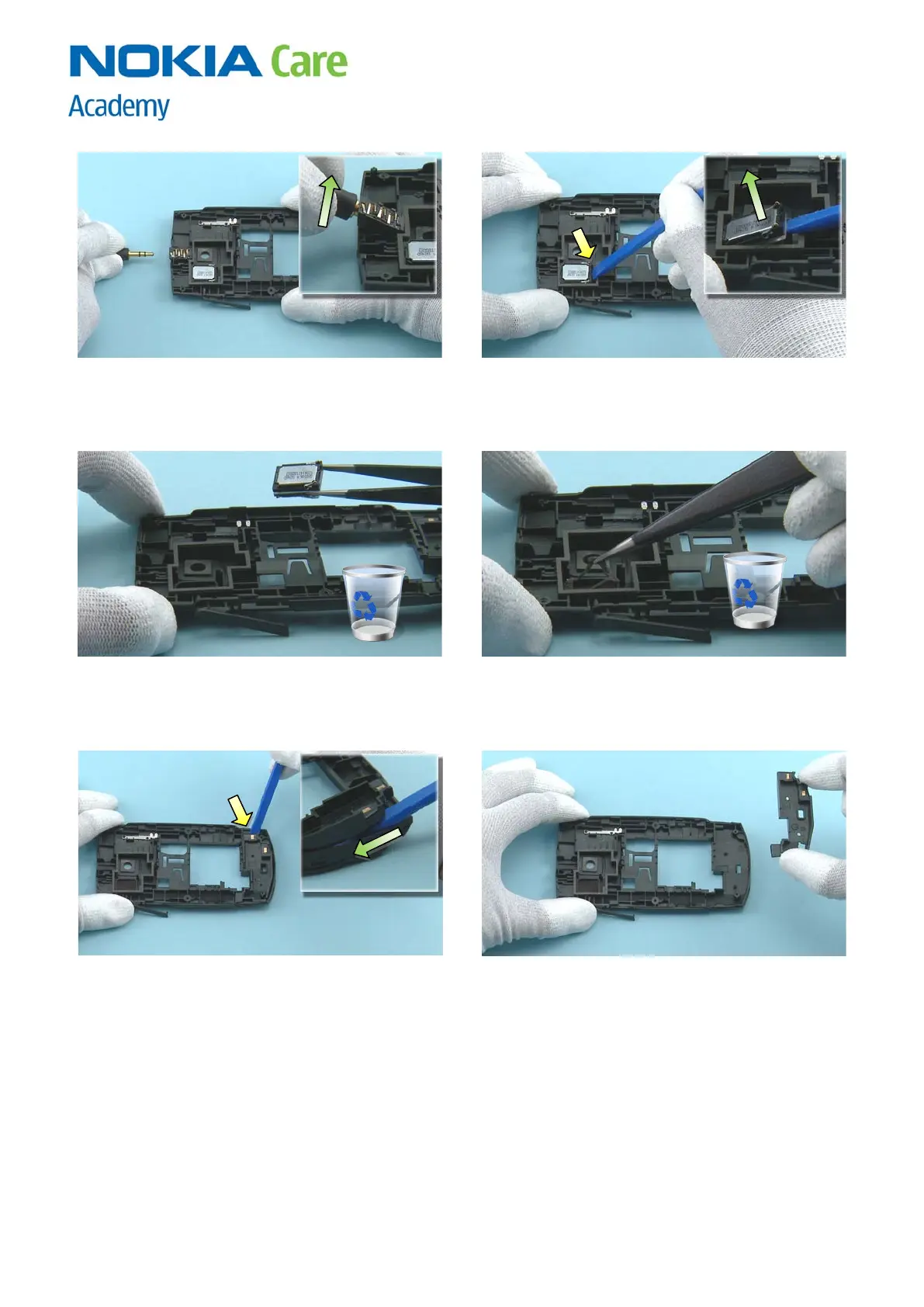

25) Use the 3.5mm AV plug to detach the AV JACK.
Remove the AV JACK.
26) Use the SS-93 to lever out the IHF SPEAKER.
27) Use the tweezers to remove the IHF SPEAKER.
Discard it.
28) Remove the IHF SPEAKER GASKET with the
tweezers. Do not use it again.
29) Use the SS-93 as shown to detach the ANTENNA
MODULE.
30) Remove the ANTENNA MODULE.
