Nokia X2-01 Service Manual

Nokia X2-
01
RM-709/RM-717
Service Manual Level 1&2
17 Confidential | Copyright © 2010 Nokia | All rights reserved Version 2.0

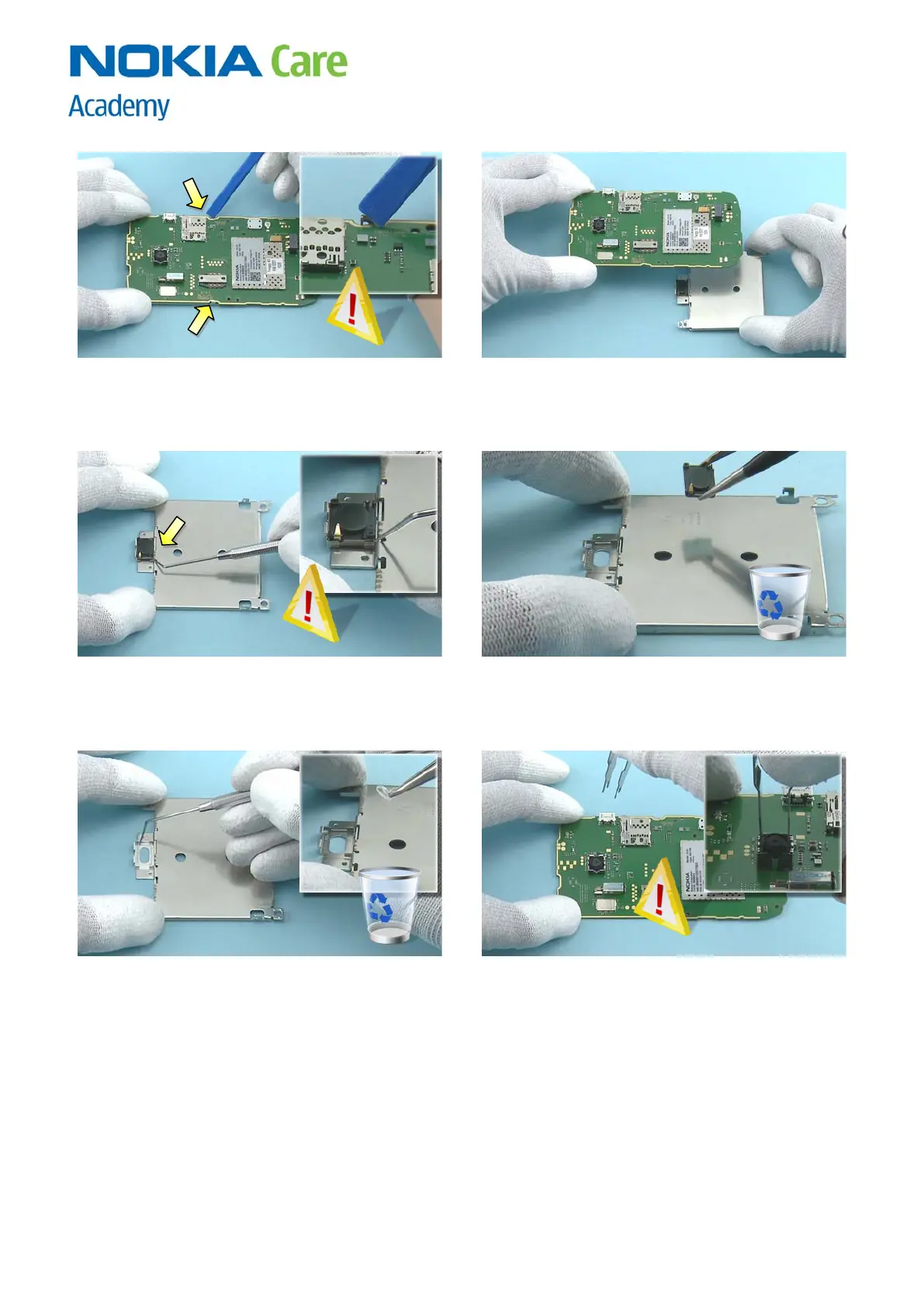

31) Use the SS-93 to detach the two UI SHIELDING
clips as shown. Be careful not to damage any nearby
components.
32) Remove the UI SHIELDING.
33) Use the dental tool to detach the EARPIECE from
the UI SHIELDING. Be careful not to damage yourself
with the sharp end of the dental tool.
34) Use the tweezers to remove the EARPIECE. Do not
use it again.
35) Remove the EARPIECE ADHESIVE with the
tweezers. Discard it. The UI SHIELDING can now be
removed.
36) Remove the CAMERA with the SS-88 camera
removal tool. Be careful not to damage any nearby
components.

Nokia X2-01 Specifications

General

Display Type	TFT, 256K colors
Display Size	2.4 inches
Resolution	320 x 240 pixels
RAM	64 MB
Expandable Storage	microSD, up to 16 GB
Main Camera	VGA
Battery Capacity	1020 mAh
Stand-by	Up to 480 h
Talk time	Up to 4 h 30 min
Operating System	Series 40
Dimensions	119.4 x 59.8 x 14.3 mm
Network Technology	GSM
2G bands	GSM 850 / 900 / 1800 / 1900
GPRS	Class 32
EDGE	Class 32
Announced	2010, November
Status	Discontinued
SIM	Mini-SIM
Keyboard	QWERTY
Alert types	Vibration, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	Yes
Phonebook	Yes, Photocall
Call records	Yes
Video	Yes
Radio	Stereo FM radio, RDS
USB	microUSB 2.0
Messaging	SMS, MMS, Email, IM
Browser	WAP 2.0/xHTML, HTML
Java	Yes, MIDP 2.1
Battery Type	Li-Ion
Weight	107.5 g
Games	Yes
Features	Predictive text input, Organizer
Colors	Red
