Nokia X5-01 Service Manual

Nokia X5-01
RM-627, RM-648
Service Manual Level 1&2
9 Confidential | Copyright © 2010 Nokia | All rights reserved Version 4.0

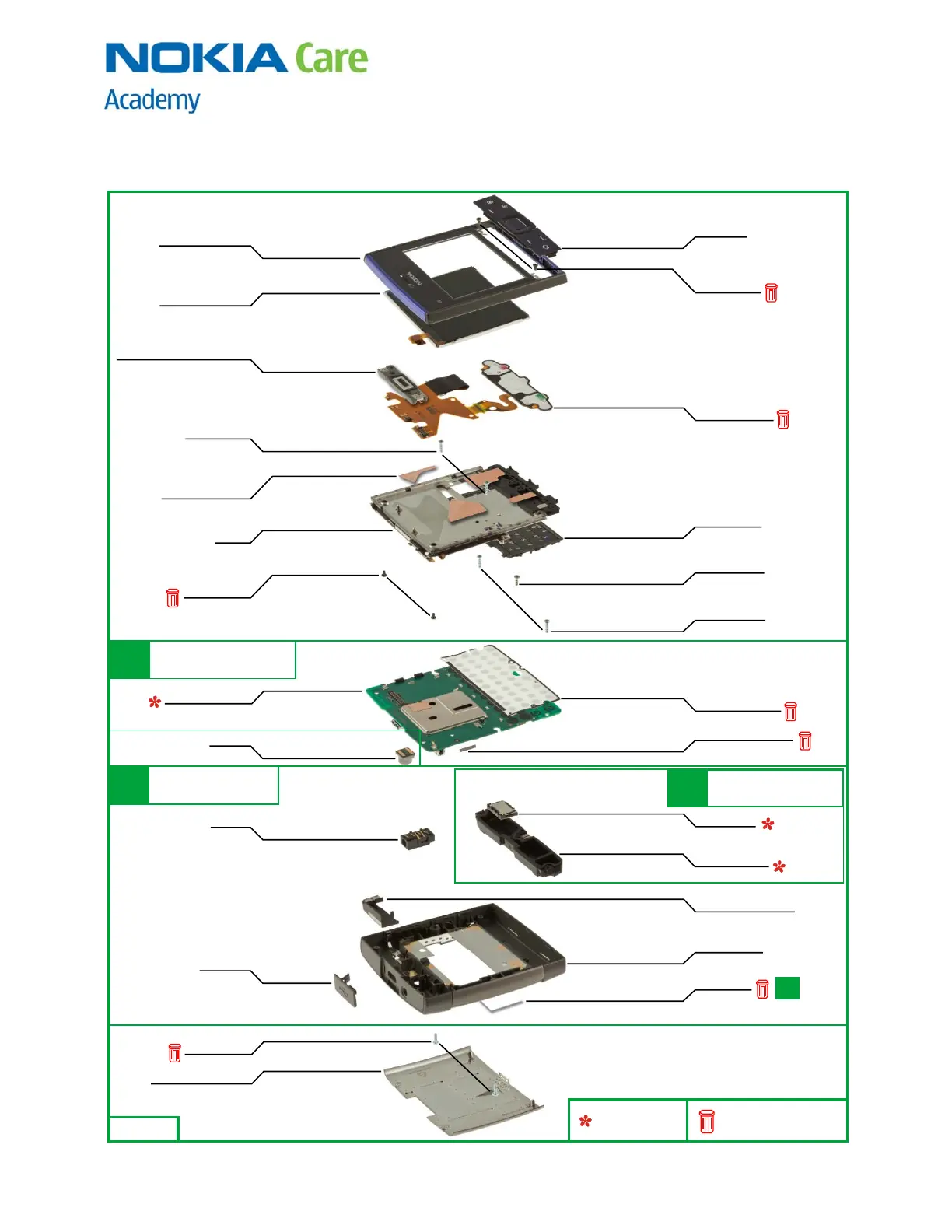

6. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 2.0
A1
A1
LIGHT SWAP PACKAGE
(I0204 - I0206, I0216)
A2
D-COVER ASSY
(I0208 - I0213) ,
A3
A3
ANTENNA ASSEMBLY
(I0209 - I0210)
MAIN KEYMAT
I0201
UI KEYMAT
I0001
SCREW TORX+ 4
M1.4X2.1 MM
I0007
A-COVER ASSEMBLY
I0003
DISPLAY ASSEMBLY
I0004
CONDUCTIVE
DISPLAY ADHESIVE
I0005
EARPIECE HOLDER ASSEMBLY
I0006
SCREW TORX+ 4
M1.4X2.1 MM
I0002
SCREW TORX+ 4
M1.4X4.5 MM
I0008
MAIN FLEX
MECH ASSEMBLY
I0101
SLIDER
I0102
SCREW TORX+ 4
RF1.4X4.6 MM
I0202
SCREW TORX+ 4
RF1.4X5.8 MM
I0203
MAIN DOMESHEET
I0204
SHIELD FOR SD FOAM
I0216
LIGHT SWAP PWB
I0205
CAMERA
I0207
TYPE LABEL
I0206
D-COVER ASSY
I0213
MAIN ANTENNA
I0209
IHF SPEAKER
I0210
GPS/WLAN ANTENNA
I0211
USB DOOR
I0212
SCREW TORX+ 4
M1.4X4.5 MM
I0214
BATTERY COVER ASSY
I0215
AV JACK
I0208

Nokia X5-01 Specifications

General

Panel type	TFT
Display diagonal	2.36 \
Display resolution	320 x 240 pixels
Display number of colors	262144 colors
Ringer type	Polyphonic
Processor frequency	0.6 GHz
Internal memory	200 MB
Maximum memory card size	32 GB
Rear camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
Video capture resolution (max)	640 x 480 pixels
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Text prediction system type	T9
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Audio formats supported	AAC, AAC+, AU, eAAC+, M4A, MP3, MP4, WAV, WMA
Image formats supported	BMP, PNG
Talk time (2G)	5 h
Standby time (2G)	408 h
2G standards	EDGE, GPRS
Data network	3G, wcdma
Bluetooth version	2.1+EDR
SIM card capability	Single SIM
Form factor	Slider
Product color	-
Keyboard layout	QWERTY

Weight and Dimensions

Depth	16.85 mm
Width	66.44 mm
Height	74.3 mm
Weight	129 g
