Nokia X5-01
RM-627, RM-648
Service Manual Level 1&2

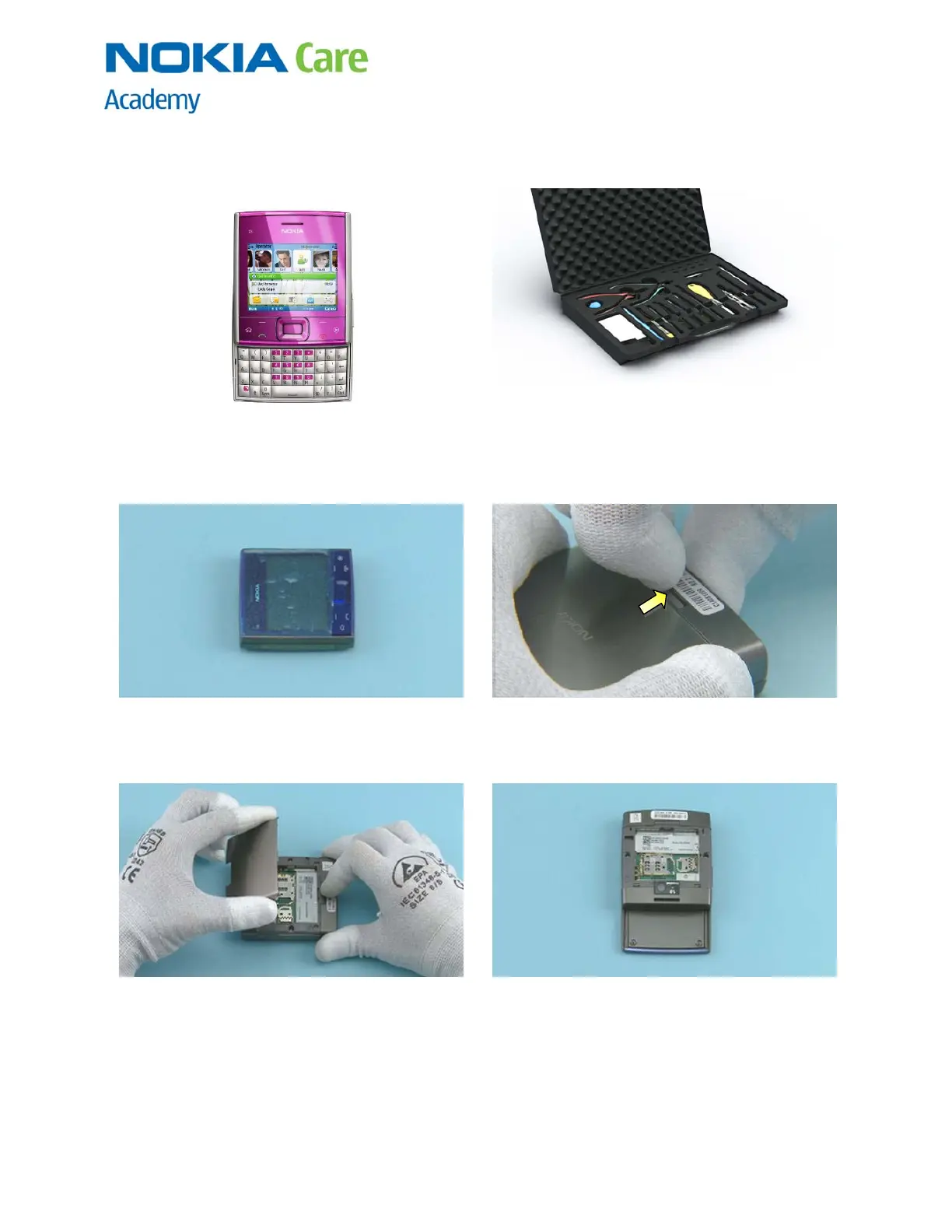

9. DISASSEMBLY INSTRUCTIONS
1) Nokia X5-01 disassembly. 2) For disassembling you need the Nokia Standard
Toolkit version 2, camera removal tool SS-88 and
AV plug.
3) Protect the A-COVER with protective film. 4) Release the BATTERY COVER by pressing the
release notch.
5) Lift up the bottom end of the BATTERY COVER. If
there is a battery inserted, remove it also.
6) Slide the phone open.
