Nokia X6
RM-551 / RM-559
Service Manual Level 1&2
12
Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 1.0 ISSUE 1

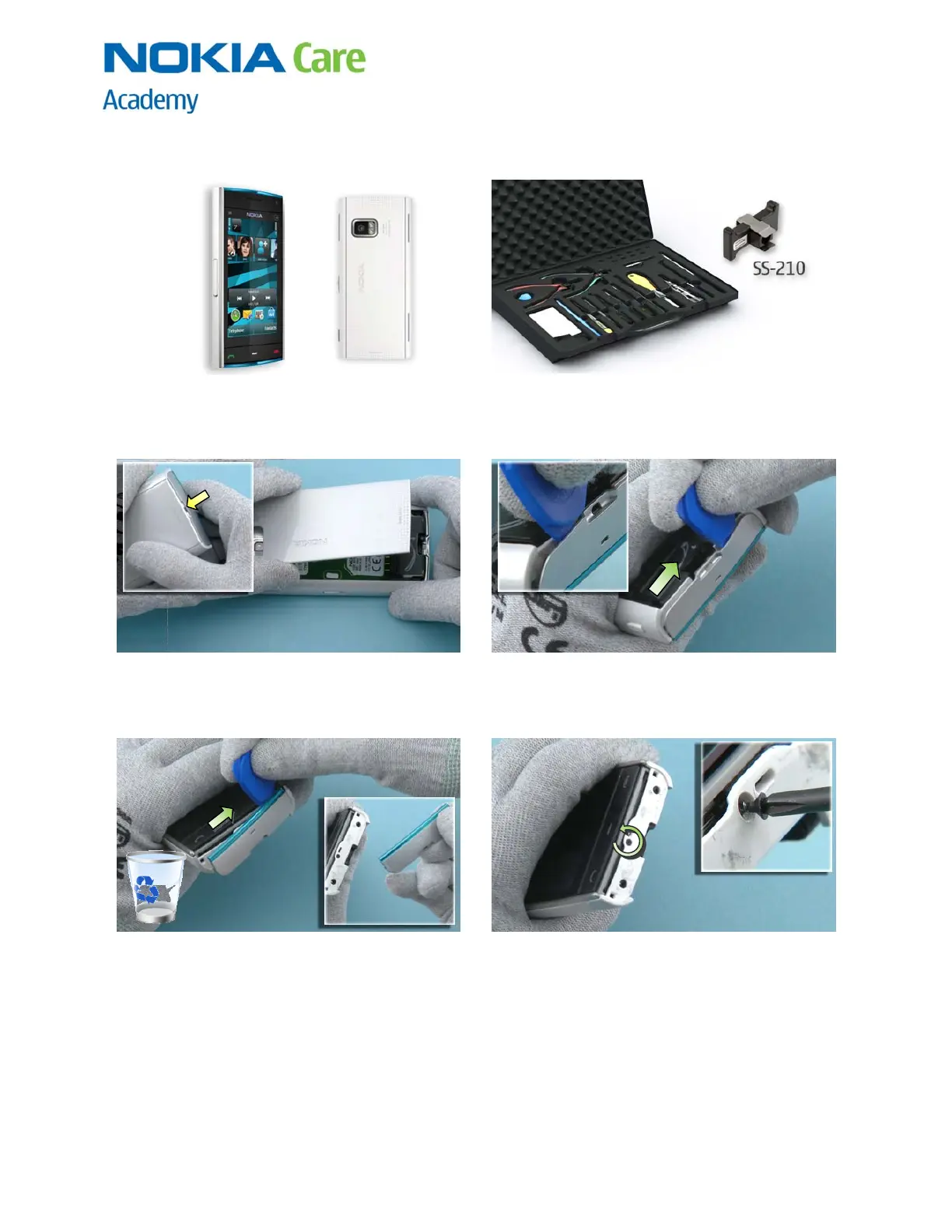

10. DISASSEMBLY INSTRUCTIONS
1) Nokia X6 disassembly. 2) You must use the Nokia Standard Toolkit version
2. You will also need the SS-210 camera removal
tool.
3) Use the opening notch, to release the battery
cover. Remove the battery cover.
4) Start to detach the BOTTOM COVER ASSY with the
SRT-6. Insert the SRT-6 between the SIDE COVER ASSY
and the BOTTOM COVER ASSY and slide it along the
edge.
4) Detach also the opposite side of the cover and
remove it. The BOTTOM COVER ASSY cannot be used
again.
6) Unscrew the phillips size 0 screw. Note that this
screw can be reused. Do not discard it!
