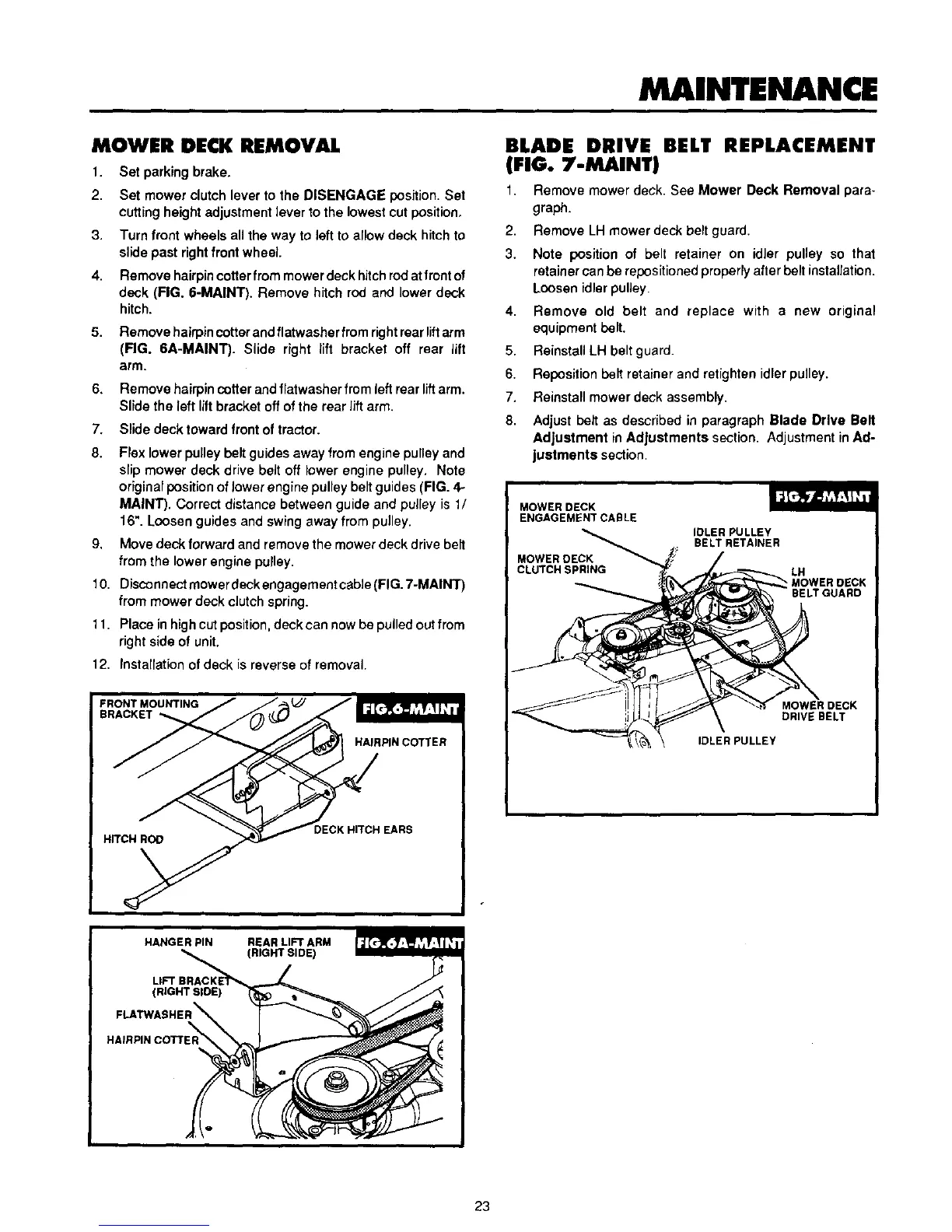

MAINTENANCE
MOWER DECK REMOVAL
1.
2.
:3.
4.
5.
6,
7.
8.
g,
Set parking brake.
Set mower clutch lever to the DISENGAGE position. Set
cutting height adjustment lever to the lowest cut position,
Turn front wheels all the way to left to allow deck hitch to
slide past right front wheel.
Remove hairpincotterfrom mower deck hitch rodat front of
deck (FIG. 6-MAINT). Remove hitch rod and lower deck
hitch.
Remove hairpin cotter and flatwasher from right rear lift arm
(RG. 6A-MAINT). Slide right lift bracket off rear lift
arm.
Remove hairpin cotter and flatwasher from left rear lift arm.
Slide the left lift bracket off of the rear lift arm.
Slide deck toward front of tractor.
Flax lower pulley belt guides away from engine pulley and
slip mower deck drive belt off lower engine pulley. Note
original position of lower engine pulley belt guides (FIG. 4-
MAINT). Correct distance between guide and pulley is 1/
16". Loosen guides and swing away from pulley.
Move deck forward and remove the mower deck drive belt
from the lower engine pulley.
10. Disconnect mower deck engagement cable (FIG. 7-MAINT)
from mower deck clutch spring.
11. Place in high cut position, deck can now be pulled out from
right side of unit.
12. Installation ofdeck is reverse of removal
ii
FRONT MOUNTING
BLADE DRIVE BELT REPLACEMENT
(FIG. 7-MAINT)
1. Remove mower deck. See Mower Deck Removal para-
graph.
2. Remove LH mowerdeck belt guard.
3. Note position of belt retainer on idler pulley so that
retainer can be reposltioned properly after belt installation.
Loosen idler pulley.
4. Remove old belt and replace with a new original
equipment belt.
5. Reinstall LH belt guard.
6. Reposifion belt retainer and retighten idler pulley.
7. Reinstall mower deck assembly.
8. Adjust belt as described in paragraph Blade Drive Belt
Adjustment in Adjustments section. Adjustment inAd-
justments section.
HAIRPIN COTTER
HITCH ROO
DECK HITCH EARS
HANGER PIN REAR LIFT ARM
LIFT Rl_
(RIGHT SIDE)
23
