Nonin 3150 Instructions For Use

To set up and use the Nonin Model 3150 pulse oximeter, please
follow the simple instructions below.
Instructions for Use
Model 3150
P/N 114989-001-01 03/2023 13700 1st Avenue North, Plymouth, MN 55441-5443 USA nonin.com

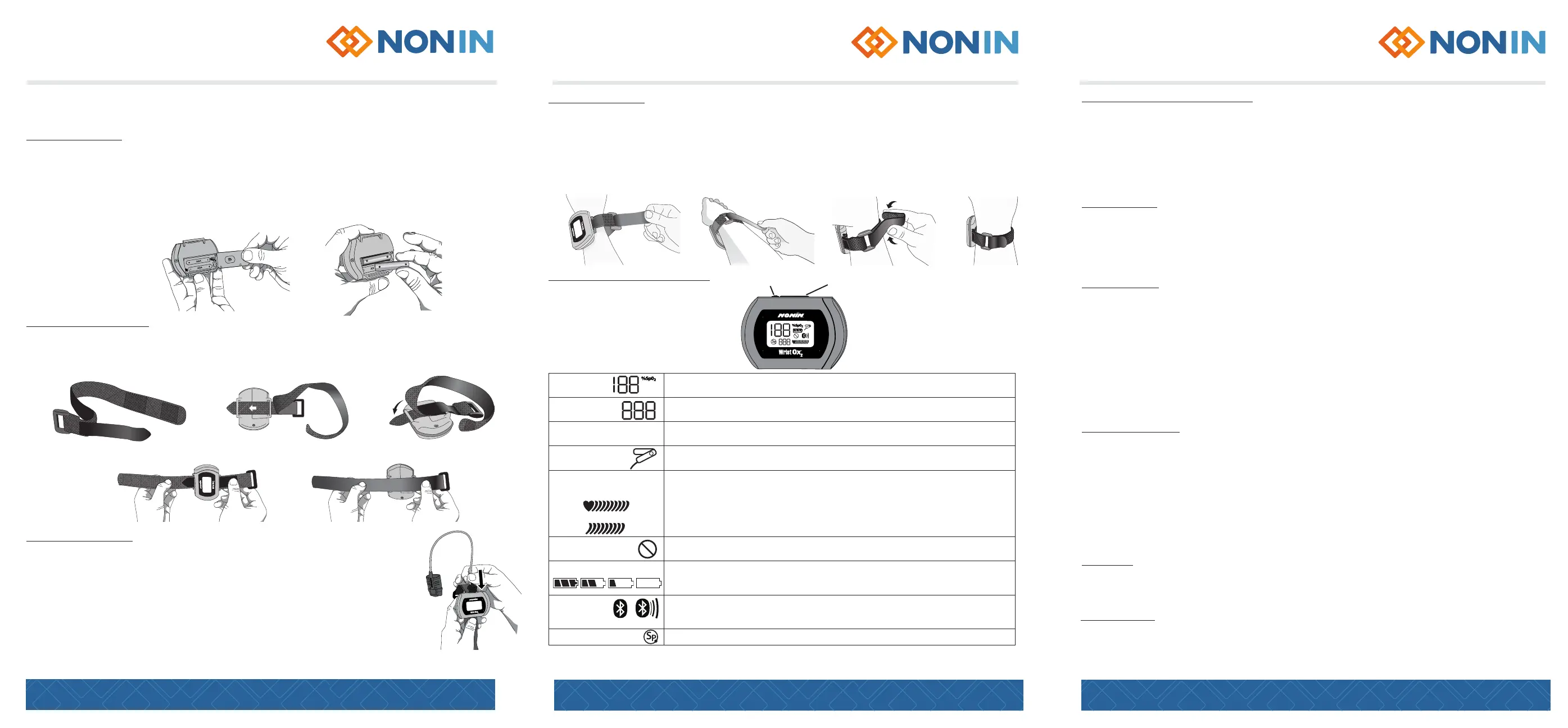

Installing Batteries
1. Open the battery compartment by sliding the battery door off the back of the device.
2. Insert 2 new AAA batteries. Battery orientation is shown inside the battery
compartment.
3. Replace battery door by sliding it back into place.
4. Inserting batteries does not turn the device on. In Spot Check Activation Mode, the device
turnsonwhenangerisinsertedinthesensor.
P/N 114989-001-01 03/2023 13700 1st Avenue North, Plymouth, MN 55441-5443 USA nonin.com
Instructions for Use
Model 3150
Displays, Controls, and Indicators
Please refer to the Operator’s Manual on nonin.com/support/wristworn
for troubleshooting guidance and more detailed operating instructions.
P/N 114989-001-01 03/2023 13700 1st Avenue North, Plymouth, MN 55441-5443 USA nonin.com
Instructions for Use
Model 3150
Bluetooth Connection (BLE Model only)
Before a Bluetooth collector device can connect and obtain data from the 3150 BLE the devices must
bepaired.The3150BLEwillbeinpairingmodethersttimeitisactivatedfollowingthedetectionof
batteryinsertion.WheninpairingmodetheBluetoothicononthedisplaywillashoncepersecond.
After a connection and successful pairing, the Bluetooth icon will remain solid.
Nonin’s WristOx
2
Model3150BLE,usesaBluetoothLowEnergyradiowithamaximumrange(spherical
radius)ofabout60meters(196feet).Obstaclesandotherconditionsmayaffectrangeandbatterylife.
Operating Modes
The WristOx
2
Model 3150, has two types of mode settings: Activation and Display, which are described
below. Activation modes determine how the 3150 turns off and on.
Spot Check Activation Mode is the factory default. Additional modes are available for the 3150, refer to
the Operator’s Manual for more information.
Memory Features
The WristOx
2
Model 3150 measures, collects, and stores up to 1,080 hours of SpO
2
and pulse rate data
with a 4-second data collection rate. Data collected at a 1 or 2-second rate reduces memory capacity to
270 or 540 hours, respectively.
When the memory is full, the device overwrites the oldest existing data with the new data. Each time
the device is turned on, data are automatically stored in memory. Data collection of less than 1 minute
is not retained in memory.
Nonin’s nVISION
®
software allows users to transfer recorded patient data from the device to a PC and
then analyze, report, and archive the data. The software is required to access the device’s additional
modes of operation and advanced features. See Operator’s Manual for more information on nVISION
®
.
Care and Maintenance
Clean the Model 3150 separately from the sensors. Please refer to the sensor’s Operator’s Manual for
information on how to clean the sensors and multiple use wristband.
To clean the Model 3150:
Wipethedevicewithasoftclothdampenedwitha10%bleach/90%watersolution(householdbleach
[containinglessthan10%sodiumhypochlorite]).Donotuseundilutedbleachoranycleaningsolution
other than those recommended here, as permanent damage could result. Dry with a soft cloth, or allow
to air dry. Clean once per week or more frequently if handled by multiple users.
Error Codes
This device includes error codes that indicate problems with the unit. See “Troubleshooting”
section with Operator’s Manual for codes and discriptions. If any indicator does not display, do not use
the device. Contact Nonin Technical Service for assistance.
Clinical Benets
Nonin pulse oximeters allow for the management of patients’ medical conditions by providing fast,
accurate, real-time, noninvasive oxygen measurement in order to meet patients’ medical needs.
Attaching the Wristband
The WristOx
2
Model 3150, is designed to be applied to the patient’s wrist using a wristband.
There are two wristbands available for the use with the WristOx
2
Model 3150 - a multiple use
wristband and a single use disposable wristband.
Long
Segment
Short
Segment
Thread Short
Segment
Secure Long
Segment
Front View
Back View
For more information on the displays, indicators, and controls, please refer to the Operator’s
Manual.
Sensor Port
Attaching the Sensor
1. Insert the sensor connector into the sensor port at the top of the device.
The Nonin logo on the sensor connector should face the front of the device.
2. Push the connector until it clicks into place.
3. The device is ready to use.
The sensor can be connected to the device before or after applying the device to the patient.
Refer to Operator’s Manual for applicable sensors and sizing.
%SpO2
Display
This 3-digit display, located in the upper left corner of the LCD, shows percent blood oxygen satu-
ration(%SpO
2
).Therangeisfrom0to100%
Pulse Rate
Display
This3-digitdisplay,locatedbelowthe%SpO
2
display, shows the pulse rate in beats per minute
(BPM).Therangeisfrom18to321BPM.
Activation Switch
The activation switch is located next to the sensor port at the top of the WristOx
2
Model 3150.
Pressing the switch will turn on the device.
Sensor
Fault Indicator
Thisindicatordisplaysifthedevicedeterminesasensorfaultexists(e.g.,sensordisconnect,misalign-
ment,orincompatibilitywiththedevice).Italsodisplayswhenthengerisremovedfromthesensor.
Pulse Strength Indicator
- Full/Partial Display mode
- Memory Volume Display mode
A pulse strength indicator displays when the device is recording data. The bars on the display
depends on the pulse strength as determined by the oximeter.
This heart-shaped indicator is followed by up to nine curved bars and displays next to the pulse
rate.
This indicator consists of up to nine curved bars and displays next to the minutes of stored data.
Poor Pulse Signal
Indicator
This indicator displays when the pulse signal is inadequate or the device does not sense a pulse.
It may also display if there is excessive motion at the sensor site.
Battery Indicator
Thisindicatorshowsremainingbatterylifeaseitherfull,half,low,andcritical(asshownatleft).
Replace the batteries when device reaches low state.
Bluetooth
Indicator
(BLEModelonly)
The Bluetooth indicator is used to show the current condition of the Bluetooth radio.
SmartPoint Indicator This indicator displays during the startup sequence.
Activation Switch
Patient Application
1. Verify the wristband has been attached properly to the device.
2. Place the device on the patient’s wrist.
3. If using the multiple use wristband, thread the rounded end of the wristband through the
plasticring.Pullthestrapthroughtheplasticringuntilthedevicetscomfortablyonthe
wrist.
4. Fold the wristband back over the plastic ring and attach the fastener to the wristband.

Nonin 3150 Specifications

General

Device Type	Pulse Oximeter
Model	3150
Brand	Nonin
SpO2 Range	0 - 100%
Pulse Rate Accuracy	±3 digits
Display Type	LED
Battery Type	2 AAA alkaline batteries
Bluetooth	Yes
SpO2 Accuracy	±2% (70-100%)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Humidity Range	10% to 95% non-condensing
Altitude Range	Up to 12, 000 feet
Pulse Rate Range	18 - 321 bpm
Weight	60 grams (including batteries)
