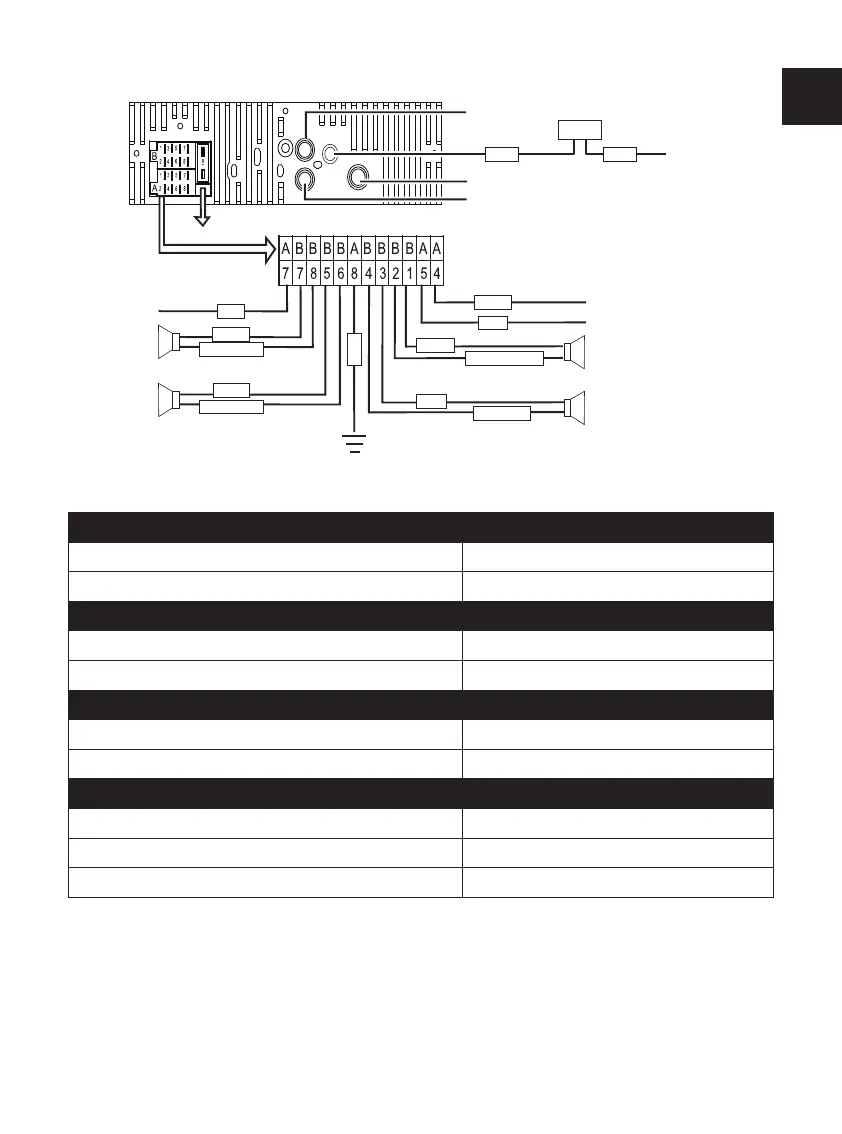

V. INSTALLING THE DEVICE
Front left audio output (white)
DAB antenna feed signal
interface
DAB antenna feed
interface
Fuse 10 A
Connect to battery cathode
Connect to battery cathode
Connect to automatic antenna
Connect with a DAB antenna
Radio antenna socket
Front right audio output (Red)
Connect with
a car key
Connect to a
car key
Left rear speaker
Right rear speaker
Left front speaker
Right front speaker
DAB
Black
Yellow
Red
Green
White
Green black
White black
Purple
Grey
Atropurpureus
Black grey
Blue
Black
Black
VI. SPECIFICATIONS
FM/ DAB TUNER
Tuning range (FM) 87,5 MHz-108 MHz
Tuning range (DAB) 174 MHz-240 MHz
MP3-PLAYER
Frequency response 100 Hz - 10k Hz
Channel separation ≥ 30dB
BLUETOOTH TUNER
Frequency range 2402 ~ 2480MHz
Radio frequency max output power -1.35dBm
GENERAL INFORMATION
Tension 12V DC
Loudspeaker impedance 4-8 ohms
Max output power 4x 45 W
