Connecting the charger and charge the Battery with the Battery Clamps
IMPORTANT: Before start connecting, unplug the battery Charger AC cord from the AC
outlet. Disconnect the battery clamps from the unit at output cord connector.
The charger’s battery clamps are color-coded (RED-POSITIVE and BLACK-NEGATIVE).
3
1
2
4

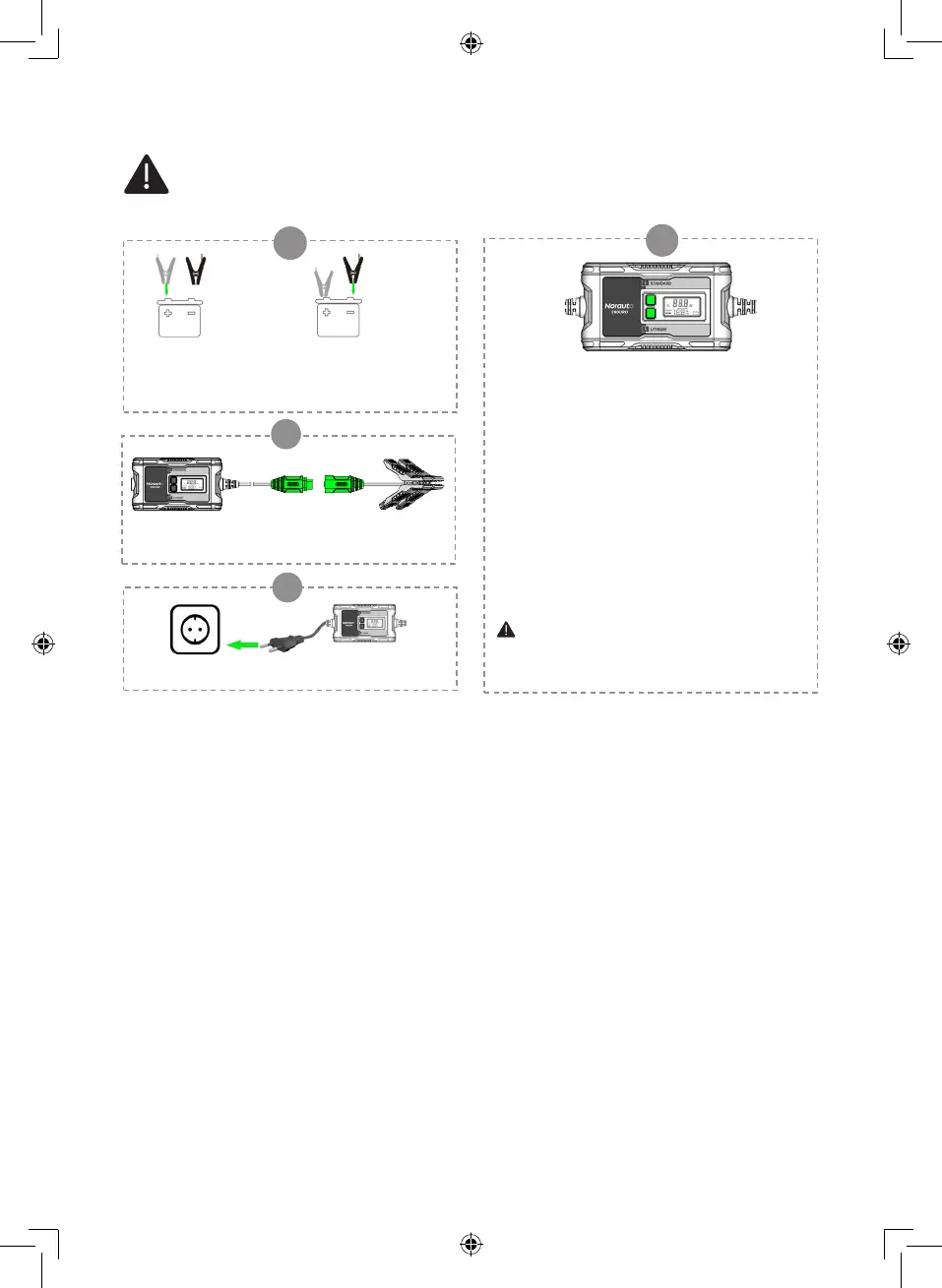

1 - Connect the RED POSITIVE clamp to the
POSITIVE post of the battery.
2 - Connect the BLACK NEGATIVE clamp to the
NEGATIVE post of the battery.
* The charger remains in Float Charge Mode as
long as the charger is connected to the battery
and is plugged into a functioning AC mains
socket.
To Start the Charging
If 6V or 12V Lead-acid battery,
Press STANDARD, to select the charging voltage
mode (6V or 12V) according to the battery voltage.
If 12V Lithium battery, Press LIUTHIUM.
Attention: Please wait for few seconds to toggle
the 6V or 12V or Lithium battery charging mode by
pressing the button.
CAUTION: Lithium charging mode is only for
12V lithium battery. DO NOT connect to a 6V or
24V DC battery system or other type batteries.
Connect the battery clamp connector to the unit
connector, as far away from the battery as possible.
Plug the unit onto the power socket.
To Next Page
