Connect the Water Dispenser
The water dispenser is assembled to the refrigerator at the factory as optional equipment. If the refrigerator does not have a factory
installed water dispenser, one can not be added to the refrigerator at a later time.
The refrigerator installer must connect a cold water supply line to the solenoid valve at the rear of the refrigerator. The following are
necessary to connect the water dispenser.
- 1/4 in. OD copper tubing for the water supply line.
OR
- 1/4 in. OD plastic tubing for the water supply line.
- 1/4 in. shut off valve in the water supply line. This should be easily accessible
through the lower intake vent.
Connect the water supply line:

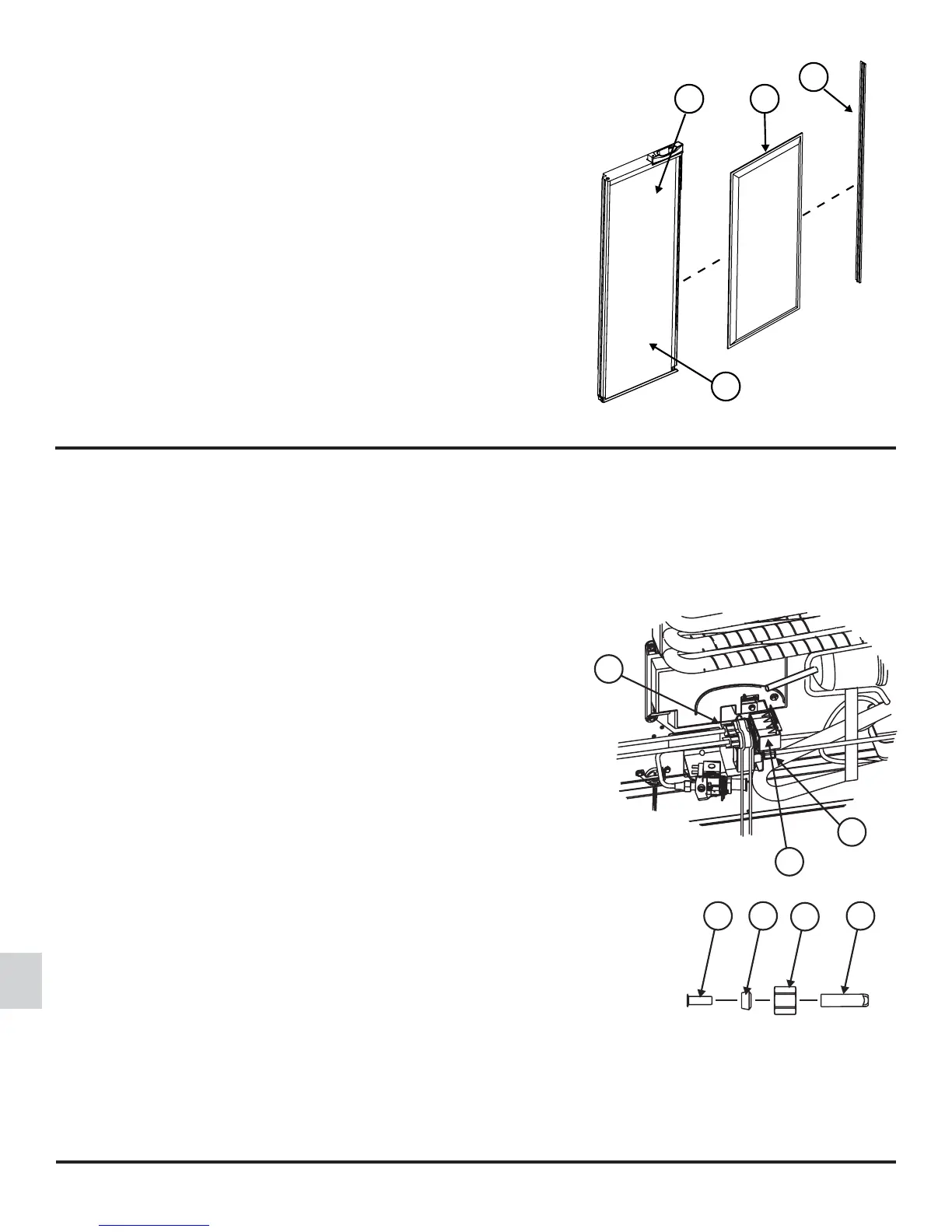

Install a 1/4 in. OD water supply line [1] from the water shut off valve of the vehicle
to the solenoid water valve [2] at the rear of the refrigerator (See Art01724):
NOTE: A brass compression nut [1], a brass sleeve, a plastic sleeve [2] , and a
brass insert [3] are supplied and attached to the rear of the refrigerator
(See Art01702).
- Put the compression nut and then the sleeve onto the water supply line [4].
- For copper tubing, use the brass sleeve.
- For plastic tubing, use the plastic sleeve [2].
3. Make a lower LH door panel that is 16 13/64 inches wide x 34 13/64 inches
high:
- Raised panels must be centered on the lower LH door and no larger than 15
11/32 inches wide x 33 37/64 inches high.
4. Install the decorative door panels:
- Pull the panel retainer [1] off of each door [2] (See Art01794):
- Push a decorative door panel [3] into the slots of each door.
- Make sure that each panel retainer is correctly positioned and push the curved
snap [4] of the panel retainer [5] inside of the curved snap [6] of the door (See
Art01797).
- Make sure that the decorative door panel [3] of the lower LH refrigerator door is
behind the water dispenser panel [7].
39
38
37
39
Art01797
1
Art01724
3
2
Art01702
3
4
2
1
