A. RV Water Line
B. Rear Anchor screws
C. Ice maker AC power cord
D. Propane Supply
E. Temperature Monitor Control
F. +12VDC RV supply
G. +12VDC input wire
H. 12VDC ground wire
I. Drain hose
J. Main power cord
K. Drip Cup
L. RV Access Air Intake
M. Power Board
N. Refrigerator gas valve
1. Turn off refrigerator at control panel.
2. Open service access/air intake vent (Fig.1,L).
3. Unplug refrigerator’s main 120 VAC power cord (Fig.1,J)
from RV
receptacle AND power board.
4. If ice maker equipped, unplug ice maker power cord (Fig.1,C).
Caution! Short circuits possible. Locate 12 VDC breaker/
fuse for unit; then turn off unit or remove fuse. Insulate the
RV’s +12 VDC supply line with electrical tape to avoid short
circuits, blown fuses or breakers.
5. Disconnect RV +12VDC (Fig.1,F) input wire from power board
(Fig.1,G).
6. Disconnect RV’s 12VDC ground wire (Fig.1,H) from power board
terminal.
7. Disconnect the vehicle DC power from the cold weather kit.
8. Remove the cold weather kit thermostat (2x).
!
1.1
Disconnect Electrical
Shut Down, cont’d.
Note: Skip this step if the refrigerator is not equipped with
ice maker / water dispenser.
1. Turn off water shut-off valve or RV water pump.
2. Relieve water pressure using RV sink.
Danger!!! Shock hazard. Be sure AC and DC electrical
power to the refrigerator are turned off.
3. Disconnect the incoming waterline at the refrigerator’s water valve
(Fig.1,A).
!
1.2
Disconnect Water Line
1.3
Disconnect Propane
1. Close propane supply valve at propane tank.
Danger!!! Fire and explosion hazard. Shut down both AC
and DC electrical power BEFORE disconnecting the propane
supply line. Failure to comply could result in death, serious
injury, or destruction of property.
Danger!!! Fire and explosion hazard. Always use two
wrenches to remove or install gas fi ttings-do not overtighten!
Failure to comply could damage fi ttings which could cause
dangerous propane leak leading to
death or destruction of property.
2. Use wrenches to disconnect RV’s propane supply line (Fig.1,D)
from the refrigerator’s gas valve (Fig.1,N).
!
!
2
Disassemble

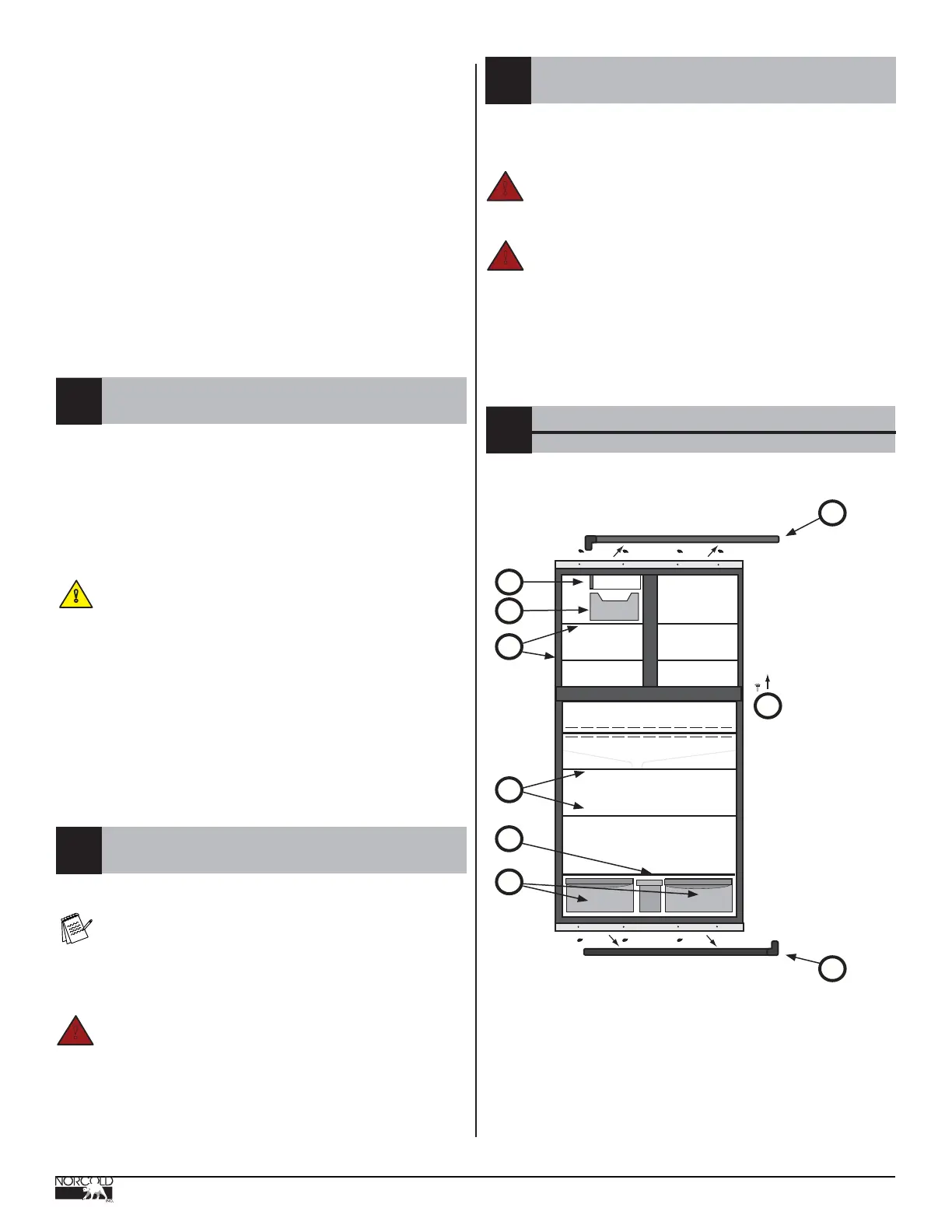

Fig. 2 - 2118 Interior
H
A
B
C
D
E
F
G
NOR000269A
G
To Next Page
