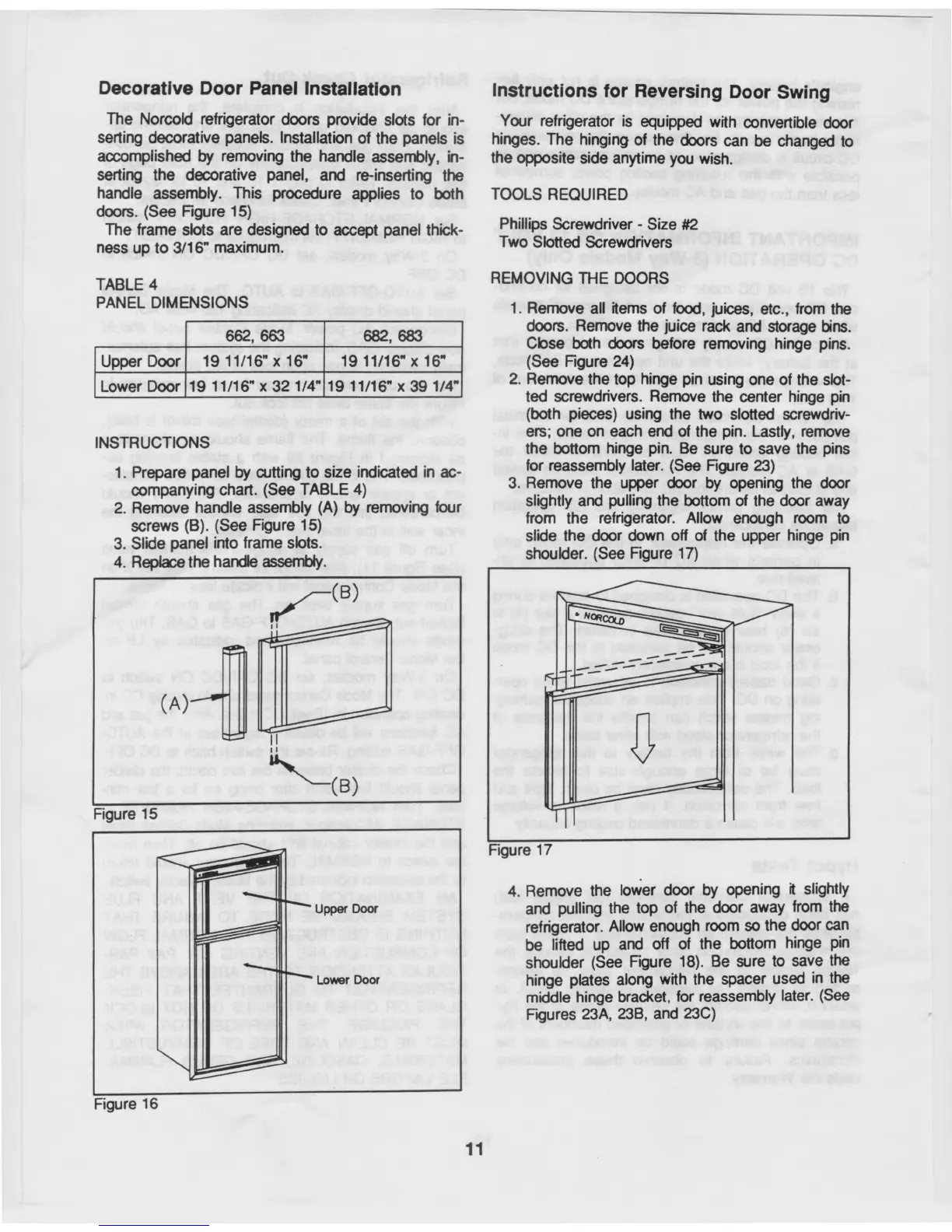

Decorative Door Panel Installation
Instructions for Reversing Door Swing
The Norcold refrigerator doors provide slots for in-
Your refrigerator is equipped with convertible door
serting decorative panels. Installation of the panels is
hinges. The hinging of the doors can be changed to
accomplished by removing the handle assembly, in-
the opposite side anytime you wish.
serting the decorative panel, and re-inserting the
handle assembly. This procedure applies to both
TOOLS REQUIRED
doors. (See Figure 15)
-
The frame slots are designed to accept panel thick-
Phillips Screwdriver Size #2
ness up to 3/16" maximum.
Two Slotted Screwdrivers
TABLE 4
PANEL DIMENSIONS
662, 663
682, 683
Upper Door 19 11/16" x 16"
19 11/16" x 16"
Lower Door 19 11/16" x 32 1/4" 19 11/16" x 39 1/4"
INSTRUCTIONS
1.
Prepare panel by cutting to size indicated in ac-
companying chart. (See TABLE 4)
2.
Remove handle assembly (A) by removing four
screws (B). (See Figure 15)
3.
Slide panel into frame slots.
4.
Replace the handle assembly.
Figure 15
Figure 16
REMOVING THE DOORS
1.
Remove all items of food, juices, etc., from the
doors. Remove the juice rack and storage bins.
Cbse both doors before removing hinge pins.
(See Figure 24)
2.
Remove the top hinge pin using one of the slot-
ted screwdrivers. Remove the center hinge pin
(both pieces) using the two slotted screwdriv-
ers; one on each end of the pin. Lastly, remove
the bottom hinge pin. Be sure to save the pins
for reassembly later. (See Figure 23)
3.
Remove the upper door by opening the door
slightly and pulling the bottom of the door away
from the refrigerator. Allow enough room to
slide the door down off of the upper hinge pin
shoulder. (See Figure 17)
Figure 17
4.
Remove the lower door by opening it slightly
and pulling the top of the door away from the
refrigerator. Allow enough room so the door can
be lifted up and off of the bottom hinge pin
shoulder (See Figure 18). Be sure to save the
hinge plates along with the spacer used in the
middle hinge bracket, for reassembly later. (See
Figures 23A, 23B, and 23C)
