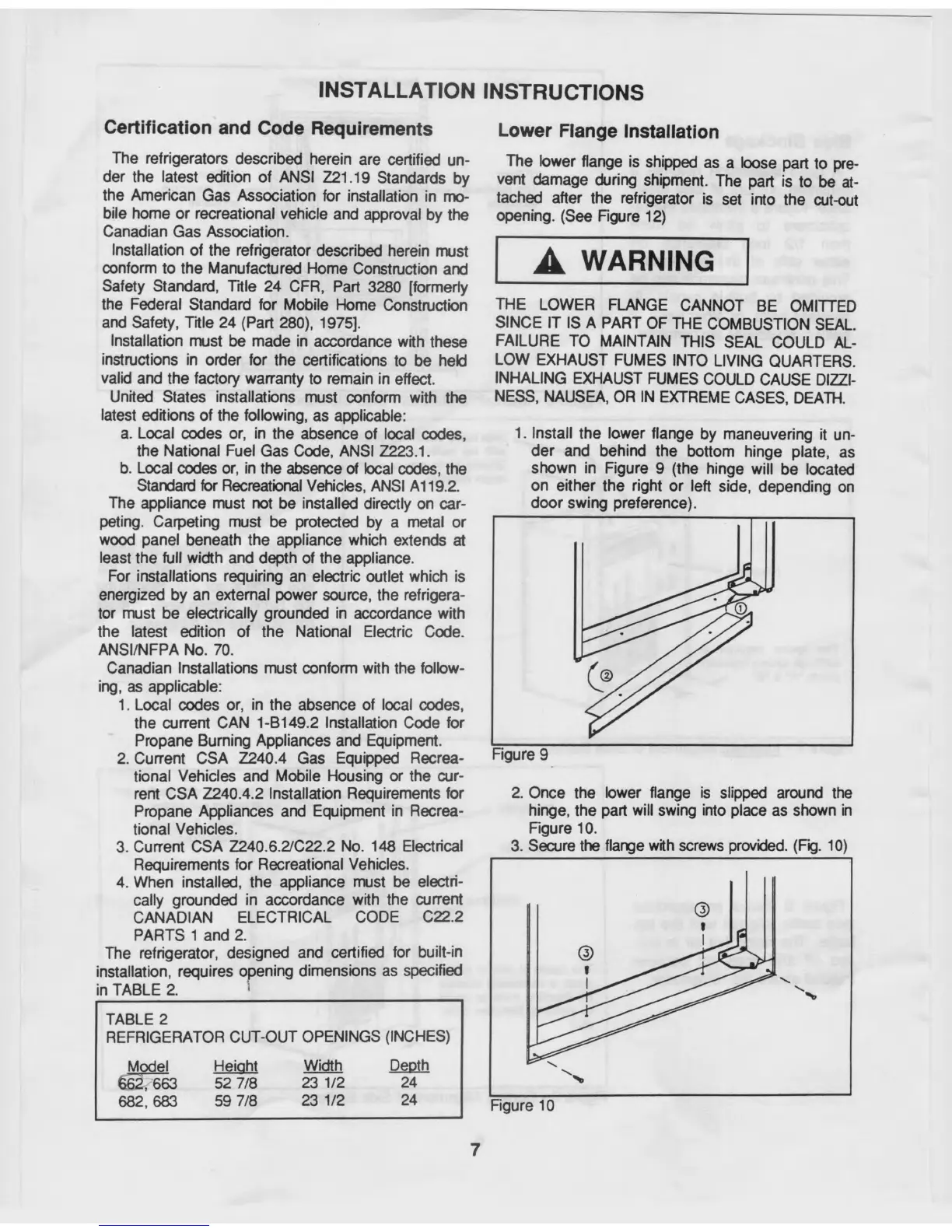

INSTALLATION INSTRUCTIONS
Certification and Code Requirements
The refrigerators described herein are certified un-
der the latest edition of ANSI 221.19 Standards by
the American Gas Association for installation in mo-
bile home or recreational vehicle and approval by the
Canadian Gas Association.
Installation of the refrigerator described herein must
conform to the Manufactured Home Construction and
Safety Standard, Title 24 CFR, Part 3280 [formerly
the Federal Standard for Mobile Home Construction
and Safety, Title 24 (Part 280), 1975].
Installation must be made in accordance with these
instructions in order for the certifications to be held
valid and the factory warranty to remain in effect.
United States installations must conform with the
latest editions of the following, as applicable:
a.
Local codes or, in the absence of local codes,
the National Fuel Gas Code, ANSI Z223.1.
b.
Local codes or, in the absence of local codes, the
Standard for Recreational Vehicles, ANSI A119.2.
The appliance must not be installed directly on car-
peting. Carpeting must be protected by a metal or
wood panel beneath the appliance which extends at
least the full width and depth of the appliance.
For installations requiring an electric outlet which is
energized by an external power source, the refrigera-
tor must be electrically grounded in accordance with
the latest edition of the National Electric Code.
ANSI/NFPA No. 70.
Canadian Installations must conform with the follow-
ing, as applicable:
1.
Local codes or, in the absence of local codes,
the current CAN 1-B149.2 Installation Code for
Propane Burning Appliances and Equipment.
2.
Current CSA Z240.4 Gas Equipped Recrea-
tional Vehicles and Mobile Housing or the cur-
rent CSA Z240.4.2 Installation Requirements for
Propane Appliances and Equipment in Recrea-
tional Vehicles.
3.
Current CSA Z240.6.2/C22.2 No. 148 Electrical
Requirements for Recreational Vehicles.
4.
When installed, the appliance must be electri-
cally grounded in accordance with the current
CANADIAN ELECTRICAL CODE C22.2
PARTS 1 and 2.
The refrigerator, designed and certified for built-in
•nstallation, requires opening dimensions as specified
in TABLE 2.
TABLE 2
REFRIGERATOR CUT-OUT OPENINGS (INCHES)
Model
Height
Width
Depth
662, 663
52 7/8
23 1/2
24
682, 683
59 7/8
23 1/2
24
Lower Flange Installation
The lower flange is shipped as a loose part to pre-
vent damage during shipment. The part is to be at-
tached after the refrigerator is set into the cut-out
opening. (See Figure 12)
A
WARNING
THE LOWER FLANGE CANNOT BE OMITTED
SINCE IT IS A PART OF THE COMBUSTION SEAL.
FAILURE TO MAINTAIN THIS SEAL COULD AL-
LOW EXHAUST FUMES INTO LIVING QUARTERS.
INHALING EXHAUST FUMES COULD CAUSE DIZZI-
NESS, NAUSEA, OR IN EXTREME CASES, DEATH.
1. Install the lower flange by maneuvering it un-
der and behind the bottom hinge plate, as
shown in Figure 9 (the hinge will be located
on either the right or left side, depending on
door swing preference).
Figure 9
2.
Once the lower flange is slipped around the
hinge, the part will swing into place as shown in
Figure 10.
3.
Secure the flange with screws provided. (Fig. 10)
Figure 10
7
