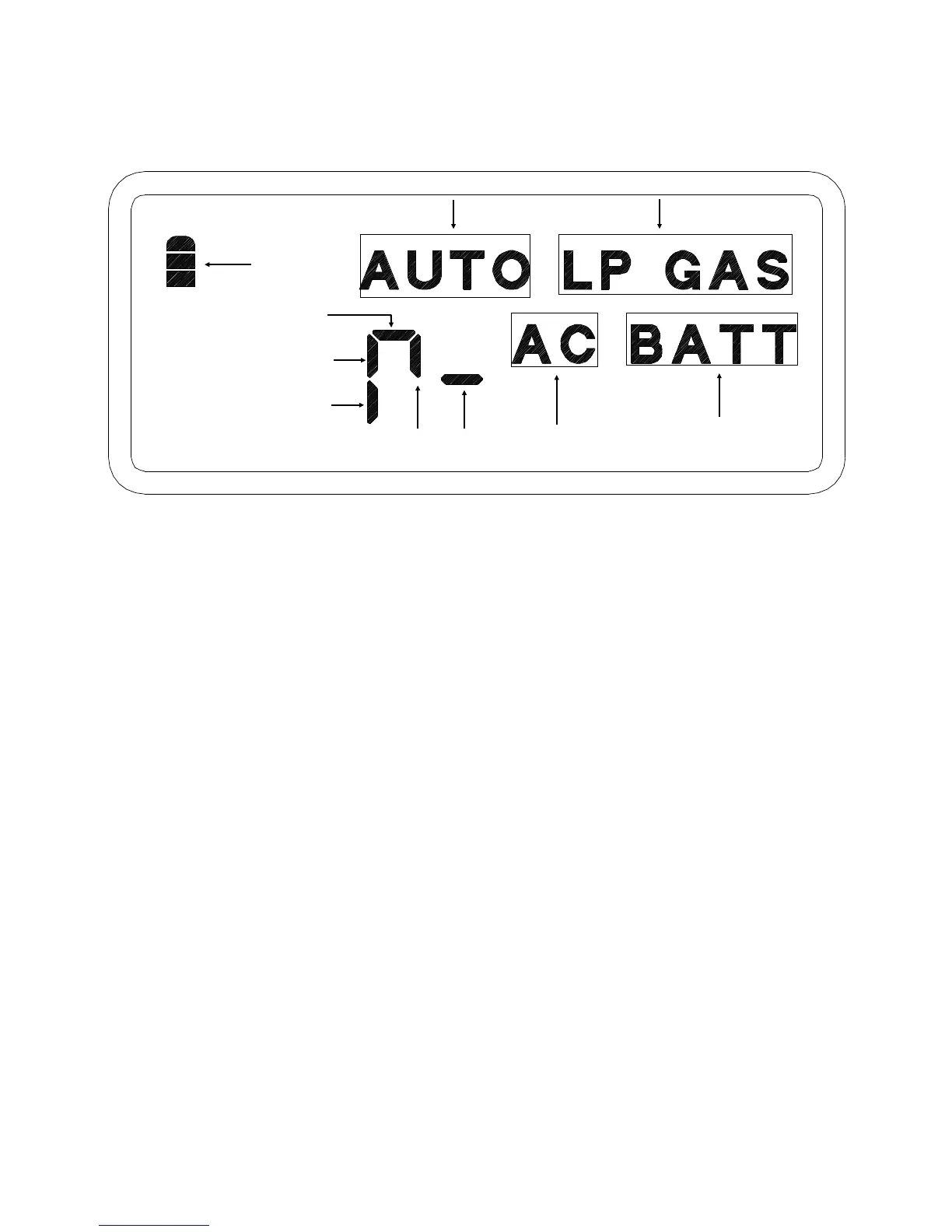

Screen No. 3
On this screen, the refrigerator control illuminates an image which is a real time indication of control activity.
A. Identifies information screen.
B. All modes of operation. When this bar is illuminated, it signifies that the controls are calling for cooling.
C. When operating in the "AC" electric mode, when this bar is illuminated, it signifies that AC voltage
is present and within specifications (108 VAC min.-132 VAC max.)
D. All modes of operation. When illuminated, this bar signifies that the fresh food compartment door
has been opened for more than 2 minutes.
E. All modes of operation. When illuminated, this bar signifies that the control’s temperature sensing
circuit is satisfied and not calling for cooling.
F. When operating in the "LP GAS" mode, when this bar is illuminated, it bar signifies that a flame is present at the burner.
G. When "AC" is illuminated, the current operating mode is AC electric
H. When "BATT" is Illuminated, the current operating mode is BATT (DC electric)
I. When "LP GAS" is illuminated, the current operating mode is LP GAS.
J. When "AUTO" is illuminate, the current operating mode is AUTO.
C
D
E
F
G
J
I
A
B
Figure 7
H
21
