This appliance has been designed for refrigerating purposes and is operable on either
120
V.A.C. or
12
V.D.C. when
installed as directed by this owner’s manual.
The location of the model and serial number may be found attached to the front bottom trim rail or on the cabinet
liner immediately adjacent to the trim rail.
Before installing your refrigerator, record and retain the model and serial number for future reference and warranty
purposes.
IMPORTANT
THIS REFRIGERATOR
IS
DESIGNED
TO
OPERATE ON POWER SUPPLY LIMITS AS FOLLOWS:
120 VOLT AC OPERATION: 132 VOLTS MAX, 108 VOLTS MIN.
61 HERTZ MAX,
59
HERTZ MIN.
12 VOLT DC OPERATION: 15.4 VOLTS MAX,
10
VOLTS MIN.
OPERATION
ON
POWER SUPPLIES EXCEEDING THESE LIMITS MAY CAUSE DAMAGE AND VOID THE WARRANTY.
WHEN OPERATING ON 12 VOLTS D.C., A BATTERY SOURCE MUST BE USED. OPERATING THE REFRIGERATOR ON A
CONVERTOR
OR
BATTERY CHARGER ALONE (WITHOUT A BATTERY IN THE CIRCUIT)
IS
NOT RECOMMENDED SINCE
THESE DEVICES DO NOT NORMALLY SUPPLY A FILTERED D.C. SOURCE. UNSATISFACTORY OPERATION WILL RESULT.
The Norcold dual voltage refrigerator is designed for the recre-
ational vehicle, Marine industry, as well as under counter ins-
tallations. A typical
R.V.
installation, for instance, requires the
refrigerator
to
operate on
12
VDC while in transit and
120
VAC while parked. The Norcold refrigerator easily converts
from one power source to the other.
Unlike the absorption
-
type refrigerator which requires a con
-
stant heat source for efficient operation, your dual
-
voltage re
-
frigerator operates on the same principle as the standard do
-
mestic refrigerator
-
that is, it has an electrically
-
operated
compressor and uses freon as its refrigerating medium.

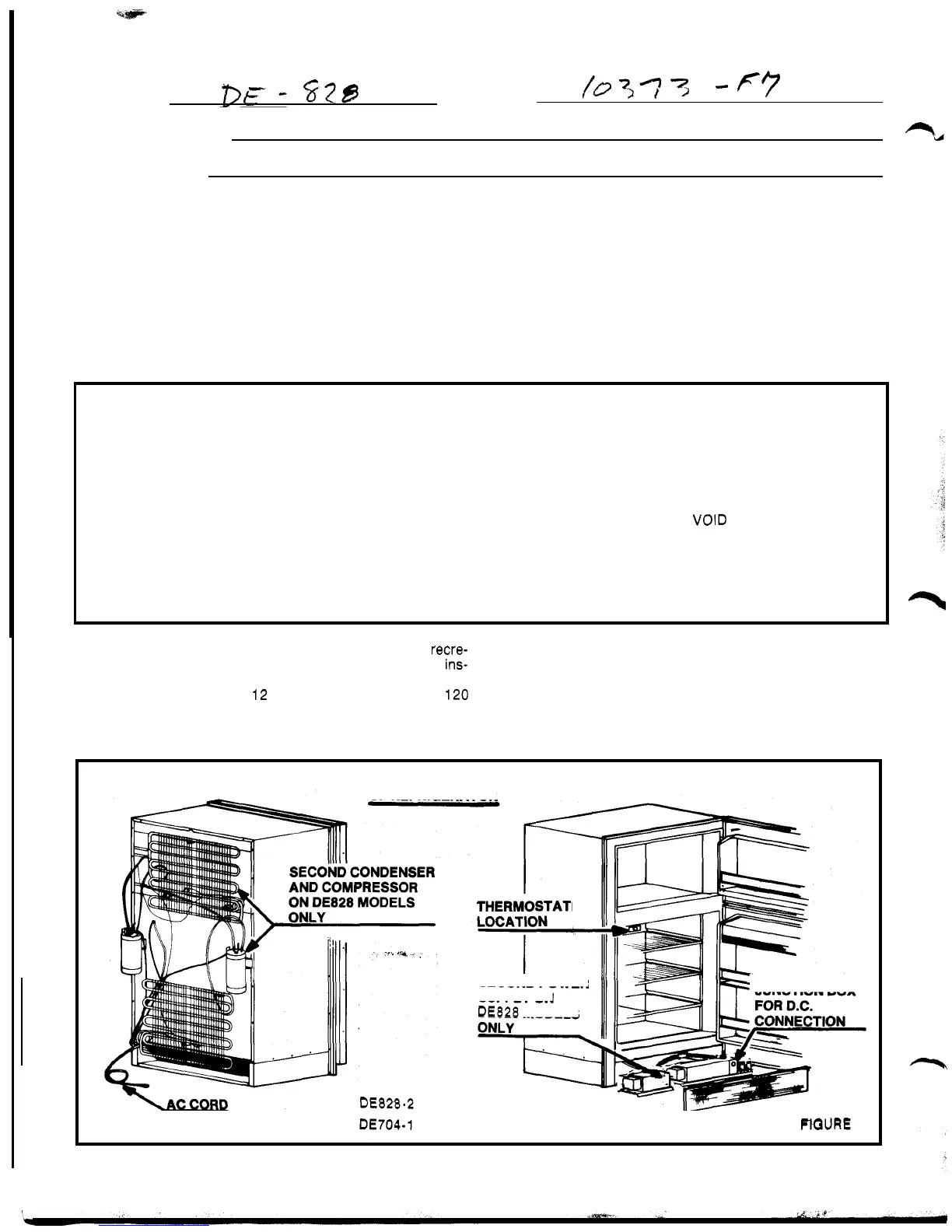

GENERAL VIEWS
JUNCTION BOX
DE828-2
DOOR
MODEL,
DE704-1 DOOR MODEL.
FtQURE
1
OF
REFRIGERATOR
..\
’“4
.
SECOND
POWER
SUPPLY ON
DE828 MODELS
2
I
‘WW
