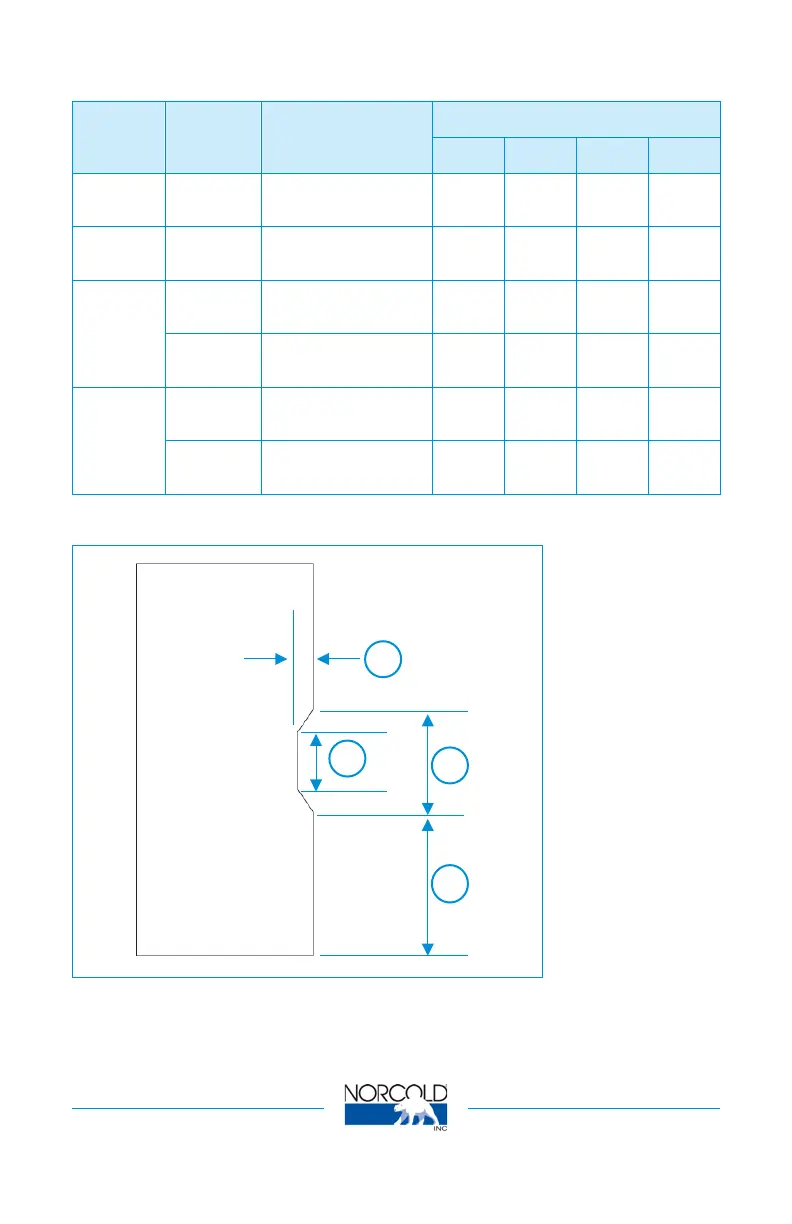

Table 5: Panel sizes
Model
Door type
Panel size
Handle Cutout
A B C D
N2090 Flat H 34.5in x W 15.7in
[H 877mm x W 399mm]
1.4in
[36mm]
5.1in
[128mm]
9.2in
[233mm]
12.7in
[323mm]
N2152 Flat H 54.9in x W 15.7in
[H 1394mm x W 399mm]
1.4in
[36mm]
5.1in
[128mm]
9.2in
[233mm]
22.9in
[581mm]
N2160 Flat cabinet H 27.6in x W 19.6in
[H 700mm x W 499mm]
1.5in
[37mm]
4.8in
[122mm]
9.2in
[233mm]
9.2in
[234mm]
Flat drawer H 15.0in x W 19.6in
[H 382mm x W 499mm]
1.6in
[40mm]
5.1in
[129mm]
9.6in
[243mm]
5.1in
[130mm]
N2175 Flat cabinet H 27.6in x W 19.6in
[H 700mm x W 499mm]
1.5in
[37mm]
4.8in
[122mm]
9.2in
[233mm]
9.2in
[234mm]
Flat drawer H 15.0in x W 19.6in
[H 382mm x W 499mm]
1.6in
[40mm]
5.1in
[129mm]
9.6in
[243mm]
5.1in
[130mm]
• Door panel thickness should be .05in - .10in [1.2mm-2.7mm]
B
A
C
D
