Norcold N2175 - Removing Refrigerator Components; Slide-out Box Removal; Drawer Removal Procedures

14
•

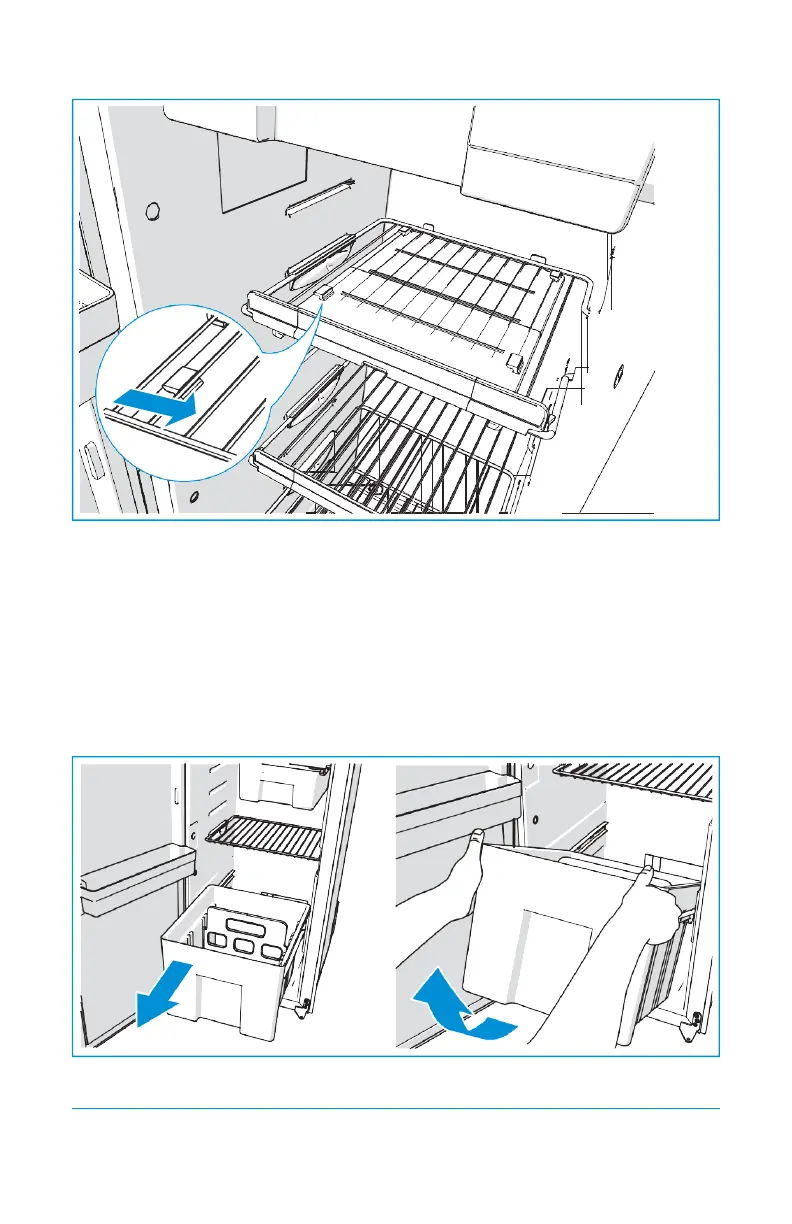

Remove and clean the slide−out box system.
•
After cleaning, place the system back in reverse order.
•
Make sure the slide−out box system snaps into place.
Removing drawer (N2152 and N2175)
To remove the drawer (N2152and N2175):
•
Completely open the refrigerator door and pull the drawer until the stop.
•
Then lift the drawer at the front, as illustrated.
