SERVICE MANUAL
9
www.norcold.com
No. Description
T Cooling Unit
U Fins
V AC Heater
W Gas Train Assembly
X Gas Train Support Bracket / Burner Door Assembly
Y Drip Cup
Z DC Board Assembly (3-way models only)
AA Red Input Wire (3-way models only)
AB Black Input Wire (3-way models only)
AC Communication Harness (3-way models only)
AD AC Power Cord
AE Main Control Board Assembly (Power Board Assembly)
AF Fan

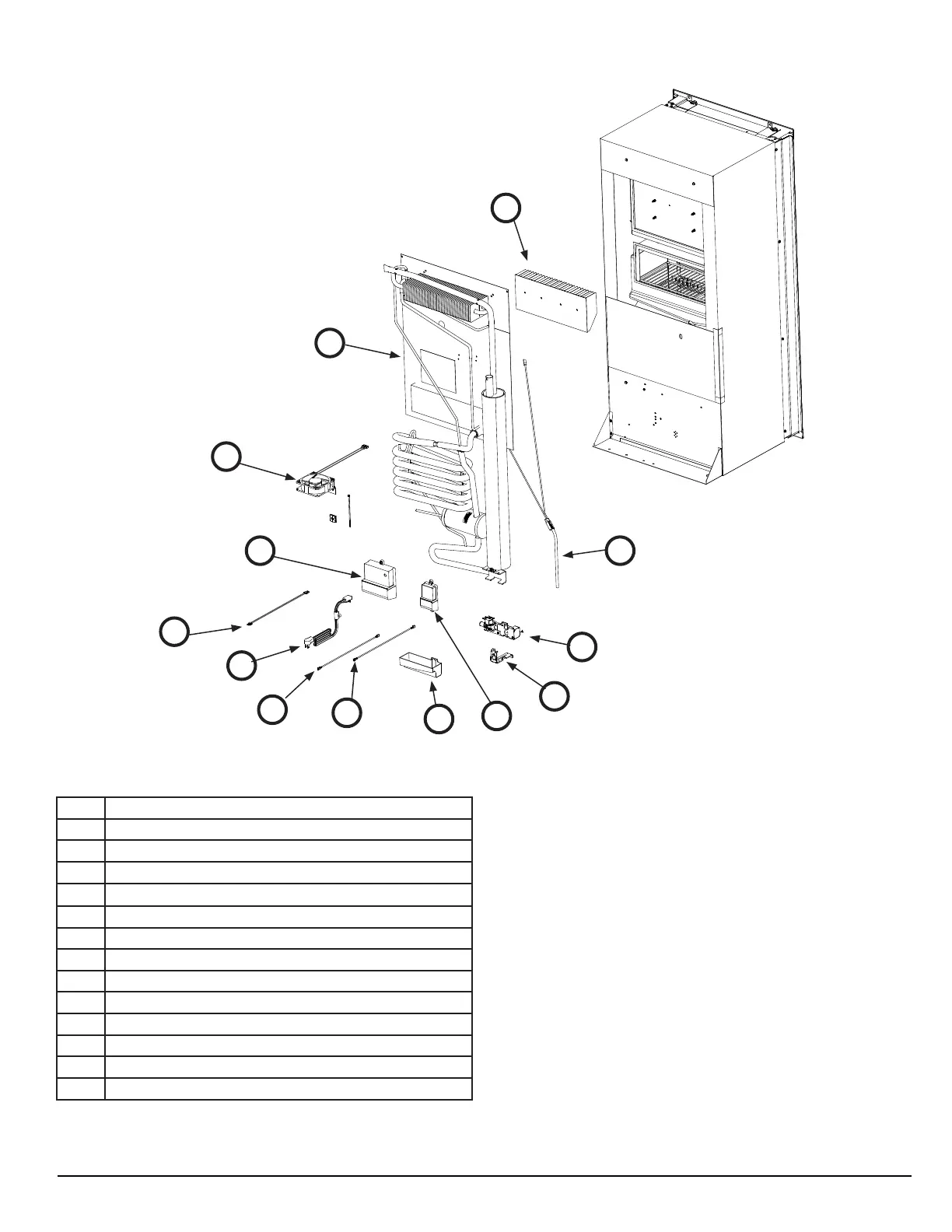

Fig. 5 - Exploded rear view
SPECIFICATIONS - Exploded Views, cont’d.
U
V
W
X
Z
Y
AB
AA
AD
AC
AE
AF
NOR000725A
T
