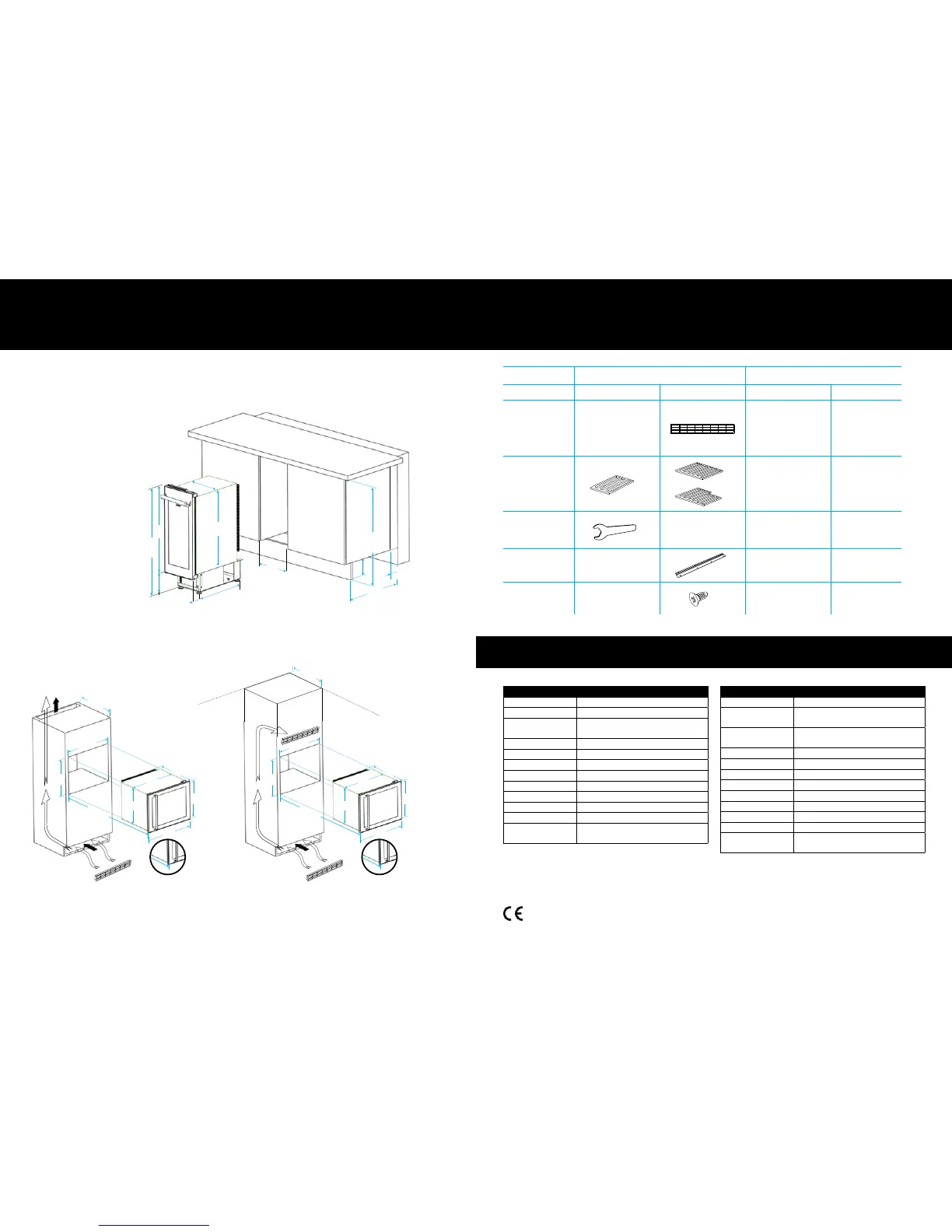

10. Installing the appliance
11. Package list
5150
• Plug the appliance in.
• Before installing in a kitchen unit, screw the supplied xing plate onto the appliance.
• Slide the appliance into the recess leaving the aluminium frame of the door outside the recess.
• Fasten the appliance in place with screws through the top bracket.
Description
Built UnderBuilt Under Built InBuilt In
Quantity
10.4. Ventilation
The air at the back panel of the appliance will warm up. This warm air must be able to escape. Your appliance is designed
to provide this ventilation. Air inlets and outlets must not be covered or blocked in any way. This will reduce the appliance’s
capacity and increase power consumption.
10.5. Installation
10.5.1. Cave 20 Built Under
• Connect the appliance to the mains.
• Make sure your mains connection is readily accessible.
• Align the appliance to the height of the recess by adjusting the adjustable feet using the spanner supplied.
• Slide the appliance into the recess. Make sure the power cord does not become trapped.
• The appliance should not be in direct contact with the oor when being slid into place since this could damage the oor.
10.5.2. Cave 20 Built In
1
8
2 2
Wooden Shelf
Recess
Fixing Plate
Screw
12. Technical information
TECHNICAL INFORMATION CAVE 20 BU
Exterior dimensions B295 x H845-905 x D567mm
Niche dimensions B300 x H845 (min) x D580mm
Capacity Approx. 16 standard 75 cl.
wine bottles
Climatic class N
Energy consumption 84,63 kWh/year
Energy class A+
Noise level 38 db (A)
Volt/ hz 220-240V AC 50 Hz
Lighting LED
Weight 32 kg
Coolant R600
Thermostat setting 6-18°C upper zone and
6-18°C lower zone
TECHNICAL INFORMATION CAVE 20 BI
Exterior dimensions B559 x H447 x D570mm
Niche dimensions (Min)B562-568(Max) x H450 (min) x
D550
Capacity Approx. 22 bottles standard
75 cl. wine bottles
Climatic class N
Energy consumption 85,69 kWh/year
Energy class A+
Noise level 40 db (A)
Volt/ hz 220-240V AC 50 Hz
Lighting LED
Weight 32 kg
Coolant R600
Thermostat setting 6-18°C upper zone and
15-18°C lower zone
This appliance has been designed, manufactured and marketed in compliance with: - safety objectives of the “Low Voltage” Directive 2006/95/CE
(which replaces 73/23/CEE and subsequent amendments); - the protection requirements of Directive “EMC” 2004/108/EC.
Electrical safety of the appliance can only be guaranteed if it is correctly connected to an approved earthing system.
Air Grille
2
295
630.5
300
140 - 200
460
107
700
845 - 905
846 - 906
145 - 205
min - max
>
=
580
min. 200 cm
2
min. 200 cm
2
562-568
559
589
570
450
448
455
>=550
ca. 30 mm
min. 200 cm
2
562-568
559
589
570
450
448
455
ca. 30 mm
>=550
min. 200 cm
2
