Assembly Instructions

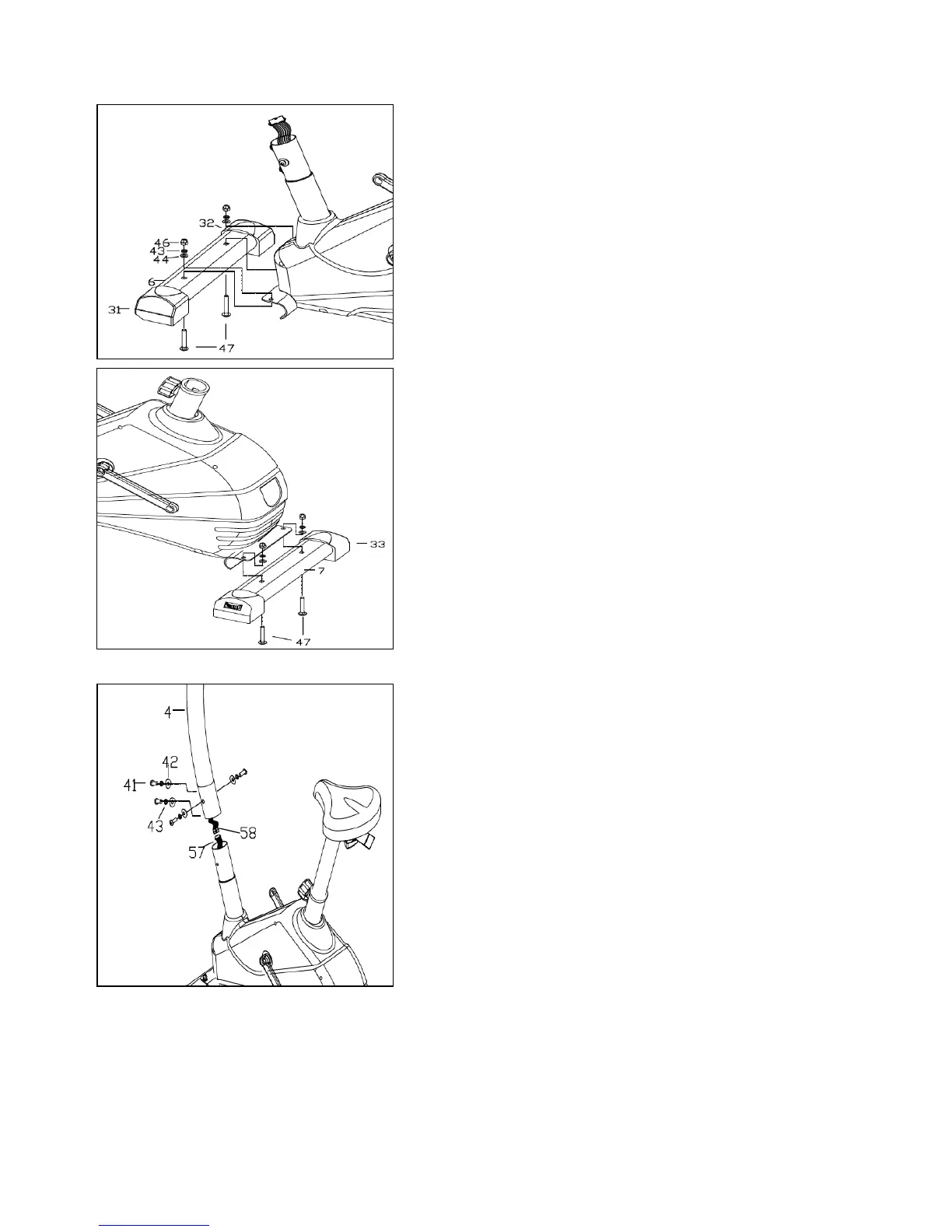

1. Fasten Front Foot (6) to the Base Frame (1) using 2 x (47),
2 x (44), 2 x (43) and 2 x (46) as indicated.
2. Fasten Rear Foot (7) to the Base using 2 x (47), 2 x (44), 2
x (43) and 2 x (46) as indicated.
3. Connect Computer Upper Cable (58) to Computer Wire
(57).
4. Insert the Handlebar Post (4) into the Base (1) and attach it
with 4 x (42), 4 x (43) and 4 x (41).
