INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you have purchased the optional chest pulse sensor (see page
21), follow the steps below to install the
receiver included with the optional chest pulse sensor.
1. Look under the Console (17) and locate the access
cover. Remove the access cover.

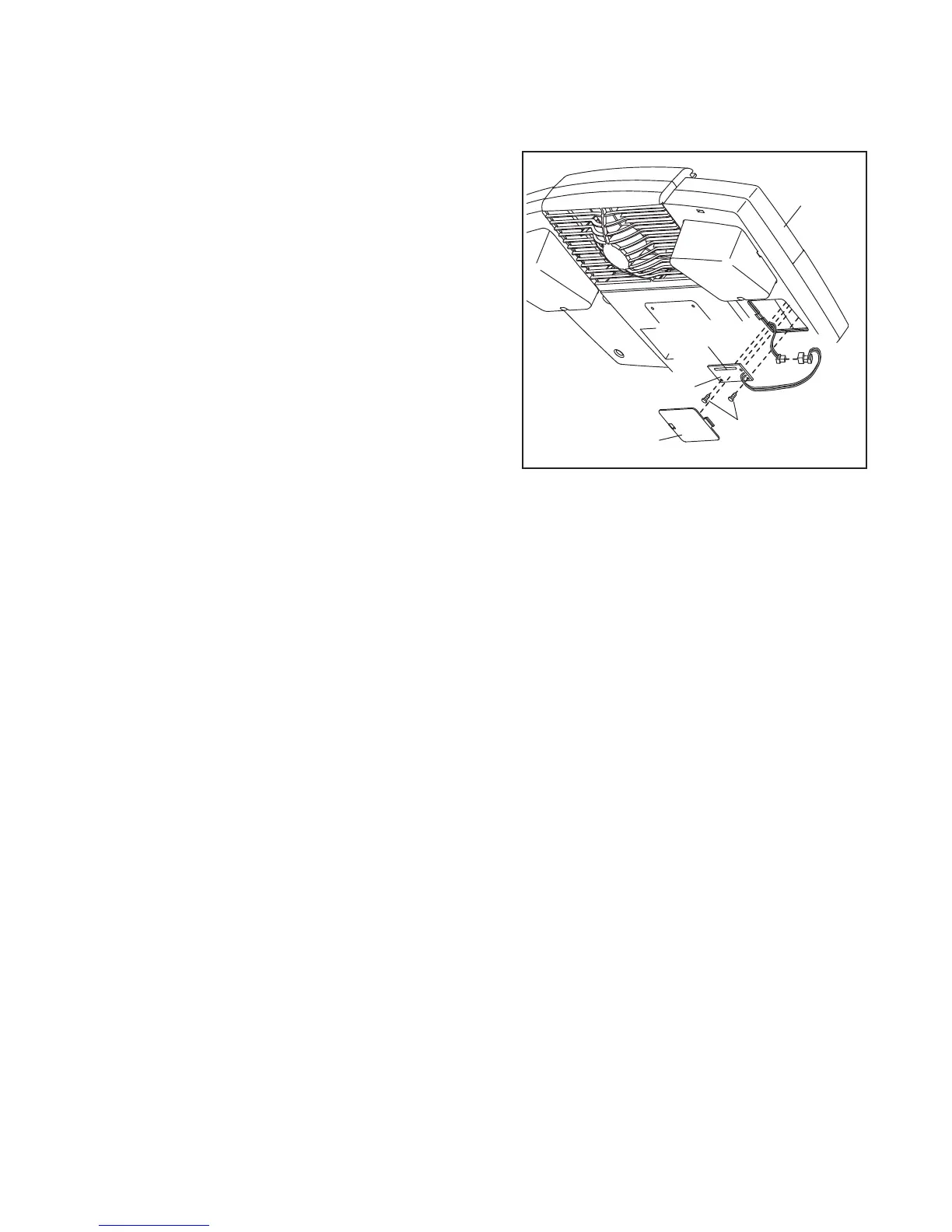

2. Hold the receiver in the position shown, with the small
cylinder at the top. Using the two screws included with
the chest pulse sensor, attach the receiver to the two
plastic posts (not shown) inside the access opening in
the back of the Console (17).
3. Connect the wire on the receiver to the indicated wire
on the Console (17). Make sure that the connectors on
the wires snap together. Discard the other wires includ-
ed with the chest pulse sensor.
4. Reattach the access cover to the Console (17).
Screws
17
Cylinder
Receiver
Access Cover
