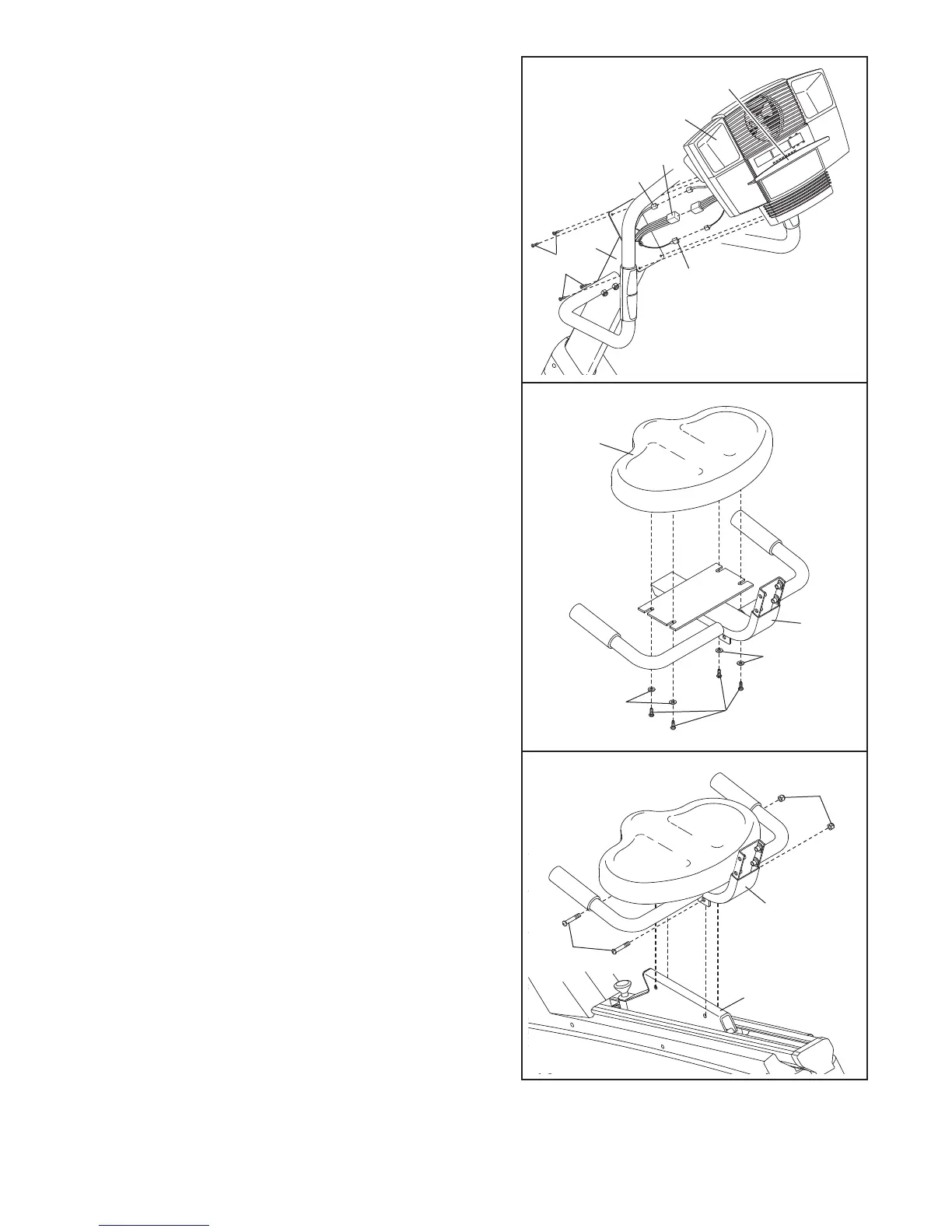

Attach the Seat Frame (7) to the Seat Carriage (11)
with two M10 x 52mm Button Bolts (48) and two M10
Nylon Locknuts (63).
63
7
1
1
6. Attach the Seat (9) to the Seat Frame (7) with four 1/4”
x 16mm Button Screws (59) and four M8 Washers (60).
7
59
60
60
9
6
7
48
5. Have another person hold the Console (4) near the
Upright (2).
Connect the Wire Harness (43) to the wire harness on
the Console (4). Connect the Pulse W
ire (3) to the
pulse wire on the Console. Next, locate the ground
wire that is connected with a screw to the Upright (2).
Connect the ground wire to the smallest wire on the
Console.
Carefully insert all excess wiring down into the Upright
(2). Attach the Console (4) to the Upright with four M4
x 16mm Screws (57).
Be careful to avoid pinching
the wires. Next, press the bookrack onto the Console
in the indicated location.
4
Ground Wire
2
57
43
3
5
Do not pinch
the wires
during this step.
Bookrack
To Next Page
