10. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over
. Place a mat beneath the exercise cycle to protect
the floor
.
9. Identify the Left Pedal (22), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the
Left Pedal counterclockwise into the Left Crank Arm
(24). Tighten the Right Pedal (not shown) clockwise
into the Right Crank Arm. Important: Tighten both
Pedals as firmly as possible. After using the
exercise cycle for one week, retighten the
Pedals. For best performance, the Pedals must
be kept tightened.
Identify the Left Pedal Strap (25), which is marked
with an “L.” Attach the Left Pedal Strap to the Left
Pedal (22), and adjust it to the desired position.
Attach and adjust the Right Pedal Strap (not shown)
in the same way.
9
22
24
25

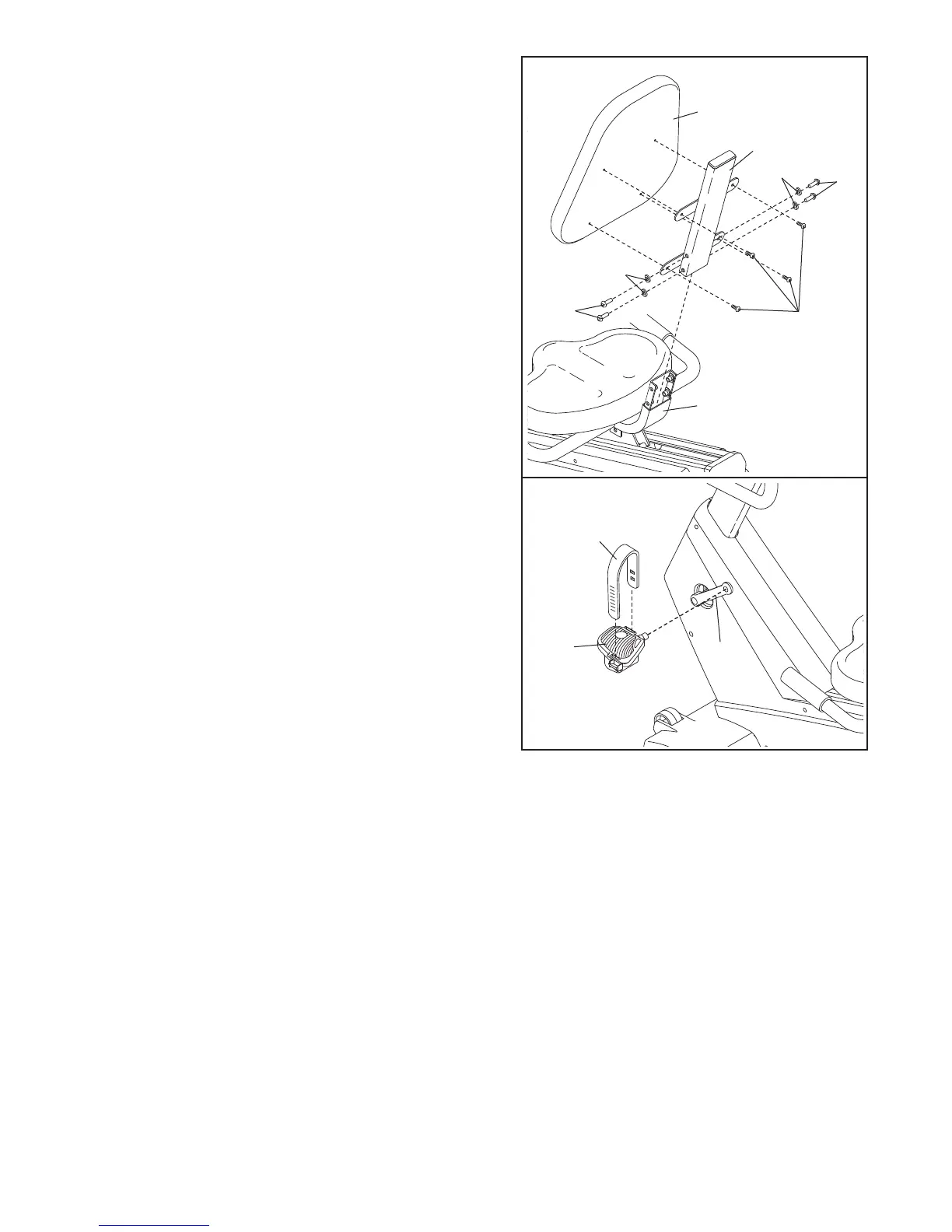

8. Attach the Backrest (62) to the Backrest Frame (42)
with four 1/4” x 16mm Button Screws (59).
Slide the Backrest Frame (42) onto the Seat Frame
(7).
Attach the Backrest Frame with four M8 x 25mm
Button Screws (61) and four M8 Split Washers (55).
62
7
59
61
55
55
61
42
8
