25

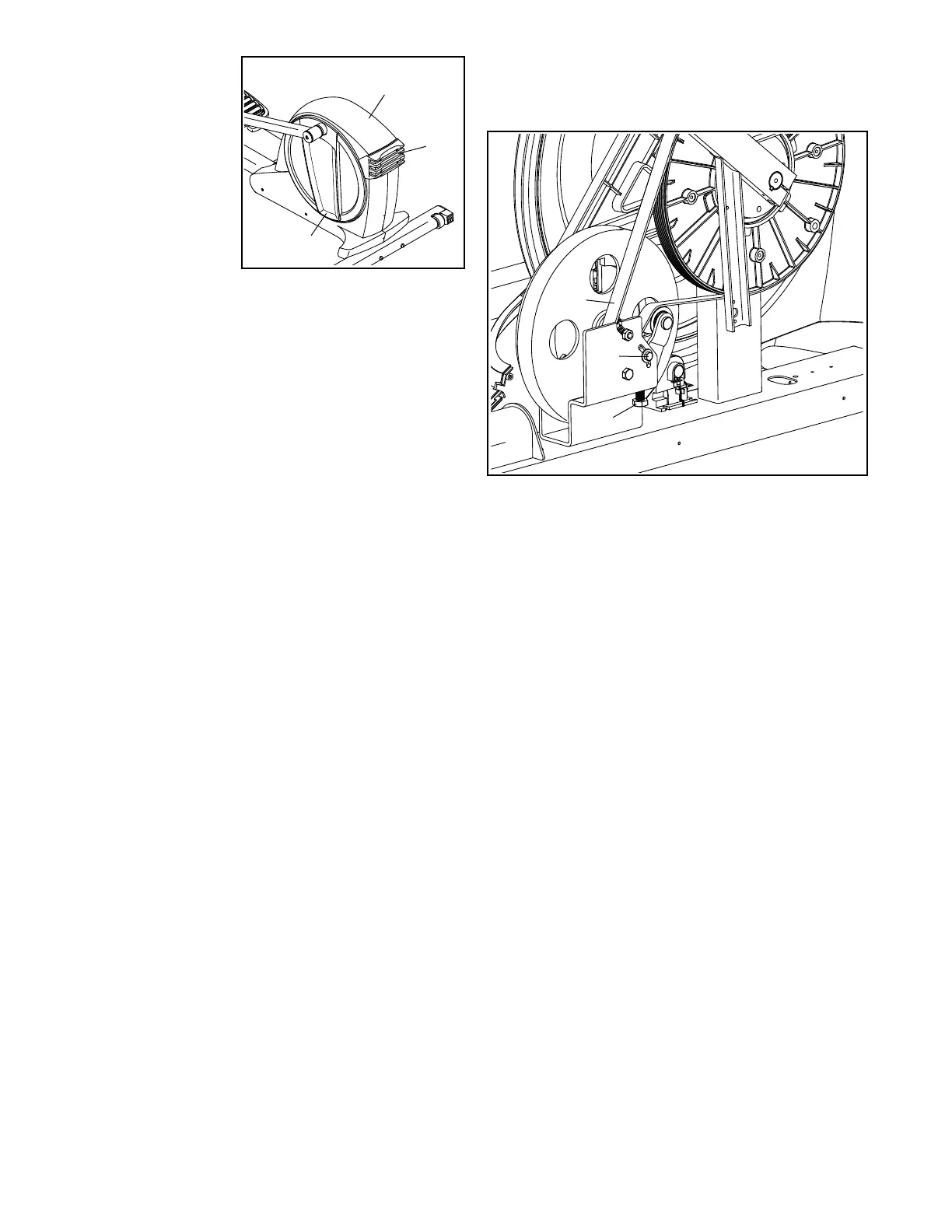

Next, remove the
four M4 x 16mm
Screws (not
shown) from the
Large Storage
Foot (27), and
remove the Large
Storage Foot.
Next, remove the
two M4 x 16mm
Screws (not
shown) from the
Top Shield (37),
and then use a standard screwdriver to pry the Top
Shield upward off the elliptical. Then, pry the left Pedal
Disc (36) off the elliptical.
See EXPLODED DRAWING C on page 31. Identify
the Left and Right Shields (44, 45). Remove all of the
M4 x 16mm Screws (61) and M4 x 38mm Screws (64)
from the Left and Right Shields. Make sure to note
which size Screw you remove from each hole.
Then, carefully remove the Left Shield.
Next, loosen the Idler Screw (97). Tighten the Idler
Adjustment Screw (72) until the Drive Belt (46) is tight.
Then, retighten the Idler Screw.
When you are finished, reattach all of the parts that
you removed. Then, plug in the power adapter.
46
72
97
37
36
27
To Next Page
